Various body parts for BMW 3 Series E46 M3 (2002)

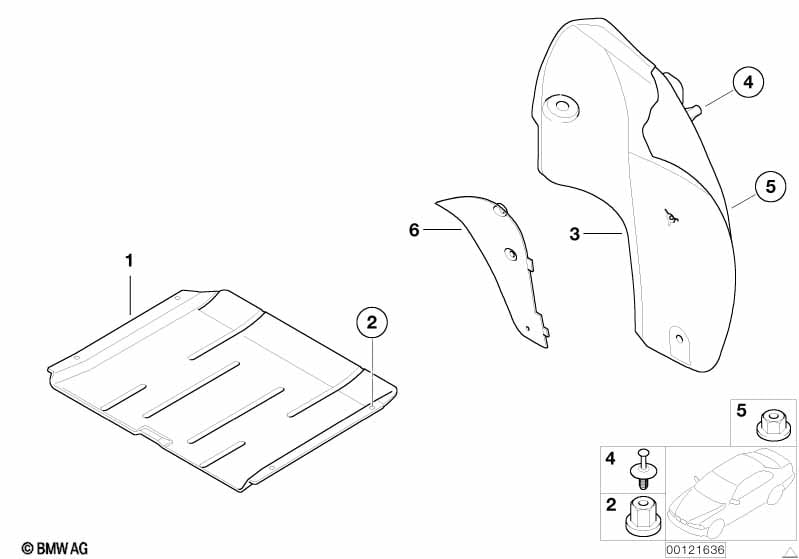

This Various body parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air guide | 1 | 51487894172 | $35.32 | Shop at ECS Tuning | |||||
| 02 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Covering left | 1 | 51712695667 | $13.22 | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 02/2002 | 51717895936 | $22.66 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet | 2 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 05 | Plastic nut | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 51717895768 | $22.68 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Various body parts?
- This technical diagram illustrates the Various body parts within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Air guide (Part #51487894172).
- Which models use the hardware listed in this Various body parts?
- The hardware and components featured in the Various body parts are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Air guide (51487894172) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various body parts assembly?
- Each item in the Various body parts corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Air guide by locating its position on the schematic, which then links to the official BMW part number 51487894172 for the Vehicle trim section.
