M cover for rocker panel / wheel arch for BMW 3 Series E46 320Ci (2006)

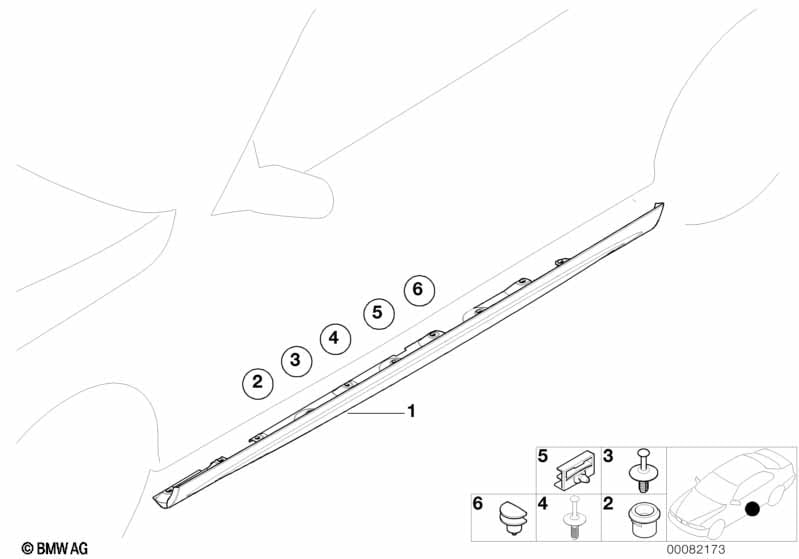

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | - M - | 1 | 51717893119 | $144.34 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | - M - | 1 | 51717893120 | $144.34 | +core | Shop at ECS Tuning | |||
| 01 | M sill strip, painted, left | CODE - UNI/MET. | 1 | 51710026629 | $332.57 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | M sill strip, painted, right | CODE - UNI/MET. | 1 | 51710026630 | $332.57 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 02 | Grommet, green | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | GRAU | 2 | 51118174184 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Clamp | NATUR | 11 | 51718184574 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Plug | M TECHNIC | 1 | 51162239737 | $1.28 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
