Mirror glas, M wing mirror for BMW 3 Series E46 M3 (2002)
This Mirror glas, M wing mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

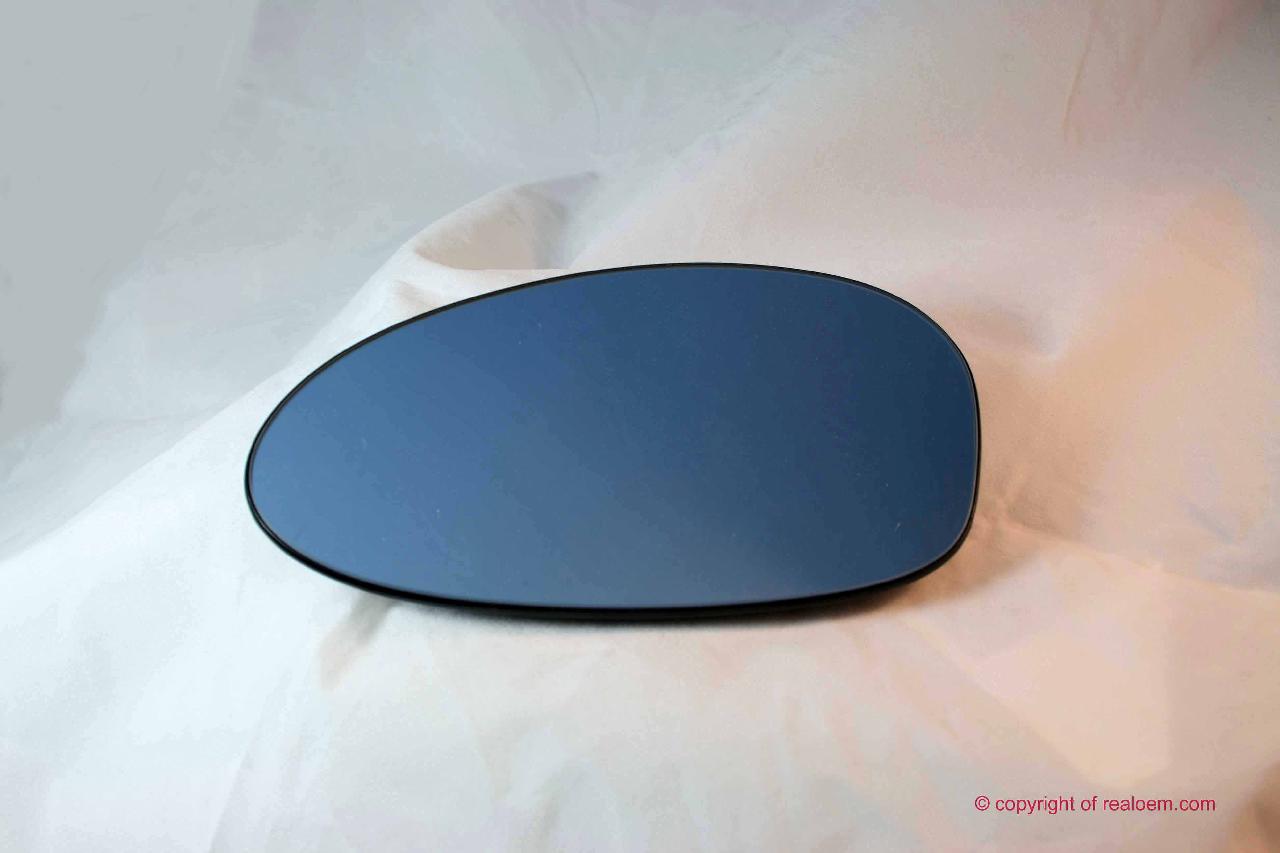

| 01 | Mirror glas heated plane left | BLAU | 1 | 07/2004 | 51167157247 | $62.06 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Adapter lead, mirror heating | 1 | 07/2004 | 51167836442 | $7.97 | Shop at ECS Tuning | ||||

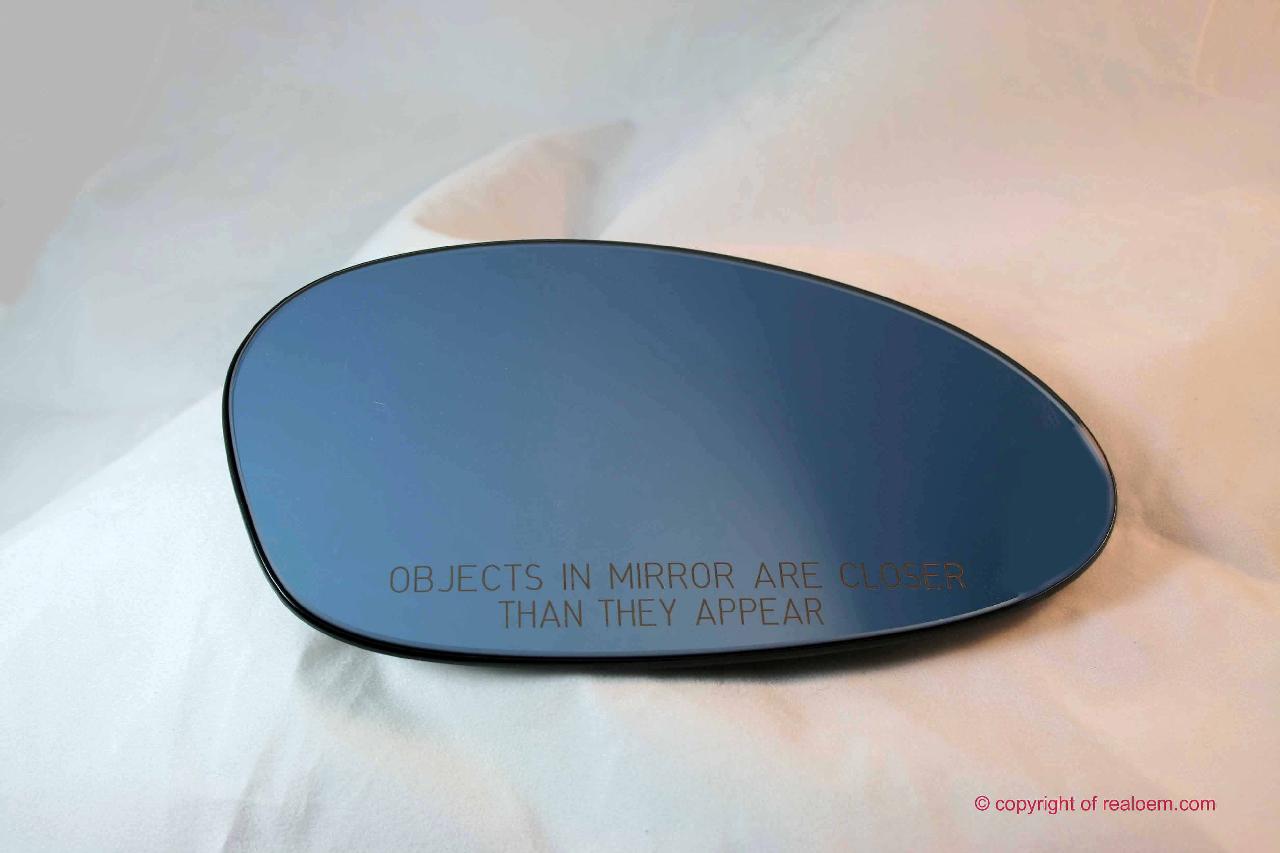

| 03 | Mirror glas heated convex right | BLAU | 1 | 07/2004 | 51167157244 | $84.32 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Adapter lead, mirror heating | 1 | 07/2004 | 51167836442 | $7.97 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
