Rear spoiler for BMW 3 Series E46 M3 (2002)

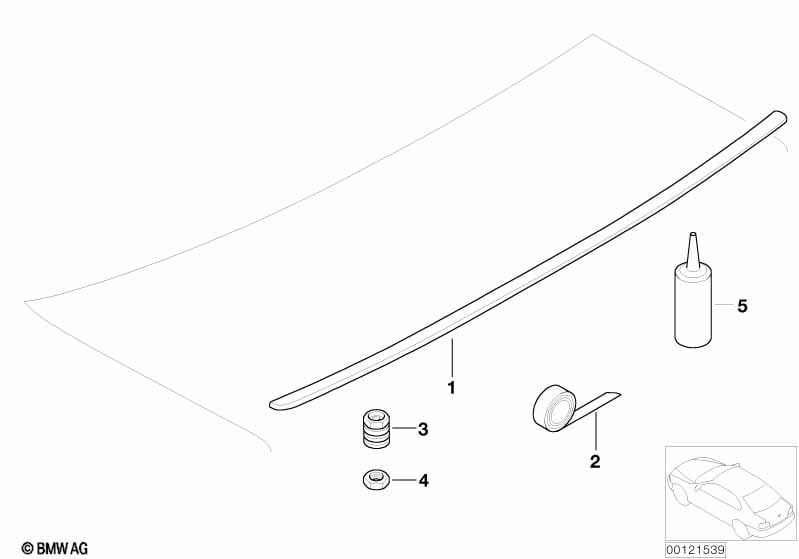

This Rear spoiler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Painted rear spoiler | CODE - UNI/MET. | 1 | 51710018269 | $311.36 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | M spoiler rear, primed | 1 | 51717893671 | $131.95 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive tape | 0,8X22 | 1 | 51717901676 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive tape | 0,8X22 | 1 | 51717901676 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Rear spoiler?
- This technical diagram illustrates the Rear spoiler within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Painted rear spoiler (Part #51710018269).
- Which models use the hardware listed in this Rear spoiler?
- The hardware and components featured in the Rear spoiler are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Painted rear spoiler (51710018269) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear spoiler assembly?
- Each item in the Rear spoiler corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Painted rear spoiler by locating its position on the schematic, which then links to the official BMW part number 51710018269 for the Vehicle trim section.
