Reinforcement for body, front for BMW 5 Series G30 M550dX (2020)

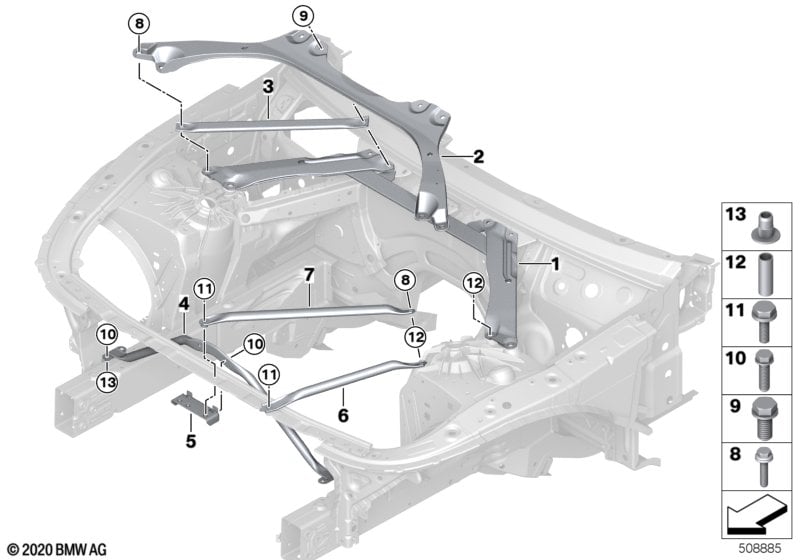

This Reinforcement for body, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 M550dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Strut brace, bulkhead | 1 | 51617453800 | Shop at ECS Tuning | ||||||
| 06 | Strut tower brace, left | 1 | 51617329869 | Shop at ECS Tuning | ||||||
| 06 | Strut tower brace, right | 1 | 51617329870 | Shop at ECS Tuning | ||||||
| 08 | Countersunk head screw with washer | M10X45 | 6 | 51716966566 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M10X25-10.9ZNS3 | 4 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X30 10.9 ZNS3 | 2 | 07119907857 | Shop at ECS Tuning | |||||
| 12 | Threaded plug | M10X30 | 6 | 07129909659 | Shop at ECS Tuning | |||||
| 13 | Blind rivet nut, flat headed | M8 | X | 33306858828 | Shop at ECS Tuning |
