M Trim, rear for BMW 5 Series G30 530d (2020)

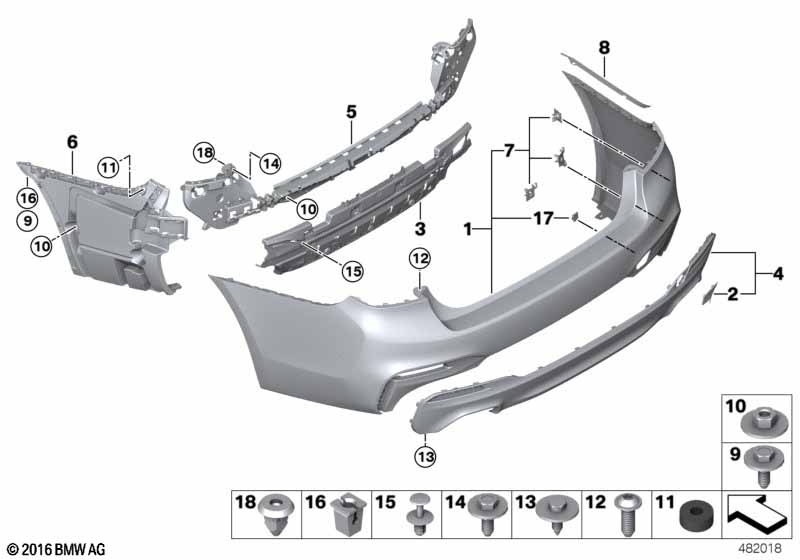

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | -M- | 1 | 51128073725 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B4E1F7 | Shop at ECS Tuning | |||||
| 02 | Flap, towing eye, primed | -M- | 1 | 51128064713 | Shop at ECS Tuning | |||||
| 03 | Exhaust support | -M- | 1 | 51128064714 | Shop at ECS Tuning | |||||
| 04 | Cover, bumper, rear | -M- | 1 | 51128064718 | Shop at ECS Tuning | |||||
| 05 | Guide, center rear | -M- | 1 | 51128067762 | Shop at ECS Tuning | |||||
| 06 | Guide, rear left | -M- | 1 | 51128066721 | Shop at ECS Tuning | |||||
| 06 | Guide, rear right | -M- | 1 | 51128066722 | Shop at ECS Tuning | |||||
| 07 | Kit, mount for PDC/PMA sensor, rear | -M- | 1 | 51128073862 | Shop at ECS Tuning | |||||
| 08 | Left protection foil | 1 | 51127385755 | Shop at ECS Tuning | ||||||
| 08 | Right protection foil | 1 | 51127385756 | Shop at ECS Tuning | ||||||
| 09 | Hex head screw | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 10 | Combination nut | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 11 | Gasket ring | 4 | 51127256354 | Shop at ECS Tuning | ||||||
| 12 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 15 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 17 | Clip | M PDC | 1 | 61137849481 | Shop at ECS Tuning | |||||
| 18 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
