Trim panel, backrest part for BMW M1 E26 M1 (1981)

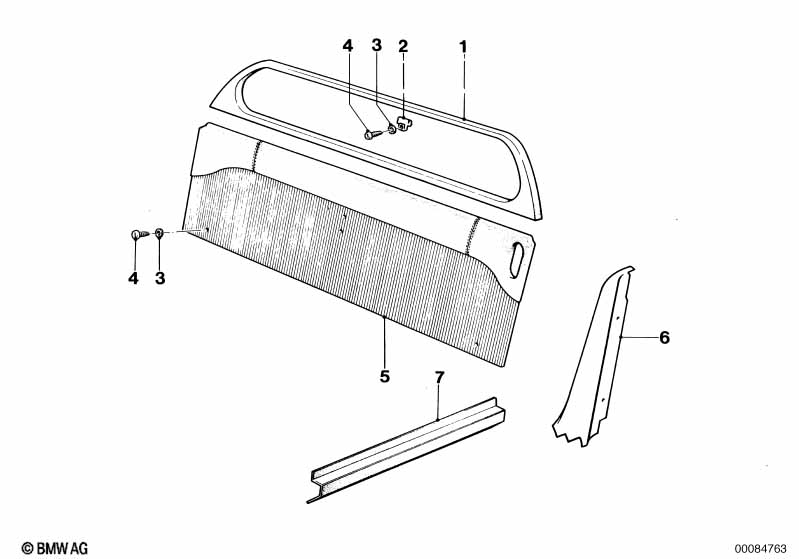

This Trim panel, backrest part technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | SCHWARZ | 1 | 51432167049 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trim panel | BRAUN | 1 | 51432167766 | $75.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Cap left | 1 | 51431852103 | $1.68 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cap right | 1 | 51431852104 | $1.80 | Shop at ECS Tuning | |||||
| 03 | Washer | 9 | 41142166143 | ENDED | Shop at ECS Tuning | |||||
| 05 | Trim panel | SCHWARZ | 1 | 51432167023 | $450.86 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim panel | BRAUN | 1 | 51432167770 | $455.33 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | SCHWARZ | 1 | 51432167039 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering right | SCHWARZ | 1 | 51432167040 | $198.65 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | BRAUN | 1 | 51432167763 | $189.72 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | BRAUN | 1 | 51432167764 | $189.72 | ENDED | Shop at ECS Tuning | |||
| 07 | Sill strip left | 1 | 51432167063 | $49.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sill strip right | 1 | 51432167064 | $49.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
