Outside mirror for BMW 3 Series E46 318ti (2004)

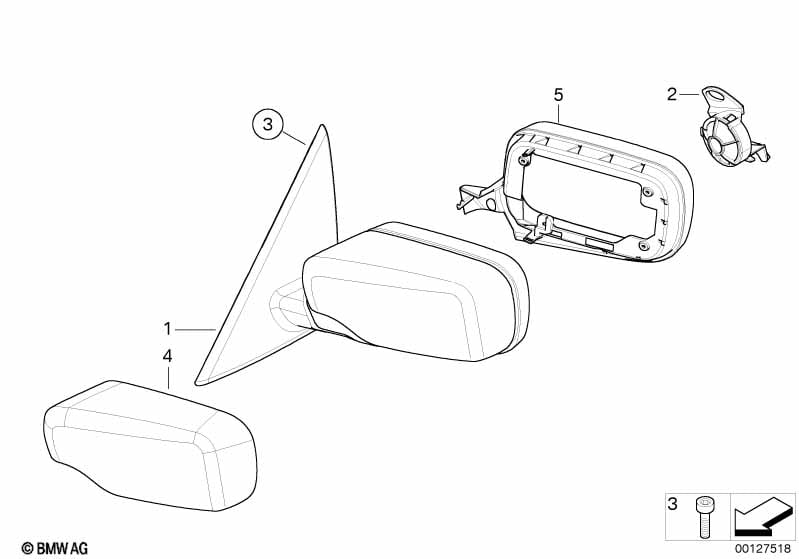

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | heated outside mirror, left | 1 | 51167011939 | $183.02 | +core | Shop at ECS Tuning | ||||
| 01 | heated outside mirror, right | 1 | 51167011940 | $186.98 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror |
S313A=Yes |
|||||||||
| 01 | heated outside mirror, left | 1 | 51167011951 | $228.78 | +core | Shop at ECS Tuning | ||||
| 01 | heated outside mirror, right | 1 | 51167011952 | $228.78 | +core | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2003 | 51167153189 | ENDED | Shop at ECS Tuning | ||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2003 | 51167153190 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=Yes S459A=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | 1 | 03/2003 | 51167153199 | ENDED | Shop at ECS Tuning | ||||
| 01 | Heated outside mirror, memory bus, right | 1 | 03/2003 | 51167153200 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 02 | Actuator left | 1 | 67138362421 | $84.48 | Shop at ECS Tuning | |||||
| 02 | Actuator right | 1 | 67138362422 | $84.48 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Rep.kit f memory drive driver's side | 1 | 03/2003 | 67136946313 | $199.97 | Shop at ECS Tuning | ||||
| 02 | Rep.kit f memory drive passenger side | 1 | 03/2003 | 67136946314 | $199.97 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | 3 | 07147196375 | $0.64 | Shop at ECS Tuning | |||||
| 04 | Covering primend left | 1 | 51168238375 | $48.89 | Shop at ECS Tuning | |||||
| 04 | Covering primend right | 1 | 51168238376 | $48.89 | Shop at ECS Tuning | |||||
| 04 | Cover cap, painted, left | CODE - UNI/MET. | 1 | 51169071286 | $171.41 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 04 | Cover cap, painted, right | CODE - UNI/MET. | 1 | 51169071287 | $171.41 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 05 | Rep.set f left exterior mirror frame | 1 | 51168269025 | $35.93 | Shop at ECS Tuning | |||||
| 05 | Rep.set f right exterior mirror frame | 1 | 51168269026 | $35.93 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
