Instrument panel, door, front for BMW 7 Series E66 760Li (2005)

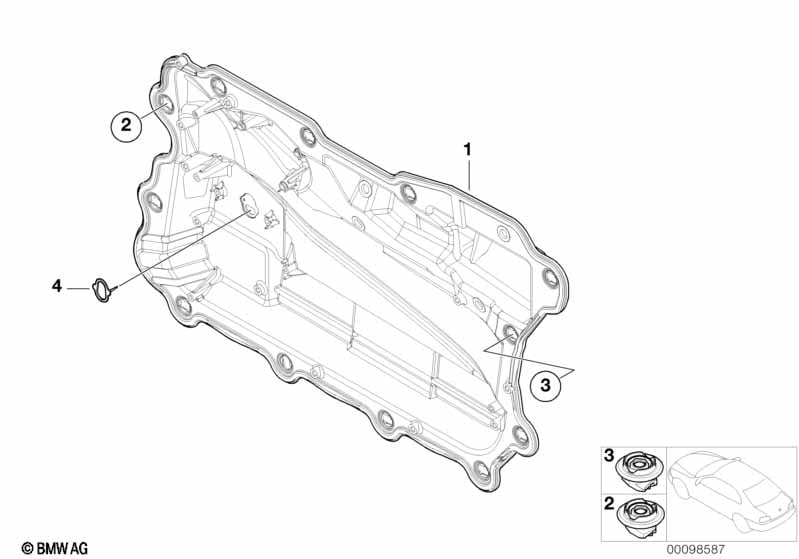

This Instrument panel, door, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, door front left | 1 | 03/2005 | 51417181059 | $144.73 | Shop at ECS Tuning | ||||
| 01 | Carrier, door front right | 1 | 03/2005 | 51417181060 | $144.73 | Shop at ECS Tuning | ||||
| 02 | Quick fastener | 1,8MM | 16 | 03/2005 | 51417026270 | $3.66 | Shop at ECS Tuning | |||
| 03 | Quick fastener | 0,8MM | 16 | 03/2005 | 51417007118 | $3.66 | Shop at ECS Tuning | |||
| 04 | Gasket, pressure sensor | 2 | 03/2005 | 51417038097 | $6.76 | Shop at ECS Tuning |
