Storing partition mounting parts for BMW 3 Series E46 330xd (2001)

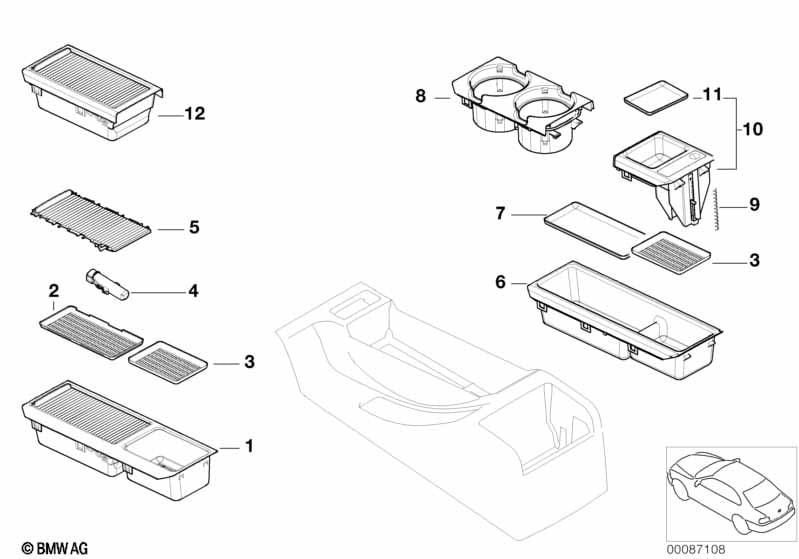

This Storing partition mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insert with roller cover | SCHWARZ | 1 | 51167038323 | $42.83 | ENDED | Shop at ECS Tuning | |||
| 01 | Insert with roller cover | GRAU | 1 | 51167038324 | $42.83 | ENDED | Shop at ECS Tuning | |||
| 01 | Insert with roller cover | HELLBEIGE | 1 | 51167038325 | $42.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor carpet, front | SCHWARZ | 1 | 51167038328 | $7.62 | Shop at ECS Tuning | ||||
| 02 | Floor carpet, front | HELLBEIGE | 1 | 51167038329 | $7.62 | Shop at ECS Tuning | ||||
| 03 | Rear tray | SCHWARZ | 1 | 51168242846 | $5.87 | Shop at ECS Tuning | ||||
| 03 | Rear tray | HELLBEIGE | 1 | 51168242847 | $5.87 | Shop at ECS Tuning | ||||
| 04 | Pin holder | SCHWARZ | 1 | 51167040608 | $3.25 | Shop at ECS Tuning | ||||
| 05 | Roller cover | SCHWARZ | 1 | 51167038333 | $12.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Roller cover | HELLBEIGE | 1 | 51167038334 | $12.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Console insert | SCHWARZ | 1 | 51168217927 | $60.12 | Shop at ECS Tuning | ||||
| 06 | Console insert | HELLBEIGE | 1 | 51168217929 | $60.12 | Shop at ECS Tuning | ||||
| 06 | Console insert | GRAU | 1 | 51168248498 | $60.12 | Shop at ECS Tuning | ||||
| 07 | Front tray | SCHWARZ | 1 | 51168242843 | $6.58 | Shop at ECS Tuning | ||||
| 07 | Front tray | HELLBEIGE | 1 | 51168242844 | $6.95 | Shop at ECS Tuning | ||||
| 08 | Cup holder | SCHWARZ | 1 | 51168217953 | $33.50 | Shop at ECS Tuning | ||||
| 08 | Cup holder | HELLBEIGE | 1 | 51168217955 | $33.50 | Shop at ECS Tuning | ||||
| 08 | Cup holder | GRAU | 1 | 51168248504 | $33.50 | +core | Shop at ECS Tuning | |||
| 09 | Tension spring | 1 | 51168242861 | $1.10 | Shop at ECS Tuning | |||||
| 10 | Oddments tray with coinbox | SCHWARZ | 1 | 51168217957 | $29.50 | +core | Shop at ECS Tuning | |||
| 10 | Oddments tray with coinbox | HELLBEIGE | 1 | 51168217959 | $32.00 | Shop at ECS Tuning | ||||
| 10 | Oddments tray with coinbox | GRAU | 1 | 51168248505 | $32.00 | Shop at ECS Tuning | ||||
| 11 | Cup | SCHWARZ | 1 | 51168242859 | $13.55 | Shop at ECS Tuning | ||||
| 11 | Cup | HELLBEIGE | 1 | 51168242860 | $13.82 | Shop at ECS Tuning | ||||
| 12 | Insert with roller cover | SCHWARZ | 1 | 51167043093 | $41.75 | ENDED | Shop at ECS Tuning | |||
| 12 | Insert with roller cover | GRAU | 1 | 51167043094 | $41.75 | ENDED | Shop at ECS Tuning | |||
| 12 | Insert with roller cover | HELLBEIGE | 1 | 51167043095 | $41.75 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
