Storing partit.,mounting parts/teleph. for BMW 3 Series E46 330d (2004)

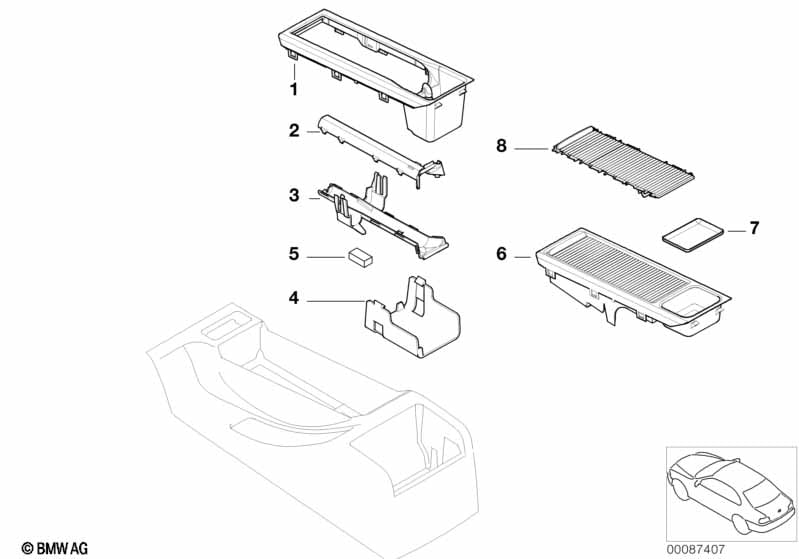

This Storing partit.,mounting parts/teleph. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insert for telephone console | SCHWARZ | 1 | 51167000480 | $33.22 | Shop at ECS Tuning | ||||
| 01 | Insert for telephone console | GRAU | 1 | 51167000481 | $33.22 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Insert for telephone console | HELLBEIGE | 1 | 51167000482 | $33.22 | +core | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Insert for telephone console | SCHWARZ | 1 | 51167025295 | $34.60 | +core | Shop at ECS Tuning | |||
| 01 | Insert for telephone console | GRAU | 1 | 51167025296 | $34.60 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Insert for telephone console | HELLBEIGE | 1 | 51167025297 | $34.60 | +core | Shop at ECS Tuning | |||
| 02 | Upper part of cable guide | SCHWARZ | 1 | 51167000469 | $7.92 | Shop at ECS Tuning | ||||
| 03 | Bottom part of cable guide | SCHWARZ | 1 | 51167000476 | $11.40 | Shop at ECS Tuning | ||||
| 04 | Holder, interface | D-NETZ | 1 | 51167000483 | $17.15 | Shop at ECS Tuning | ||||
| 05 | Sealing strip | 5 | 51411970578 | $0.22 | Shop at ECS Tuning | |||||
| For vehicles with Car phone with cordless receiver |
S630A=Yes |
|||||||||
| 06 | Console insert | SCHWARZ | 1 | 51167039180 | $38.02 | Shop at ECS Tuning | ||||
| 06 | Console insert | GRAU | 1 | 51167039181 | $38.02 | ENDED | Shop at ECS Tuning | |||
| 06 | Console insert | HELLBEIGE | 1 | 51167039182 | $38.02 | Shop at ECS Tuning | ||||
| 07 | Cup | SCHWARZ | 1 | 51168242859 | $13.55 | Shop at ECS Tuning | ||||
| 07 | Cup | HELLBEIGE | 1 | 51168242860 | $13.82 | Shop at ECS Tuning | ||||
| 08 | Roller cover | SCHWARZ | 1 | 51167039184 | $7.57 | Shop at ECS Tuning | ||||
| 08 | Roller cover | HELLBEIGE | 1 | 51167039185 | $7.15 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
