Interior moldings for BMW 5 Series E39 530i (2003)

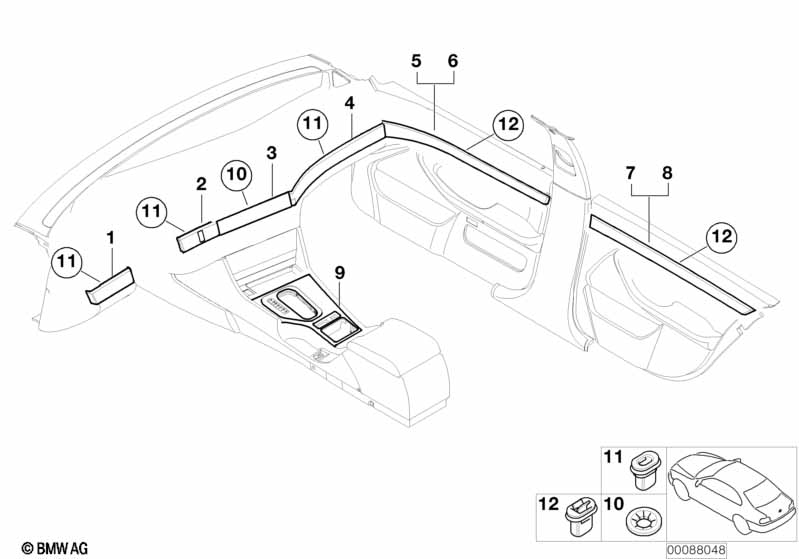

This Interior moldings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left finisher | GITTERGALVANIK | 1 | 09/2001 | 51457050516 | ENDED | Shop at ECS Tuning | |||
| 02 | Left centre finisher | GITTERGALVANIK | 1 | 09/2001 | 51457050532 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Left centre finisher | GITTERGALVANIK | 1 | 09/2001 | 51457050533 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Centre finisher | GITTERGALVANIK | 1 | 09/2001 | 51457050515 | ENDED | Shop at ECS Tuning | |||
| 04 | Finisher, dashboard, right | GITTERGALVANIK | 1 | 09/2001 | 51457050531 | ENDED | Shop at ECS Tuning | |||
| 05 | Decorative strip for door, front, left | GITTERGALVANIK | 1 | 09/2001 | 51417050887 | ENDED | Shop at ECS Tuning | |||
| 06 | Decorative strip for door, front, right | GITTERGALVANIK | 1 | 09/2001 | 51417050888 | ENDED | Shop at ECS Tuning | |||
| 07 | Decorative strip for door, rear, left | GITTERGALVANIK | 1 | 09/2001 | 51427050889 | ENDED | Shop at ECS Tuning | |||
| 08 | Decorative strip for door, rear, right | GITTERGALVANIK | 1 | 09/2001 | 51427050890 | ENDED | Shop at ECS Tuning | |||
| 09 | Center console insert, centre | GITTERGALVANIK | 1 | 09/2001 | 51167050394 | ENDED | Shop at ECS Tuning | |||
| 10 | Spring nut | 3 | 09/2001 | 51458220836 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Insert | X | 09/2001 | 51457000912 | $1.23 | Shop at ECS Tuning | ||||
| 12 | Insert | X | 09/2001 | 51417001629 | $1.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
