Sound insulating rear for BMW 3 Series E46 318ti (2004)

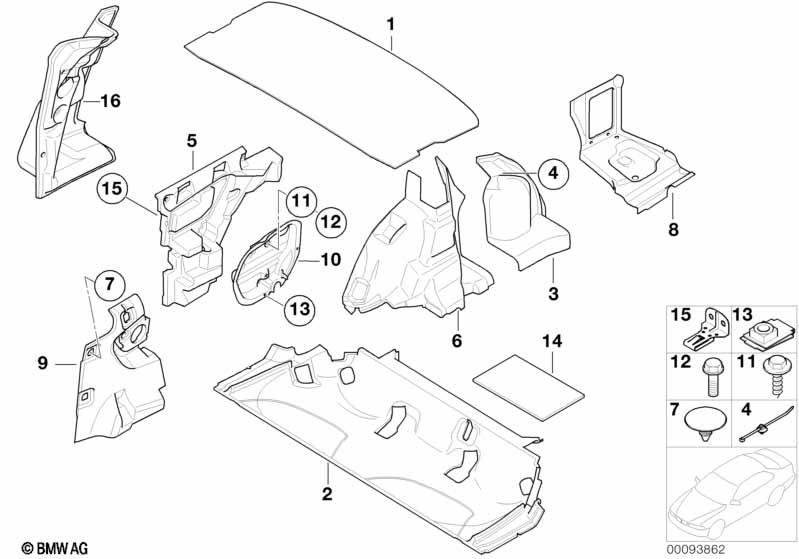

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating roof rear | 1 | 51488229734 | $24.47 | Shop at ECS Tuning | |||||
| 02 | Sound insulation floor rear | 1 | 51488252759 | $52.67 | Shop at ECS Tuning | |||||
| 03 | Sound insulating wheel housing rear left | 1 | 51488252761 | Shop at ECS Tuning | ||||||
| 03 | Sound insulating wheel housing rear rig. | 1 | 51488252762 | Shop at ECS Tuning | ||||||
| 04 | Cable strap with bracket | Ø=7,9 / L=300 | 2 | 61138384831 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Sound insulating lateral trim panel left | 1 | 51487033675 | Shop at ECS Tuning | ||||||
| 05 | Sound insulating lateral trim panelrigh | 1 | 51487033676 | Shop at ECS Tuning | ||||||
| 06 | Sound insulating wheel housing rear left | 1 | 51488268145 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulating wheel housing rear rig. | 1 | 51488268146 | Shop at ECS Tuning | ||||||
| 07 | Clip | D=30MM | 2 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 08 | Sound insulation trunk left | 1 | 51488266847 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sound insulation trunk right | 2 | 51488266848 | ENDED | Shop at ECS Tuning | |||||
| 09 | Sound insulating lateral trim panel left | 1 | 51487033673 | Shop at ECS Tuning | ||||||
| 09 | Sound insulating lateral trim panelrigh | 1 | 51487033674 | Shop at ECS Tuning | ||||||
| 10 | Cover left | 1 | 51487000955 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cover right | 1 | 51487000956 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 10 | Cover left | 1 | 51487016559 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cover right | 1 | 51487016560 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex head screw | ST4,8X16-C-Z1 | 8 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 12 | Hex bolt | M6X18 | 10 | 07119904058 | $0.53 | Shop at ECS Tuning | ||||
| 13 | C-clip nut | M6 | 10 | 07142452506 | Shop at ECS Tuning | |||||
| 14 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 15 | Grip bracket | 2 | 51218156538 | $0.92 | Shop at ECS Tuning | |||||
| For vehicles with Vent window, electric, rear |
S362A=Yes |
|||||||||
| 16 | Sound insulating left | 1 | 51487063927 | ENDED | Shop at ECS Tuning | |||||
| 16 | Sound insulating right | 1 | 51487063928 | ENDED | Shop at ECS Tuning | |||||
