Trim cover, rear for BMW 7 Series E66 760Li (2005)

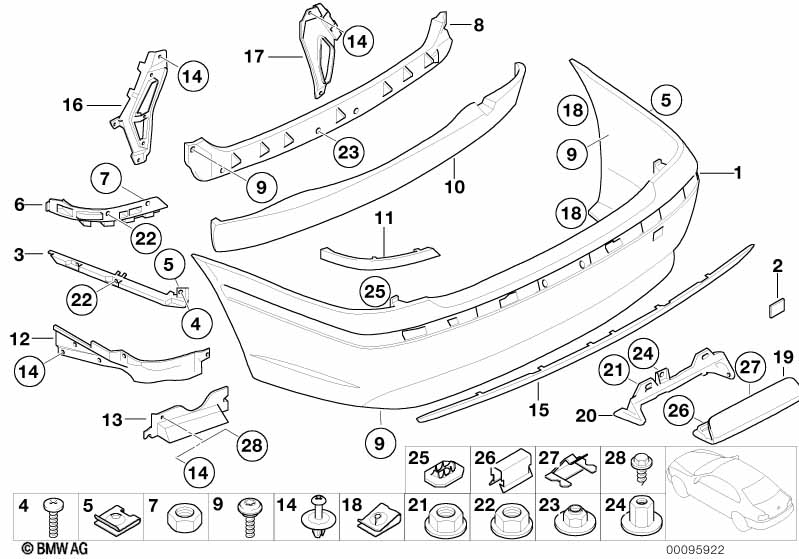

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 03/2005 | 51127042697 | $666.63 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, primed | 1 | 03/2005 | 51127042708 | $12.39 | Shop at ECS Tuning | ||||
| 03 | Mount, lateral rear left | 1 | 03/2005 | 51128245313 | $11.97 | Shop at ECS Tuning | ||||
| 03 | Mount, lateral rear right | 1 | 03/2005 | 51128245314 | $11.97 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,8X16MM | 6 | 03/2005 | 07142756133 | $0.29 | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,8-13-ZNS3 | 6 | 03/2005 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,8-16-ZNS3 | 2 | 03/2005 | 07129904243 | $0.36 | Shop at ECS Tuning | |||
| 06 | Mount, rear left | 1 | 03/2005 | 51127012289 | $19.50 | Shop at ECS Tuning | ||||
| 06 | Mount, rear right | 1 | 03/2005 | 51127012290 | $19.50 | Shop at ECS Tuning | ||||
| 07 | Hex nut | X | 03/2005 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Guide, center rear | 1 | 03/2005 | 51128223270 | $50.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex head screw with washer | ST 4,8X25 ZNS3 | 2 | 03/2005 | 07119905241 | $0.27 | Shop at ECS Tuning | |||
| 09 | Fillister head screw | X | 03/2005 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Shock absorber, rear | 1 | 03/2005 | 51127015004 | $44.79 | +core | Shop at ECS Tuning | |||
| 11 | Finisher, rear light, primed left | 1 | 03/2005 | 51127156771 | $25.34 | Shop at ECS Tuning | ||||
| 11 | Finisher, rear light, primed right | 1 | 03/2005 | 51127156772 | $25.34 | Shop at ECS Tuning | ||||
| 12 | Heat insulation, cross rear left | 1 | 03/2005 | 51127042125 | $25.28 | Shop at ECS Tuning | ||||
| 13 | Heat insulation, cross rear left | 1 | 03/2005 | 51127173577 | $25.28 | +core | Shop at ECS Tuning | |||
| 14 | Expanding rivet | D=7,5MM | X | 03/2005 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| 15 | Cover, rear bottom | 1 | 03/2005 | 51127007848 | $26.44 | Shop at ECS Tuning | ||||
| 16 | Support left | 1 | 03/2005 | 51128245315 | $10.97 | Shop at ECS Tuning | ||||
| 17 | Support right | 1 | 03/2005 | 51127035418 | $10.97 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST 4,8-9-ZSN SW | X | 03/2005 | 07129900629 | $0.25 | Shop at ECS Tuning | |||
| 21 | Hex nut | M10-8-ZNS3 | 6 | 03/2005 | 07129904048 | $1.05 | Shop at ECS Tuning | |||
| 22 | Hex nut | BM6-8-ZNS3 | 6 | 03/2005 | 07129904870 | $0.36 | Shop at ECS Tuning | |||
| 22 | Hex nut | M6 | 6 | 03/2005 | 51717065987 | $0.79 | Shop at ECS Tuning | |||
| 23 | Self-locking hex nut | M6 | 4 | 03/2005 | 51128400432 | $0.79 | Shop at ECS Tuning | |||
| 24 | Plastic capnut with washer | D=18MM | 2 | 03/2005 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 24 | Plastic nut for coarse threaded pin | M6 | 2 | 03/2005 | 07147336362 | Shop at ECS Tuning | ||||
| 25 | Spacer sleeve | 2 | 03/2005 | 51127059057 | $0.48 | Shop at ECS Tuning | ||||
| 26 | Clamp | 2 | 03/2005 | 51121946136 | $0.79 | Shop at ECS Tuning | ||||
| 27 | Clamp | 4 | 03/2005 | 51127059054 | $0.50 | Shop at ECS Tuning | ||||
| 28 | Hex head screw with washer | ST4,8X16MM | 2 | 03/2005 | 07147129160 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
