Carrier, rear for BMW 7 Series E66 760Li (2005)

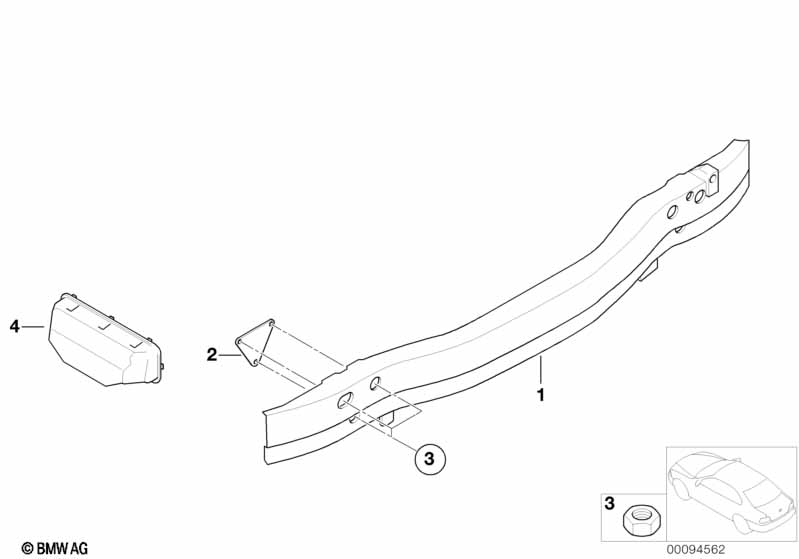

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 1 | 03/2005 | 51127015002 | +core | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 01 | Towing hitch, detachable | 1 | 03/2005 | 71606754744 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Carrier, bumper rear | 1 | 03/2005 | 51127015003 | $413.32 | +core | Shop at ECS Tuning | |||
| 02 | Sealing grommet | 2 | 03/2005 | 51127042123 | $1.77 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10-8-ZNS3 | 6 | 03/2005 | 07129904048 | $1.05 | Shop at ECS Tuning | |||
| 04 | Breather covering rear | 2 | 03/2005 | 64228386133 | $21.47 | Shop at ECS Tuning | ||||
| For vehicles with Rear display screen or DVD changer |
S603A=Yes S696A=Yes |
|||||||||
| 04 | Breather covering rear left | 1 | 03/2005 | 64226930307 | $25.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Rear display screen or DVD changer fitted only on the right |
S603A=Yes S696A=Yes |
|||||||||
| 04 | Breather covering rear | 1 | 03/2005 | 64228386133 | $21.47 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
