Door window lifting mechanism rear for BMW 5 Series G30 LCI 530iX (2022)

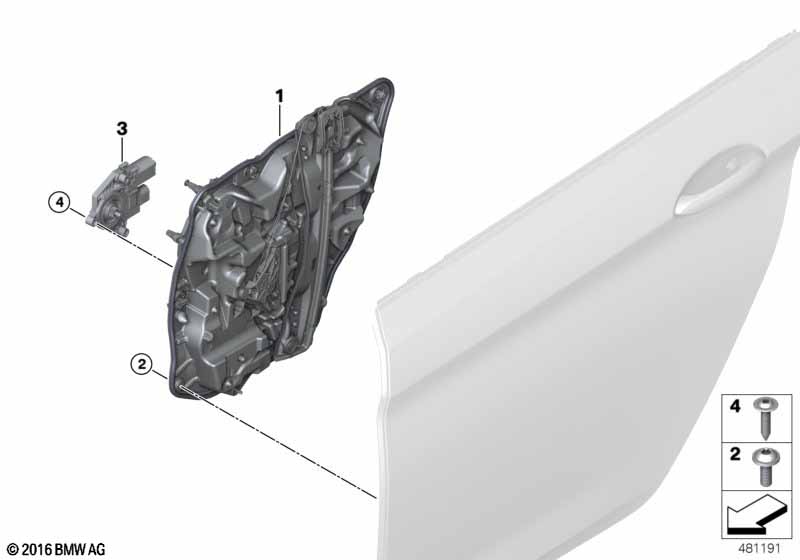

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, door rear left | 1 | 51337487087 | Shop at ECS Tuning | ||||||
| 01 | Carrier, door rear right | 1 | 51337487088 | Shop at ECS Tuning | ||||||
| 02 | Fillister head screw | M6 | 12 | 07147465017 | Shop at ECS Tuning | |||||
| Installed on left | ||||||||||
| 03 | Drive for window lifter, back | 1 | 51357455083 | ENDED | Shop at ECS Tuning | |||||
| 03 | Drive for window lifter, back | 1 | 61355A5C895 | Shop at ECS Tuning | ||||||
| Installed on right | ||||||||||
| 03 | Drive for window lifter, back | 1 | 51357455084 | ENDED | Shop at ECS Tuning | |||||
| 03 | Drive power window rear | 1 | 61355A5C896 | Shop at ECS Tuning | ||||||
| 04 | Torx-bolt for plastic material | ISA L=22MM | 6 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
