Trim, decor elements, front for BMW 4 Series F36 Gran Coupé LCI 425d (2016)

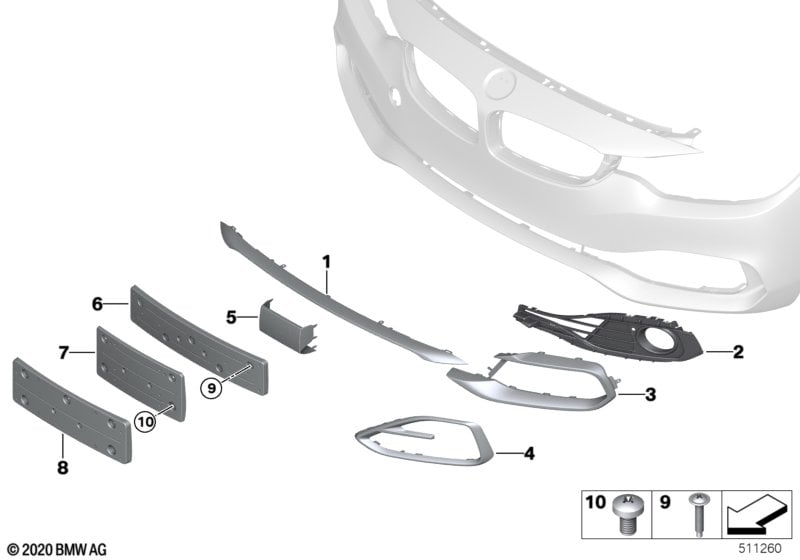

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 425d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sport Line and Active cruise control+Stop&Go function |
P7ACA=Yes S5DFA=Yes |
|||||||||
| 01 | Finisher, rod, center | SPORT LINE ACC | 1 | 51117435785 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Active cruise control+Stop&Go function |
P7ACA=Yes S5DFA=No |
|||||||||
| 01 | Finisher, rod, center | SPORT LINE | 1 | 51117432621 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium and Active cruise control+Stop&Go function |
P7S2A=Yes S3MBA=Yes S5DFA=No |
|||||||||
| 01 | Trim strip, center | LUXURY LINE | 1 | 51119491765 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium and Active cruise control+Stop&Go function |
P7S2A=Yes S3MBA=Yes S5DFA=Yes |
|||||||||
| 01 | Trim rod, center, left | ALU SATINIERT | 1 | 51119491767 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim rod, center, right | ALU SATINIERT | 1 | 51119491768 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium and Active cruise control+Stop&Go function |
P7S2A=Yes S3MBA=No S5DFA=No |
|||||||||
| 01 | Finisher, rod, center | LUXURY LINE | 1 | 51117432625 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium and Active cruise control+Stop&Go function |
P7S2A=Yes S3MBA=No S5DFA=Yes |
|||||||||
| 01 | Trim molding, center left | LUXURY LINE ACC | 1 | 51117435787 | Shop at ECS Tuning | |||||
| 01 | Trim molding, center right | LUXURY LINE ACC | 1 | 51117435788 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Luxury Line |
P7ACA=Yes P7S2A=Yes |
|||||||||
| 02 | Partially open grid, left | SPORT/LUXURY L. | 1 | 51117432615 | Shop at ECS Tuning | |||||
| 02 | Closed grid, left | SPORT/LUXURY L. | 1 | 51117432617 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Luxury Line Do not use with remote engine oil cooler Caution: Danger of overheating ! |
P7ACA=Yes P7S2A=Yes |
|||||||||
| 02 | Partially open grid, right | SPORT/LUXURY L. | 1 | 51117432616 | Shop at ECS Tuning | |||||
| 02 | Closed grid, right | SPORT/LUXURY L. | 1 | 51117432618 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and M Aerodynamics package |
P7S1A=Yes S715A=No |
|||||||||
| 02 | Partially open grid, left | MODERN LINE | 1 | 51117309627 | Shop at ECS Tuning | |||||
| 02 | Closed grid, left | MODERN LINE | 1 | 51117309629 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and M Aerodynamics package Do not use with remote engine oil cooler Caution: Danger of overheating ! |
P7S1A=Yes S715A=No |
|||||||||
| 02 | Partially open grid, right | MODERN LINE | 1 | 51117309628 | Shop at ECS Tuning | |||||
| 02 | Closed grid, right | MODERN LINE | 1 | 51117309630 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line and M Aerodynamics package and High speed synchronisation |
P7S1A=Yes S715A=No S840A=Yes |
|||||||||
| 02 | Open grid, right | MODERN LINE | 1 | 51117309626 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modern Line and Luxury Line and M Aerodynamics package |
P7ACA=No P7S1A=No P7S2A=No S715A=No |
|||||||||
| 02 | Partially open grid, left | BASIS | 1 | 51117294683 | Shop at ECS Tuning | |||||
| 02 | Closed grid, left | BASIS | 1 | 51117294685 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modern Line and Luxury Line and M Aerodynamics package Do not use with remote engine oil cooler Caution: Danger of overheating ! |
P7ACA=No P7S1A=No P7S2A=No S715A=No |
|||||||||
| 02 | Partially open grid, right | BASIS | 1 | 51117294684 | Shop at ECS Tuning | |||||
| 02 | Closed grid, right | BASIS | 1 | 51117294686 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Modern Line and Luxury Line and M Aerodynamics package and High speed synchronisation |
P7ACA=No P7S1A=No P7S2A=No S715A=No S840A=Yes |
|||||||||
| 02 | Open grid, left | BASIS | 1 | 51117294681 | Shop at ECS Tuning | |||||
| 02 | Open grid, right | BASIS | 1 | 51117294682 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line |
P7ACA=Yes |
|||||||||
| 03 | Trim Sport Line left | SPORT LINE | 1 | 51117432619 | Shop at ECS Tuning | |||||
| 03 | Trim Sport Line right | SPORT LINE | 1 | 51117432620 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium |
P7S2A=Yes S3MBA=Yes |
|||||||||
| 03 | Trim Luxury Line left | ALUMINIUM SATIN | 1 | 51119491763 | Shop at ECS Tuning | |||||
| 03 | Trim Luxury Line right | ALUMINIUM SATIN | 1 | 51119491764 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Indiv. Ext. Line, burnished aluminium |
P7S2A=Yes S3MBA=No |
|||||||||
| 03 | Trim Luxury Line left | LUXURY LINE | 1 | 51117432623 | Shop at ECS Tuning | |||||
| 03 | Trim Luxury Line right | LUXURY LINE | 1 | 51117432624 | Shop at ECS Tuning | |||||
| For vehicles with Modern Line |
P7S1A=Yes |
|||||||||
| 04 | Covering left | MODERN LINE | 1 | 51117294843 | Shop at ECS Tuning | |||||
| 04 | Covering right | MODERN LINE | 1 | 51117294844 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Active cruise control+Stop&Go function |
P7S2A=Yes S5DFA=Yes |
|||||||||
| 05 | Cover ACC | 1 | 51117459119 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and M Aerodynamics package |
L807A=No L8AAA=No S715A=No |
|||||||||
| 06 | Licence plate base | ECE | 1 | 51117297136 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and M Aerodynamics package |
L807A=Yes S715A=No |
|||||||||
| 07 | Licence plate base | US/JAPAN | 1 | 51117294678 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 08 | Licence plate base | CHINA | 1 | 51117294677 | Shop at ECS Tuning | |||||
| 09 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 5 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
