Sealing cap/plug for BMW MINI Countryman F60 One (2020)

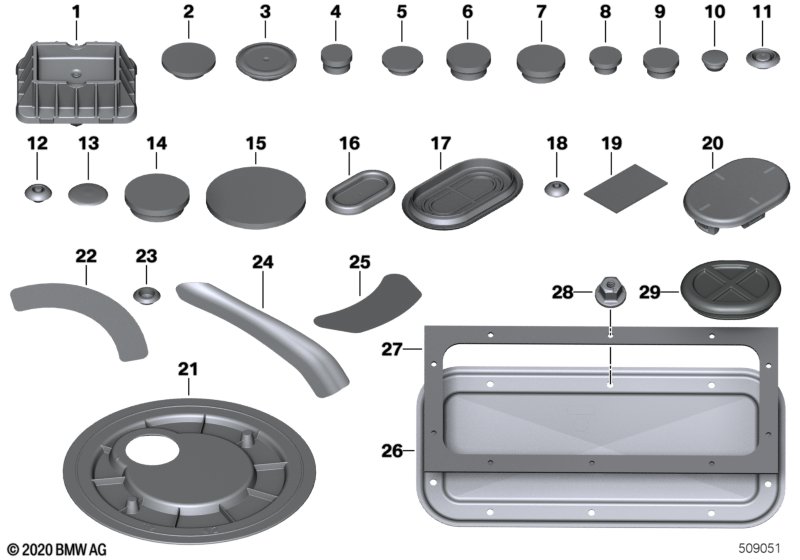

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support lifting platform | 4 | 51717123311 | $13.42 | Shop at ECS Tuning | |||||
| 02 | Paint plugs with hot-melt adhesive ring | D=25MM | X | 07/2023 | 07147180506 | $0.41 | Shop at ECS Tuning | |||
| 02 | Paint plug | D=25MM | X | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 03 | Paint plugs with hot-melt adhesive ring | D=35MM | X | 07/2023 | 41007140847 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 03 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 04 | Seal plug | D=12MM | X | 07147131129 | $0.49 | Shop at ECS Tuning | ||||
| 05 | Paint plugs with hot-melt adhesive ring | D=20MM | X | 07/2023 | 41007140848 | $0.43 | Shop at ECS Tuning | |||
| 05 | Paint plug | D=20MM | X | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 06 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=25MM | X | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=12MM | X | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Blind plug | D=18MM | X | 07130687653 | $0.45 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=9MM | X | 07147324393 | Shop at ECS Tuning | |||||
| 13 | Blind plug | D=22MM | X | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=35MM | X | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 15 | Blind plug | D=55MM | X | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 16 | Plug | 26X52MM | X | 51713412220 | $1.03 | Shop at ECS Tuning | ||||
| 17 | Blind plug | 50X90MM | X | 51717036152 | $2.56 | Shop at ECS Tuning | ||||
| 18 | Blind plug | D=6,5MM | X | 07147221349 | Shop at ECS Tuning | |||||
| 19 | Base seal | 55X35 | X | 07147266961 | Shop at ECS Tuning | |||||
| 20 | Cover for steering column opening | 1 | 51477304362 | Shop at ECS Tuning | ||||||
| 21 | cover, floor panel rear | 1 | 51717347911 | Shop at ECS Tuning | ||||||
| 22 | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| 23 | Seal plug | D=15MM | 1 | 07147424260 | Shop at ECS Tuning | |||||
| 24 | Abrasion guard wrap, side frame, left | 1 | 51377491403 | Shop at ECS Tuning | ||||||
| 24 | Abrasion guard wrap, side frame, right | 1 | 51377491404 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 25 | Protection foil | 1 | 51247954083 | Shop at ECS Tuning | ||||||
| 29 | Blind plug | 65X55MM | 1 | 61139365664 | NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
