Glazing for BMW 5 Series G30 LCI 545eX (2023)

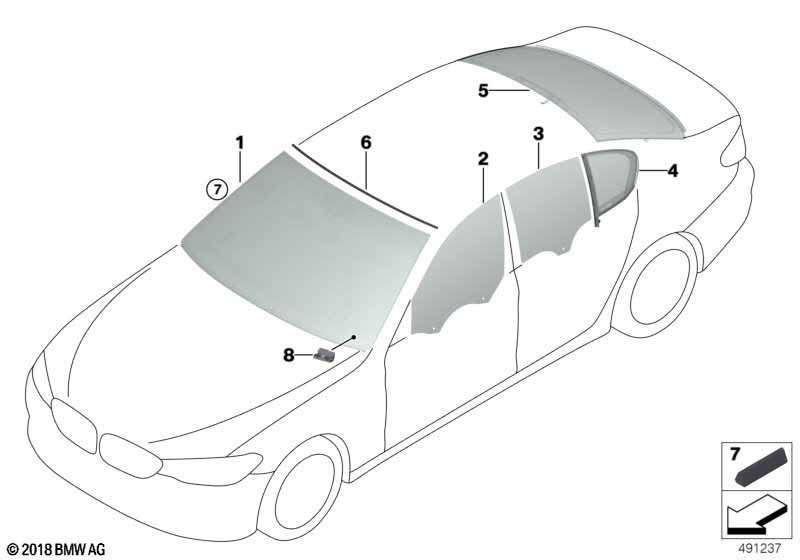

This Glazing technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 545eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Driving assistant professional and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5AUA=Yes S5DFA=Yes S610A=No |
|||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51319466315 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Driving assistant professional and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5AUA=Yes S5DFA=Yes S610A=Yes |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS/HUD | 1 | 51319466316 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and Driving Assistant and Driving assistant professional and Active Guard and BMW Laserlicht and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S552A=No S5ASA=No S5AUA=No S5AVA=No S5AZA=No S5DFA=No S610A=No |
|||||||||
| 01 | Green windshield | 1 | 51317388742 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 6 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Dashboard sound insulation | L=1435MM | 1 | 51487458551 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Adaptive LED headlight and Driving Assistant and Driving assistant professional and Active Guard and BMW Laserlicht and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S552A=No S5ASA=No S5AUA=No S5AVA=No S5AZA=No S5DFA=No S610A=Yes |
|||||||||
| 01 | Green windshield | HUD | 1 | 51317388744 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 6 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Dashboard sound insulation | L=1435MM | 1 | 51487458551 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Adaptive LED headlight and Driving Assistant and Driving assistant professional and Active Guard and BMW Laserlicht and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S552A=Yes S5ASA=Yes S5AUA=No S5AVA=Yes S5AZA=Yes S5DFA=No S610A=Yes |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS/HUD | 1 | 51319466314 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and Driving Assistant and Driving assistant professional and Active Guard and BMW Laserlicht and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S552A=Yes S5ASA=Yes S5AUA=No S5AVA=Yes S5AZA=Yes S5DFA=No S610A=No |
|||||||||
| 01 | Windshield, green, rain/light/fog | KAFAS | 1 | 51319466313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| 02 | Side window, green, door, front left | ESG | 1 | 51337339455 | Shop at ECS Tuning | |||||
| 02 | Side window, green, door, front right | ESG | 1 | 51337339456 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 03 | Side window, green, door, rear left | ESG | 1 | 51377375189 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | ESG | 1 | 51377375190 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window, green, door, rear left | SSG | 1 | 51377375193 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | SSG | 1 | 51377375194 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 04 | Side window, green, fixed, lft rear door | ESG | 1 | 51357381347 | Shop at ECS Tuning | |||||
| 04 | Side window,green fixed,right rear door | ESG | 1 | 51357381348 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 04 | Side window, green, fixed, lft rear door | SSG | 1 | 51357387455 | Shop at ECS Tuning | |||||
| 04 | Side window,green fixed,right rear door | SSG | 1 | 51357387456 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 05 | Rear window green | ESG | 1 | 51317388750 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window green | SSG | 1 | 51317388751 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| 06 | Cover, windshield, top | 1 | 51317388713 | Shop at ECS Tuning | ||||||
| 07 | Bump stop | 4 | 51317288462 | Shop at ECS Tuning | ||||||
| 08 | Holder for vehicle identification number | 1 | 51487437582 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
