Sound insulating rear for BMW 5 Series G30 LCI 520d (2020)

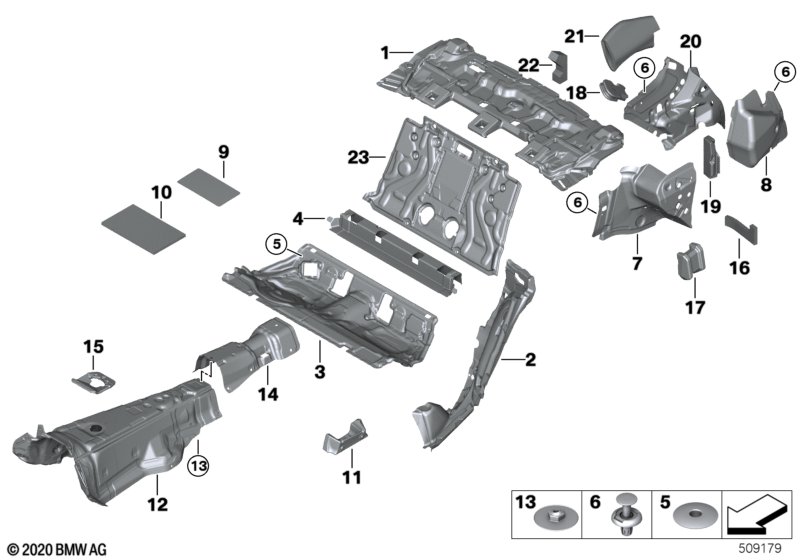

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating front trunk panel | 1 | 51487375746 | Shop at ECS Tuning | ||||||
| 02 | Sound insulating wheel housing rear left | 1 | 51487375741 | Shop at ECS Tuning | ||||||
| 02 | Sound insulating wheel housing rear rig. | 1 | 51487375742 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation floor rear | 1 | 51487423550 | Shop at ECS Tuning | ||||||
| 05 | Clip for ball attachment | 4 | 07147354230 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | X | 07147401727 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating wheel housing rear left | 1 | 51487373563 | Shop at ECS Tuning | ||||||
| 07 | Sound insulating wheel housing rear rig. | 1 | 51487373564 | Shop at ECS Tuning | ||||||
| 09 | Sound absorber | X | 51447437870 | Shop at ECS Tuning | ||||||
| 10 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 11 | Left LOWER B-COLUMN SOUND INSULATION | 1 | 51487375739 | NoS | Shop at ECS Tuning | |||||
| 11 | Right LOWER B-COLUMN SOUND INSULATION | 1 | 51487375740 | Shop at ECS Tuning | ||||||
| 12 | Sound insulating tunnel front | 1 | 51487330727 | Shop at ECS Tuning | ||||||
| 13 | Body nut | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Sound insulating tunnel rear | 1 | 51487352214 | Shop at ECS Tuning | ||||||
| 15 | Sound insulation, condensation drain | 1 | 51487343466 | Shop at ECS Tuning | ||||||
| 21 | Absorber, sidewall | 2 | 51487381211 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
