Sound insulating front for BMW 7 Series E66 760Li (2005)

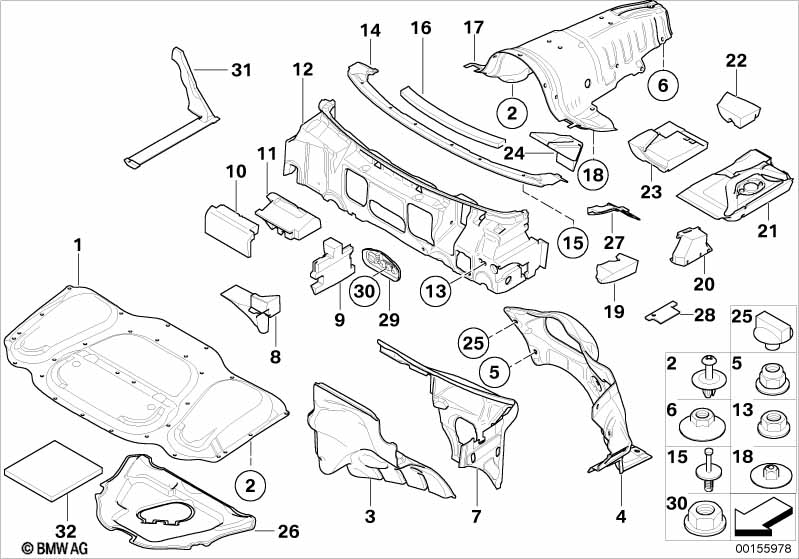

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 03/2005 | 51487139395 | $163.08 | Shop at ECS Tuning | ||||
| 02 | Expanding rivet | D=7,5MM | 32 | 03/2005 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| 03 | Front left sound insulatng wheel housing | 1 | 03/2005 | 51488251313 | ENDED | Shop at ECS Tuning | ||||
| 03 | Front rght sound insulatng wheel housing | 1 | 03/2005 | 51488251314 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulat.dash panel engine room L. | 1 | 03/2005 | 51488251309 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulat.dash panel engine room R. | 1 | 03/2005 | 51488251310 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | 3 | 03/2005 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 06 | Push-button | D=30MM;H=13MM | 15 | 03/2005 | 51481923999 | $0.42 | Shop at ECS Tuning | |||
| 07 | Sound insulation, front left of bulkhead | 1 | 03/2005 | 51488251311 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulation, front wall,front,right | 1 | 03/2005 | 51488251312 | ENDED | Shop at ECS Tuning | ||||
| 08 | AC sound insulation, front left | 1 | 03/2005 | 51487067231 | Shop at ECS Tuning | |||||
| 08 | AC sound insulation, front right | 1 | 03/2005 | 51487067232 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning for rear with cool box |
S523A=Yes |
|||||||||
| 08 | AC sound insulation, front left | 1 | 03/2005 | 51487111825 | Shop at ECS Tuning | |||||
| 08 | AC sound insulation, front right | 1 | 03/2005 | 51487111826 | Shop at ECS Tuning | |||||
| 09 | AC sound insulation, rear left | 1 | 03/2005 | 51487067235 | Shop at ECS Tuning | |||||
| 09 | AC sound insulation, rear right | 1 | 03/2005 | 51487067236 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning for rear with cool box |
S523A=Yes |
|||||||||
| 09 | AC sound insulation, rear left | 1 | 03/2005 | 51487044962 | $10.94 | Shop at ECS Tuning | ||||
| 09 | AC sound insulation, rear left | 1 | 03/2005 | 51487111827 | Shop at ECS Tuning | |||||
| 09 | AC sound insulation, rear right | 1 | 03/2005 | 51487111828 | Shop at ECS Tuning | |||||
| 10 | AC sound insulation, center front | 1 | 03/2005 | 51488251299 | $11.47 | Shop at ECS Tuning | ||||
| 11 | AC sound insulation, center rear | 1 | 51487148335 | $11.47 | Shop at ECS Tuning | |||||
| 12 | Sound insulat., bottom sect. of bulkhead | 1 | 03/2005 | 51487014735 | $104.63 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex nut | 2 | 03/2005 | 61352694959 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Upper sound insulating dash panel | 1 | 03/2005 | 51487020033 | $35.43 | ENDED | Shop at ECS Tuning | |||
| 15 | Expanding rivet | 6 | 03/2005 | 51471919209 | $0.45 | Shop at ECS Tuning | ||||
| 16 | Sound insulation f apron | L=1450X20MM | 1 | 03/2005 | 51487067242 | $36.30 | Shop at ECS Tuning | |||
| 17 | Sound insulating tunnel front | 1 | 03/2005 | 51488223492 | $181.12 | Shop at ECS Tuning | ||||
| 18 | Body nut | D=18MM, ZNS-3 | 2 | 03/2005 | 07146949379 | $0.20 | Shop at ECS Tuning | |||
| 19 | Filler, tunnel front left | 1 | 03/2005 | 51487036663 | $5.75 | Shop at ECS Tuning | ||||
| 19 | Filler, tunnel front right | 1 | 03/2005 | 51487036664 | $5.75 | Shop at ECS Tuning | ||||
| 20 | Left LOWER B-COLUMN SOUND INSULATION | 1 | 03/2005 | 51487012095 | $9.33 | Shop at ECS Tuning | ||||
| 20 | Right LOWER B-COLUMN SOUND INSULATION | 1 | 03/2005 | 51487012096 | $9.33 | Shop at ECS Tuning | ||||
| 21 | Filler, tunnel front left | 1 | 03/2005 | 51488223503 | $17.56 | Shop at ECS Tuning | ||||
| 21 | Filler, tunnel front right | 1 | 03/2005 | 51488223504 | $17.56 | Shop at ECS Tuning | ||||
| 22 | Filler, tunnel rear left | 1 | 03/2005 | 51487036665 | $5.75 | Shop at ECS Tuning | ||||
| 22 | Filler, tunnel rear right | 1 | 03/2005 | 51487036666 | $5.75 | Shop at ECS Tuning | ||||
| 23 | Filler, tunnel rear left | 1 | 03/2005 | 51488252445 | $11.62 | ENDED | Shop at ECS Tuning | |||
| 23 | Filler, tunnel rear right | 1 | 03/2005 | 51488252446 | $11.62 | ENDED | Shop at ECS Tuning | |||
| 24 | Sound insulation, left scuttle | 1 | 03/2005 | 51487112113 | $8.59 | ENDED | Shop at ECS Tuning | |||
| 24 | Sound insulation, right scuttle | 1 | 03/2005 | 51487112114 | $8.59 | ENDED | Shop at ECS Tuning | |||
| 25 | Push-button | 3 | 03/2005 | 61131373669 | $0.93 | Shop at ECS Tuning | ||||
| 29 | Supporting plate f sound insulation | 1 | 03/2005 | 51717001338 | $37.94 | Shop at ECS Tuning | ||||
| 30 | Hex nut | M6 | 3 | 03/2005 | 51717065987 | $0.79 | Shop at ECS Tuning | |||
| 31 | Liner, a/c line | 1 | 03/2005 | 51487038247 | $13.25 | ENDED | Shop at ECS Tuning | |||
| 32 | Sound deadener | 1160X700MM | 1 | 03/2005 | 51488165271 | $50.35 | Shop at ECS Tuning | |||
