M Trim, rear for BMW 3 Series E46 M3 (2002)

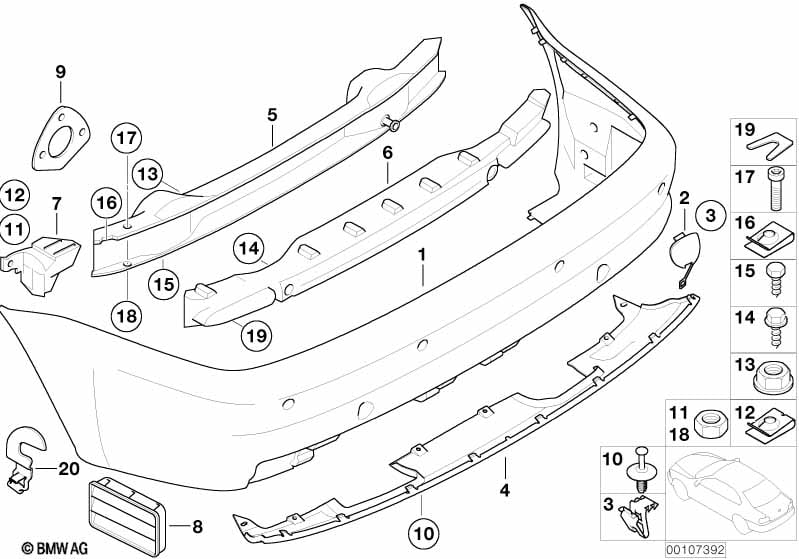

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | M3 | 1 | 11/2001 | 51122695267 | $556.22 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Foam pad, rear lightweight bumper | 1 | 11/2001 | 51127894993 | $77.24 | Shop at ECS Tuning | ||||
| -- | Foam pad screw | X | 11/2001 | 51127894997 | $1.03 | Shop at ECS Tuning | ||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, primed, rear | M3 - PDC | 1 | 11/2001 | 51127893222 | $578.03 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 11/2001 | 51122293990 | +core | Shop at ECS Tuning | |||
| -- | Kit dummy trim | GEN 4.2 | 1 | 11/2001 | 51125A3F542 | Shop at ECS Tuning | ||||
| -- | Foam pad, rear lightweight bumper | 1 | 11/2001 | 51127894993 | $77.24 | Shop at ECS Tuning | ||||
| -- | Foam pad screw | X | 11/2001 | 51127894997 | $1.03 | Shop at ECS Tuning | ||||
| -- | Stick-on label | NO PDC | 1 | 11/2001 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M3 - PDC | 1 | 11/2001 | 51127893222 | $578.03 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Foam pad, rear lightweight bumper | 1 | 11/2001 | 51127894993 | $77.24 | Shop at ECS Tuning | ||||
| -- | Foam pad screw | X | 11/2001 | 51127894997 | $1.03 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, primed | M3 | 1 | 11/2001 | 51122695274 | $10.36 | Shop at ECS Tuning | |||
| 03 | Clamp | 1 | 11/2001 | 51127164686 | $0.50 | Shop at ECS Tuning | ||||
| 04 | Cover, primed | M3 | 1 | 11/2001 | 51122694730 | $111.21 | +core | Shop at ECS Tuning | ||
| 05 | Carrier system, rear lightweight bumper | 1 | 11/2001 | 51127894853 | $667.57 | +core | Shop at ECS Tuning | |||
| 06 | Foam pad, rear lightweight bumper | 1 | 11/2001 | 51127894993 | $77.24 | Shop at ECS Tuning | ||||
| 07 | Support fender left | 1 | 11/2001 | 51127895643 | $7.35 | Shop at ECS Tuning | ||||
| 07 | Support fender right | 1 | 11/2001 | 51127895644 | $7.35 | Shop at ECS Tuning | ||||

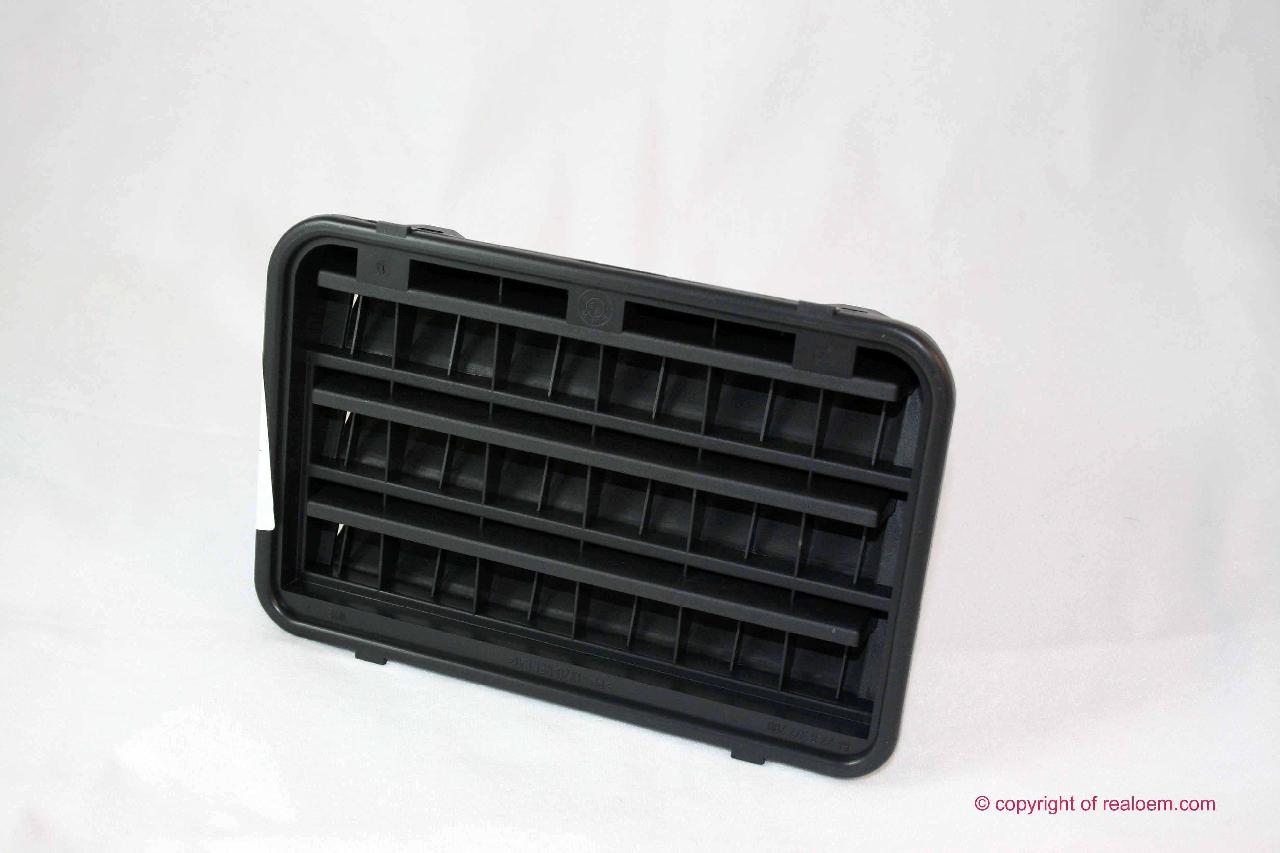

| 08 | Breather covering rear | SCHWARZ | 2 | 11/2001 | 64226962293 | $7.30 | Shop at ECS Tuning | |||
| 08 | Breather covering rear | SCHWARZ | 2 | 11/2001 | 64228377280 | $7.08 | ENDED | Shop at ECS Tuning | ||
| 09 | Gasket | 2 | 11/2001 | 51129502217 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | X | 11/2001 | 51118174185 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 | 4 | 11/2001 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 12 | Body nut | ST4,8-9-ZNS3 | 4 | 11/2001 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 13 | Hex nut with plate | M8 | 6 | 11/2001 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 14 | Foam pad screw | X | 11/2001 | 51127894997 | $1.03 | Shop at ECS Tuning | ||||
| 15 | Hex head screw with washer | ST4,8X16MM | 6 | 11/2001 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| 16 | Body nut | 6 | 11/2001 | 07129901662 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Fillister-head screw | 1 | 11/2001 | 51118194679 | $1.95 | Shop at ECS Tuning | ||||

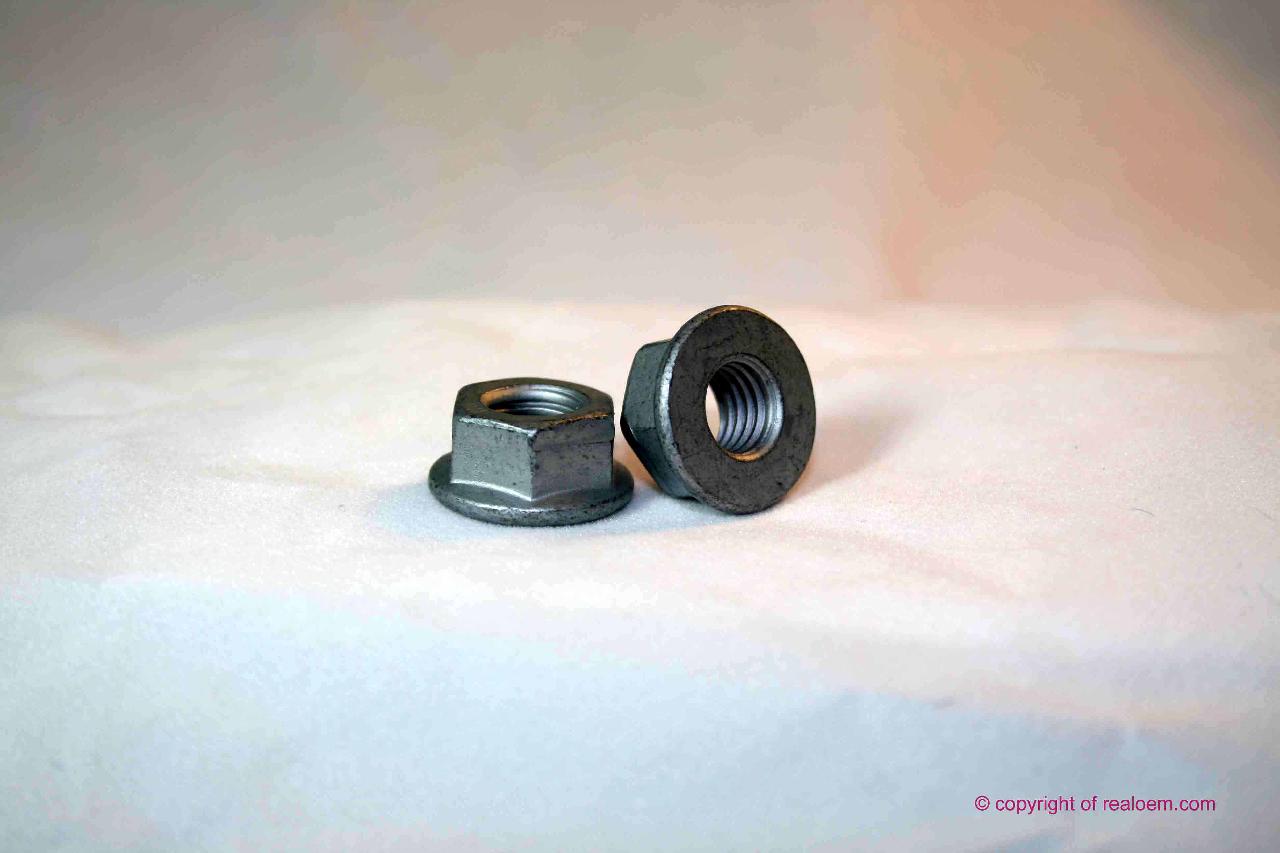

| 18 | Hex nut wiht flange | M10-10 ZNS3 | 1 | 11/2001 | 33306760587 | $0.78 | Shop at ECS Tuning | |||
| 19 | Spacer | 8 | 11/2001 | 54218169848 | $0.44 | Shop at ECS Tuning | ||||
| 20 | Left bracket | 1 | 06/2002 | 51127896161 | $1.85 | Shop at ECS Tuning | ||||
| 20 | Right bracket | 1 | 06/2002 | 51127896162 | $1.85 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
