Floor covering for BMW 5 Series G30 520d (2019)

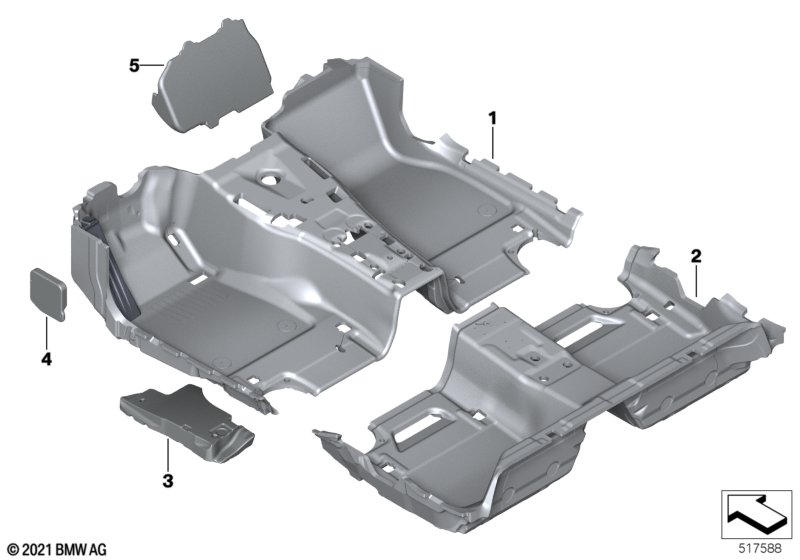

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | SCHWARZ | 1 | 51472899070 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | SCHWARZ | 1 | 51477419807 | Shop at ECS Tuning | |||||
| For vehicles with Leatherette canberra-beige or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
K8CY=Yes LCCY=Yes LCDO=Yes |
|||||||||
| 01 | Floor trim cover, front | CABERRABEIGE | 1 | 51477438369 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 02 | Floor covering rear | SCHWARZ | 1 | 51477419460 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=No |
|||||||||
| 02 | Floor covering rear | SCHWARZ | 1 | 51477419459 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and Leatherette canberra-beige or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S4NBA=No K8CY=Yes LCCY=Yes LCDO=Yes |
|||||||||
| 02 | Floor covering rear | CANBERRABEIGE | 1 | 51477438359 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and Leatherette canberra-beige or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S4NBA=Yes K8CY=Yes LCCY=Yes LCDO=Yes |
|||||||||
| 02 | Floor covering rear | CANBERRABEIGE | 1 | 51477438360 | NoS | Shop at ECS Tuning | ||||
| 03 | Foam insert footwell front left | 1 | 51477400801 | Shop at ECS Tuning | ||||||
| 03 | Foam insert footwell front right | 1 | 51477400802 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Active cruise control+Stop&Go function and Parking assistance system and Parking assistance system Plus and Park Assistent and Remote control parking |
S5ATA=No S5DFA=No S5DMA=No S5DNA=No S5DPA=No S5DVA=No |
|||||||||
| 04 | Foam insert, left | 1 | 51477355933 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
