M Trim, front for BMW 3 Series E46 316ti (2004)

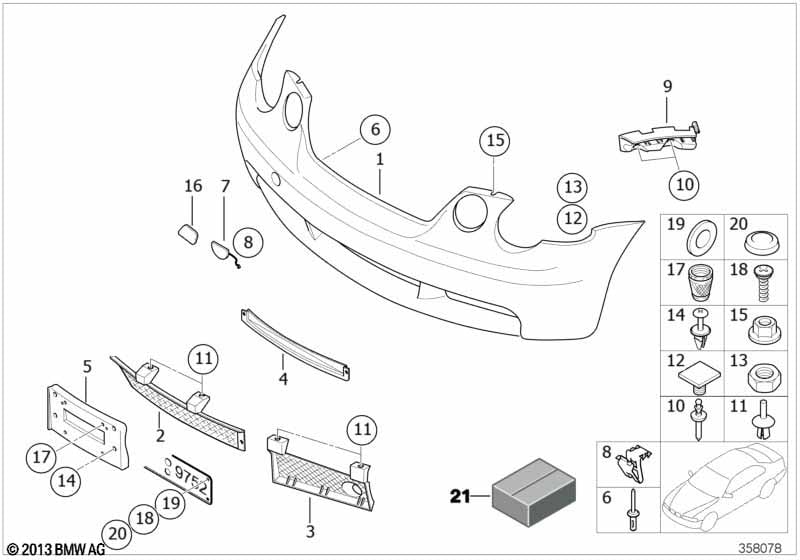

This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package II or Aerodynamics package |
S338A=Yes S716A=Yes |
||||||||
| 01 | Trim cover, bumper, primed, front | M | 1 | 51117894750 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112293995 | Shop at ECS Tuning | |||||
| 01 | Painted front bumper trim | CODE - UNI/MET. | 1 | 51110030710 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112293995 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M | 1 | 51717895094 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112293995 | Shop at ECS Tuning | |||||
| 01 | Painted front bumper trim | CODE - UNI/MET. | 1 | 51110030711 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112293995 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 02 | Grid, bumper front | 1 | 51117894708 | Shop at ECS Tuning | ||||||
| 03 | Cover with fog lamp left | 1 | 51117895035 | Shop at ECS Tuning | ||||||
| 03 | Cover with fog lamp right | 1 | 51117895036 | Shop at ECS Tuning | ||||||
| 05 | Licence plate base | 1 | 51117895215 | Shop at ECS Tuning | ||||||
| When ordering indicate color code | ||||||||||
| 05 | Licence plate base painted | CODE - UNI/MET. | 1 | 51110149319 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Licence plate base | 1 | 51117895214 | Shop at ECS Tuning | ||||||
| 06 | Blind compression rivet | 6X21MM | 8 | 51118222901 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Flap, towing eye, primed | 1 | 51117894751 | Shop at ECS Tuning | ||||||
| 07 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51110030712 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 08 | Clamp | 1 | 51127164686 | $0.50 | Shop at ECS Tuning | |||||
| 09 | Mount, lateral, bumper, front left | 1 | 51118252797 | $4.60 | Shop at ECS Tuning | |||||
| 09 | Mount, lateral, bumper, front right | 1 | 51118252798 | $4.07 | Shop at ECS Tuning | |||||
| 10 | Rivet | 4 | 51111942789 | $0.90 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 12 | Fastener | M6 | 2 | 54218251229 | $0.56 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 2 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 16 | Cover, spray nozzle, primed left | 1 | 61677895277 | Shop at ECS Tuning | ||||||
| 16 | Cover, spray nozzle, primed right | 1 | 61677895278 | Shop at ECS Tuning | ||||||
| 16 | cover, spray nozzle left painted | CODE - UNI/MET. | 1 | 51110030713 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 16 | cover, spray nozzle right painted | CODE - UNI/MET. | 1 | 51110030714 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 17 | Threaded bush | M6 | 2 | 11611716166 | $0.68 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 18 | Phillips screw f plastic material | TS 5X8 | 4 | 07146959895 | $0.29 | Shop at ECS Tuning | ||||
| 19 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 20 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 20 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 21 | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112293995 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
