Storage surface, trunk floor for BMW 5 Series G30 530eX (2020)

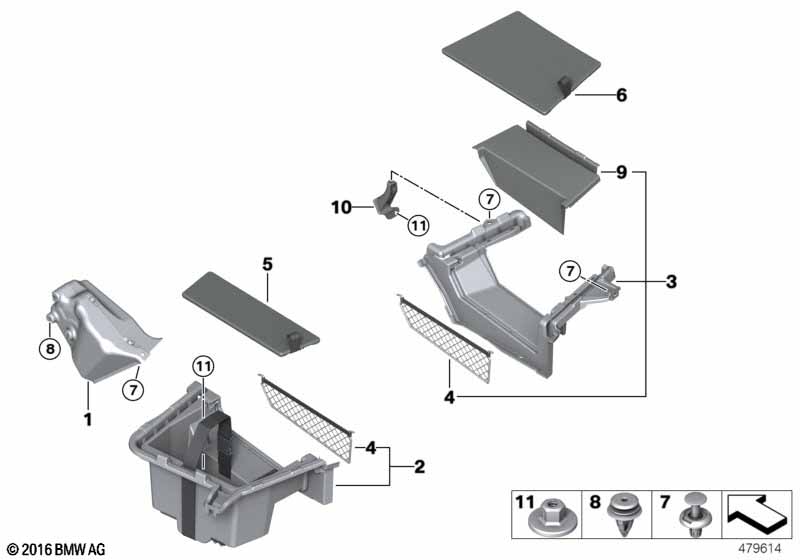

This Storage surface, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shelf first-aid kit | 1 | 51477416623 | Shop at ECS Tuning | ||||||
| 02 | Storage bin, trunk, left | PHEV | 1 | 51477378505 | Shop at ECS Tuning | |||||
| 03 | Stowage compartment, boot right | PHEV | 1 | 51477378506 | Shop at ECS Tuning | |||||
| 04 | Net with wire clamp | PHEV | 2 | 51477464183 | Shop at ECS Tuning | |||||
| For vehicles with Cloth junction / anthracite or Cloth/leather plectoid / anthracite or Cloth Rhombicle Alcantara anthracite or Leatherette canberra-beige or Imitation leather "Leatherette/black" or Cloth/Sensatec/anthracite or Sensatec perforated/Canberra beige or Sensatec perforated/cognac or Sensatec perforated/black or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather 'Dakota' canberrabeige / black or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
BYAT=Yes CNAT=Yes HRAT=Yes K8CY=Yes K8SW=Yes KFAT=Yes KHFY=Yes KHRI=Yes KHSW=Yes LCCY=Yes LCDO=Yes LCEA=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCFY=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 05 | Cover, storage compartment, trunk, left | PHEV ANTHRAZIT | 1 | 51477421433 | Shop at ECS Tuning | |||||
| 06 | Lid storage comp. luggage compart.right | PHEV ANTHRAZIT | 1 | 51477421434 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 08 | Clip with sealing washer, Light Blue | 3 | 07149136882 | $0.59 | Shop at ECS Tuning | |||||
| 09 | Battery cover | PHEV | 1 | 51477464182 | Shop at ECS Tuning | |||||
| 10 | Support storage compartment right | PHEV | 1 | 51477432982 | Shop at ECS Tuning | |||||
| 11 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
