Left trunk trim for BMW 5 Series G38 LCI 530LiX (2023)

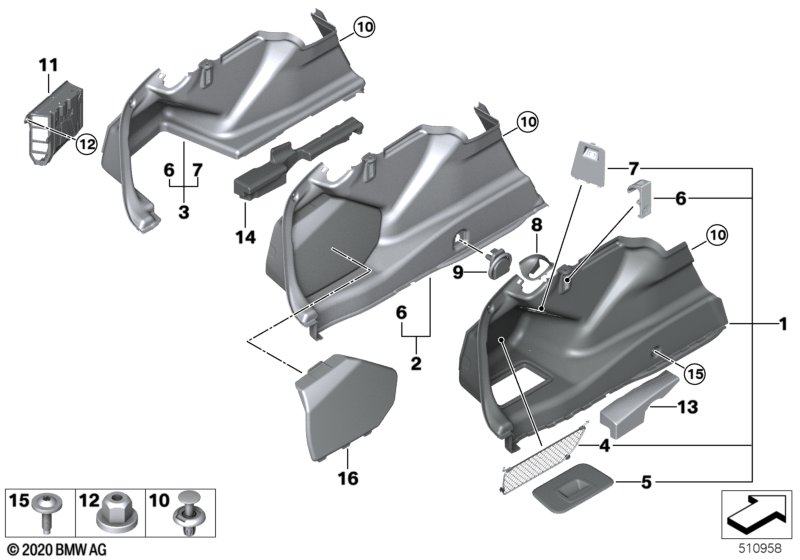

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 LCI 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left trunk trim | 1 | 51477392863 | NoS | Shop at ECS Tuning | |||||
| 05 | Cover, storage compartment, trunk, left | 1 | 51477464191 | Shop at ECS Tuning | ||||||
| 06 | Multi-functional hook | SCHWARZ | 1 | 51477157715 | $6.83 | Shop at ECS Tuning | ||||
| 08 | Covering left | 1 | 51477373577 | Shop at ECS Tuning | ||||||
| 10 | Expanding rivet | 6 | 07147401727 | Shop at ECS Tuning | ||||||
| 11 | Rear ventilation, left | 1 | 51477446851 | Shop at ECS Tuning | ||||||
| 12 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Pad, side member, left | 1 | 51477418295 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G38 LCI 530LiX Left trunk trim?
- This technical diagram illustrates the Left trunk trim within the Vehicle trim group for the 5 Series G38 LCI 530LiX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Left trunk trim (Part #51477392863).
- Which models use the hardware listed in this Left trunk trim?
- The hardware and components featured in the Left trunk trim are specific to the 5 Series G38 LCI 530LiX produced during 2023. These technical specifications ensure that parts like the Left trunk trim (51477392863) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Left trunk trim assembly?
- Each item in the Left trunk trim corresponds to the numbered list below the illustration. For the 5 Series G38 LCI 530LiX, you can identify the Left trunk trim by locating its position on the schematic, which then links to the official BMW part number 51477392863 for the Vehicle trim section.
