Door window lifting mechanism rear for BMW 5 Series E60 525i (2007)

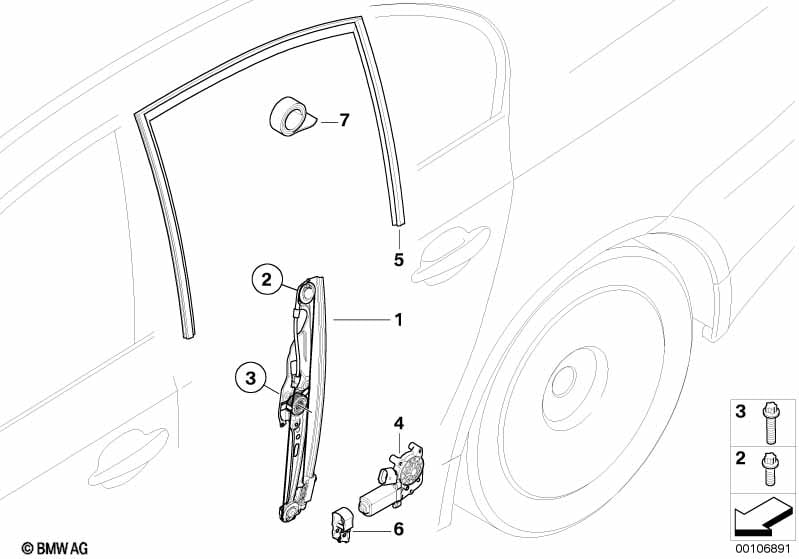

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor, rear left | 1 | 51357184745 | $109.09 | Shop at ECS Tuning | |||||
| 01 | Window lifter without motor, rear right | 1 | 51357184746 | $109.09 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | M6X20 | 4 | 07147203315 | $0.44 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M6X30 | 4 | 51357203714 | $2.56 | Shop at ECS Tuning | ||||
| 04 | Drive, window lifter, rear left | 1 | 67626922319 | $147.05 | Shop at ECS Tuning | |||||
| 04 | Drive, window lifter, rear right | 1 | 67626922320 | $147.05 | Shop at ECS Tuning | |||||
| 05 | Left rear window guide | 1 | 51357033805 | $49.84 | Shop at ECS Tuning | |||||
| 05 | Rear right window guide | 1 | 51357033806 | $49.84 | Shop at ECS Tuning | |||||
| For vehicles with Climate comfort laminated glass or Protective glazing |
S356A=Yes S357A=Yes |
|||||||||
| 05 | Left rear window guide | 1 | 51357057503 | $83.07 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear right window guide | 1 | 51357057504 | $83.07 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamping bracket left | 1 | 51357075671 | $8.78 | Shop at ECS Tuning | |||||
| 06 | Clamping bracket right | 1 | 51357075672 | $8.78 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 5 Series E60 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter without motor, rear left (Part #51357184745).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 5 Series E60 525i produced during 2007. These technical specifications ensure that parts like the Window lifter without motor, rear left (51357184745) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Window lifter without motor, rear left by locating its position on the schematic, which then links to the official BMW part number 51357184745 for the Vehicle trim section.
