Trim cover, front for BMW 5 Series E60 530i (2005)

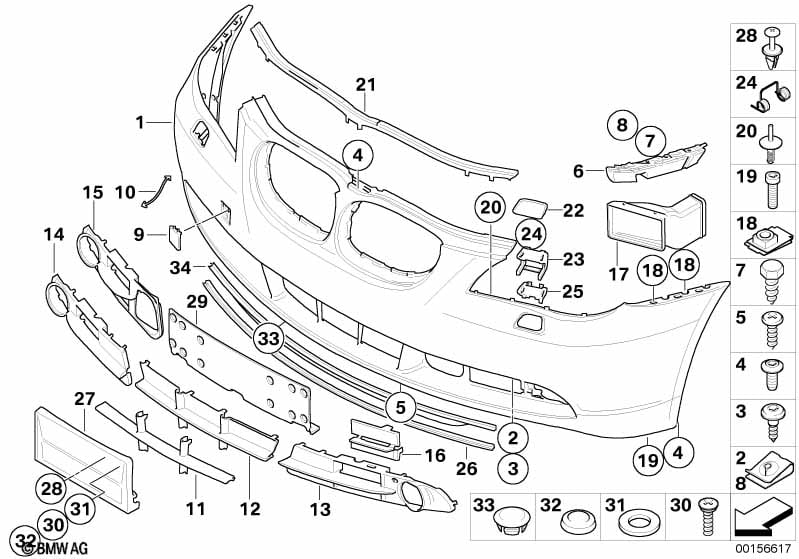

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package and M Aerodynamics package and Aerodynamics package |
P337A=No S715A=No S716A=No |
||||||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 51117111740 | $541.22 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Kit dummy trim | GEN 4.2 | 1 | 51125A3F542 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112411732 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 51117111740 | $541.22 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112411732 | Shop at ECS Tuning | |||||
| 02 | Body nut | ST 4,8-6-ZNS3 | 4 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | 4 | 07146959896 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M6X18 SW | 5 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Screw | 3 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Support, side panel front left | 1 | 51117033705 | $11.37 | Shop at ECS Tuning | |||||
| 06 | Support, side panel front right | 1 | 51117033706 | $11.37 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | ST 6,3 X 25 | 6 | 07119904935 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST 6,3 - 9 | 6 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Flap, towing eye, primed | 1 | 51117111787 | $12.39 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 09 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51110149251 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holding strap | 2 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||

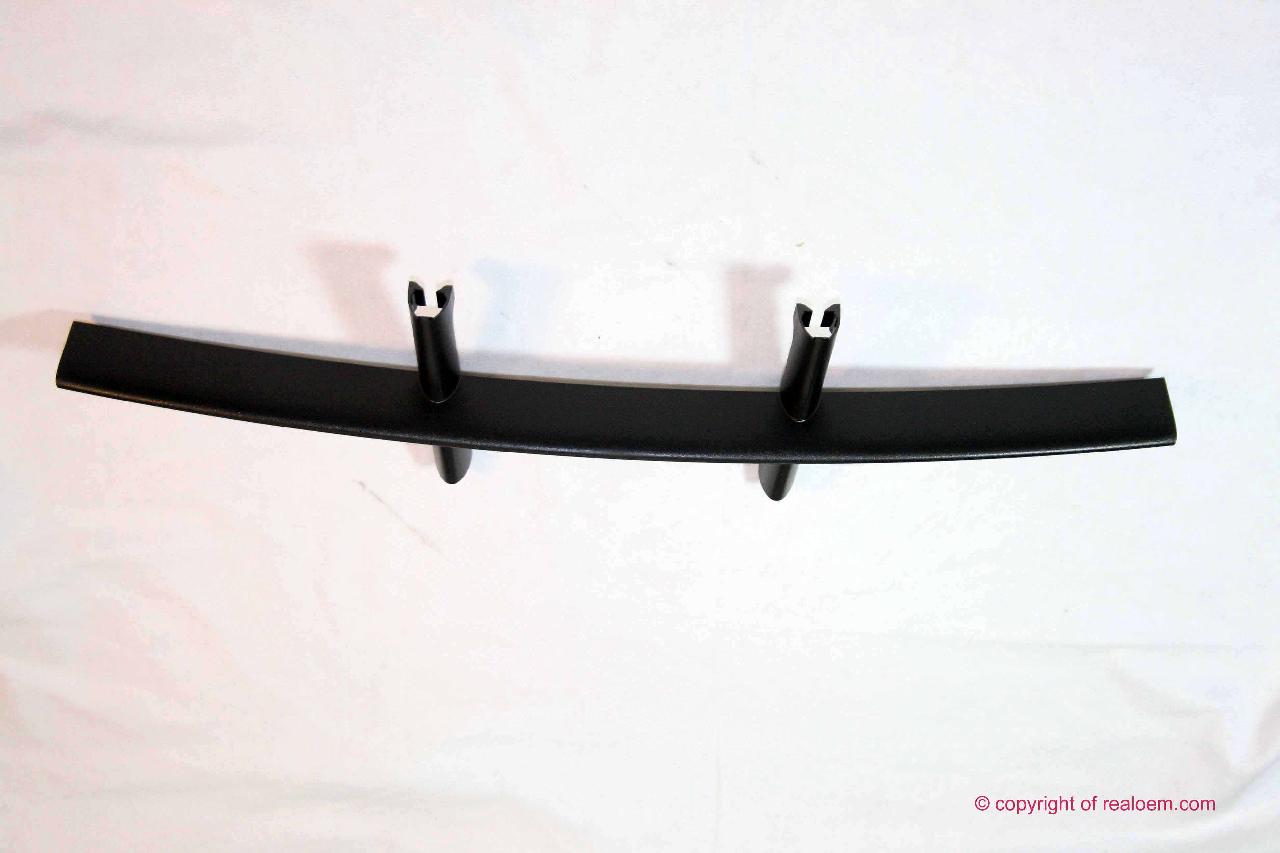

| 11 | Grid, center open | 1 | 51117033702 | $30.13 | Shop at ECS Tuning | |||||

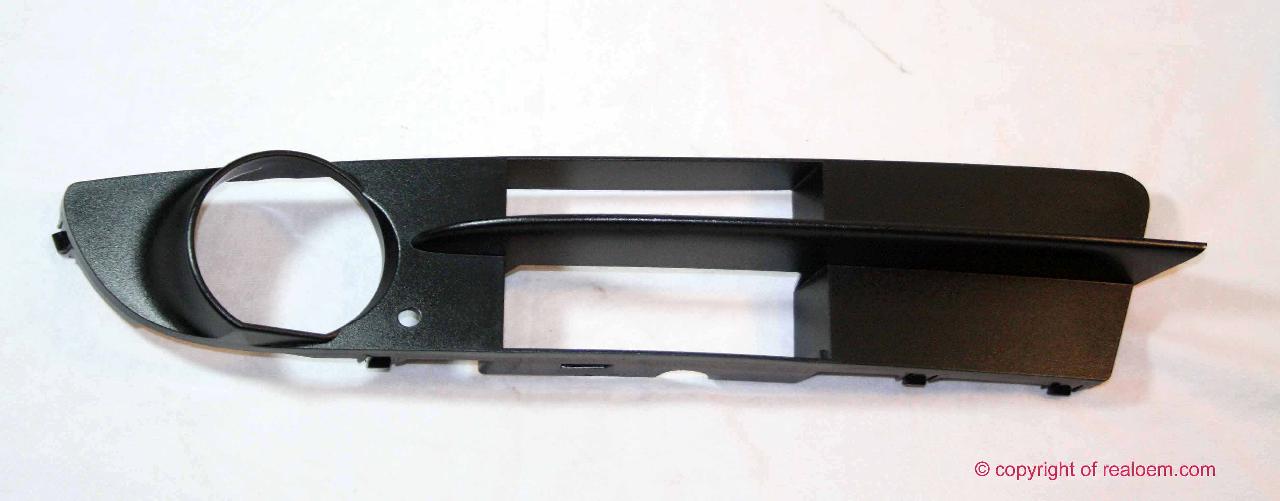

| 13 | Grid lateral left | 1 | 51117049243 | $30.13 | Shop at ECS Tuning | |||||

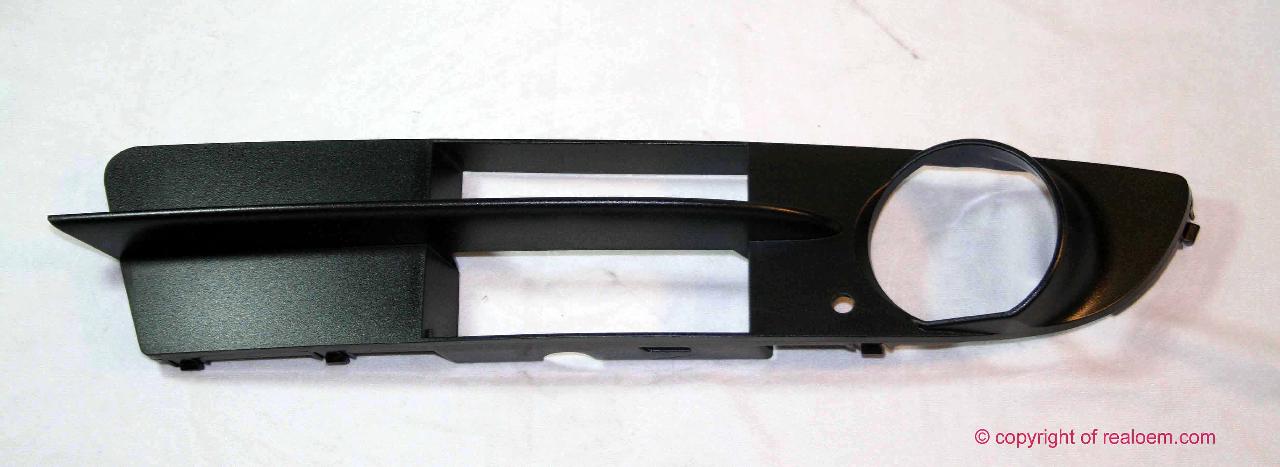

| 14 | Grid lateral right | 1 | 51117049244 | $30.13 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 15 | Grid lateral right | ACC | 1 | 09/2004 | 51117142056 | $30.13 | Shop at ECS Tuning | |||
| 17 | Front left brake air duct | 1 | 51117033703 | $28.30 | Shop at ECS Tuning | |||||

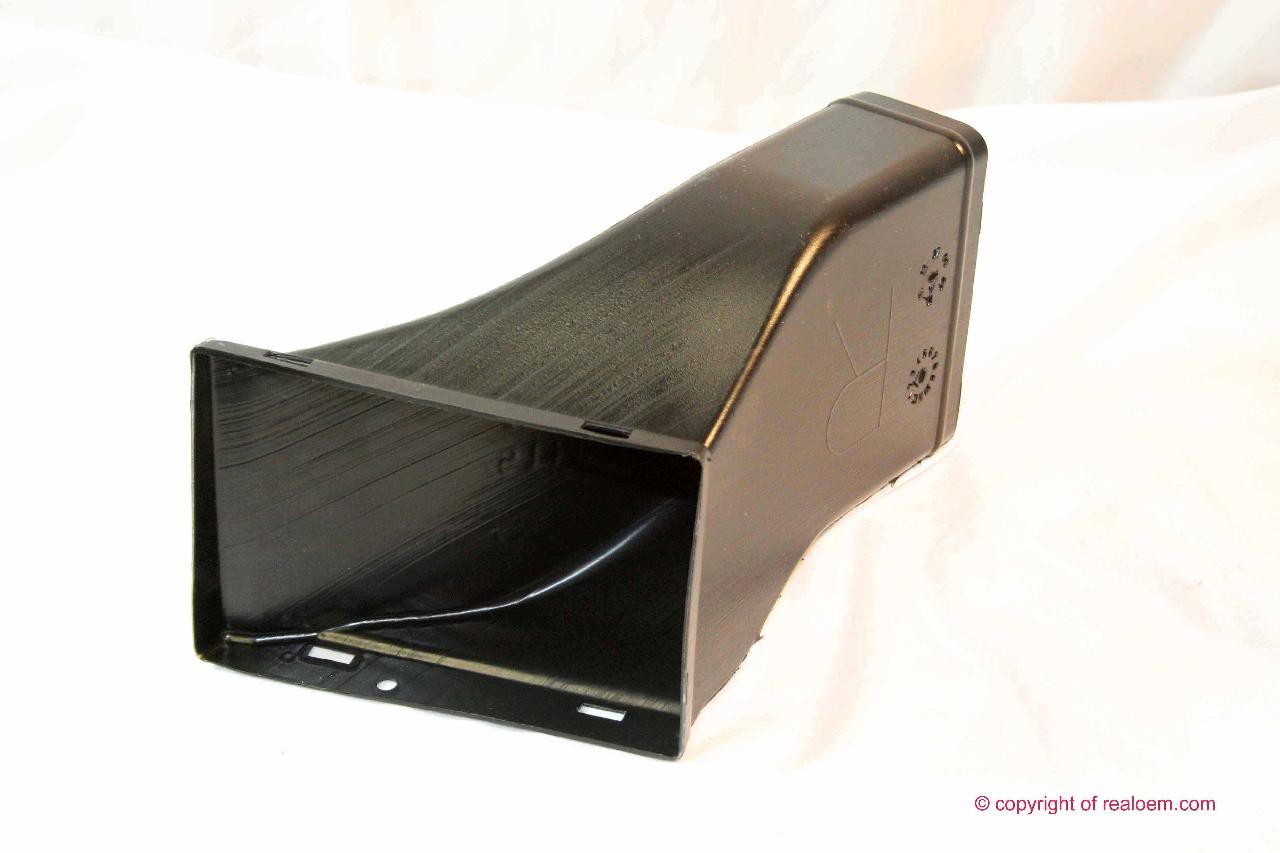

| 17 | Front right brake air duct | 1 | 51117033704 | $28.30 | Shop at ECS Tuning | |||||
| 18 | C-clip nut | M6 | 6 | 07142452506 | Shop at ECS Tuning | |||||
| 19 | Torx bolt | M6X22 | 2 | 07147075867 | $0.65 | Shop at ECS Tuning | ||||
| 20 | Expanding rivet | 2 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
| 21 | Supporting ledge | 1 | 51117063835 | $14.06 | ENDED | Shop at ECS Tuning | ||||
| 22 | Flap prime coatedleft | 1 | 51117111741 | $7.34 | Shop at ECS Tuning | |||||
| 22 | Flap prime coated right | 1 | 51117111742 | $7.34 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 22 | Flap, painted left | CODE - UNI/MET. | 1 | 51110149264 | ENDED | Shop at ECS Tuning | ||||
| 22 | Flap, painted, right | CODE - UNI/MET. | 1 | 51110149266 | ENDED, +core | Shop at ECS Tuning | ||||
| 23 | Lever left | 1 | 51117060585 | $6.35 | Shop at ECS Tuning | |||||
| 23 | Lever right | 1 | 51117060586 | $6.35 | Shop at ECS Tuning | |||||
| 24 | Spring | 2 | 51117061659 | $1.90 | Shop at ECS Tuning | |||||
| 25 | Dummy plug left | 1 | 51117056945 | $0.92 | Shop at ECS Tuning | |||||
| 25 | Dummy plug right | 1 | 51117056946 | $0.92 | Shop at ECS Tuning | |||||
| 26 | Spoiler front | 1 | 51117111012 | $13.98 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 27 | Licence plate base primed | 1 | 51117111743 | $39.07 | Shop at ECS Tuning | |||||
| 28 | Fillister head screw | TS5X20 | 2 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| 29 | Drilling template | 1 | 51117061663 | $4.75 | ENDED | Shop at ECS Tuning | ||||
| 30 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 31 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 32 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 32 | Covering cap | GOLDGELB | 4 | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| 32 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 33 | Plug, primed | ACC | 1 | 51117067760 | $1.10 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control When ordering indicate color code |
S541A=Yes |
|||||||||
| 33 | Plug, painted | CODE - UNI/MET. | 1 | 51110309080 | $39.34 | ENDED, +core | Shop at ECS Tuning | |||

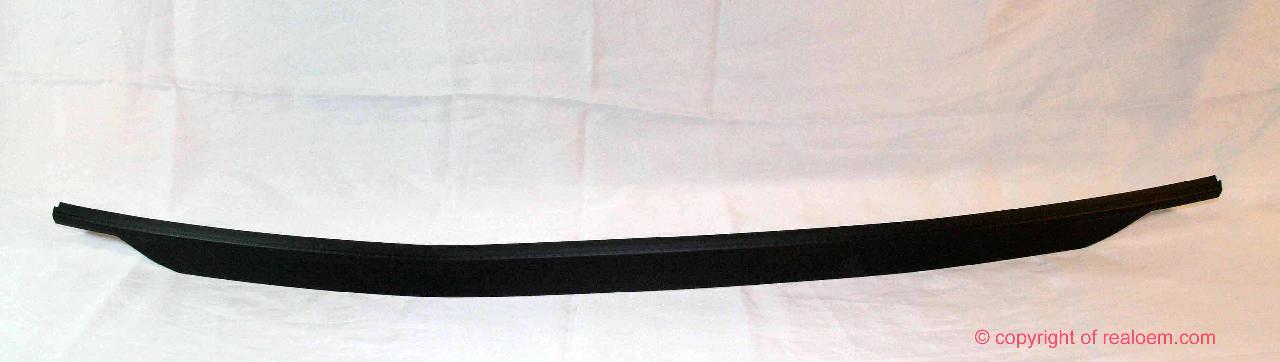

| 34 | Spoiler front | 1 | 51117126969 | $15.19 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
