Exterior trim / grill for BMW 5 Series E60 525i (2005)

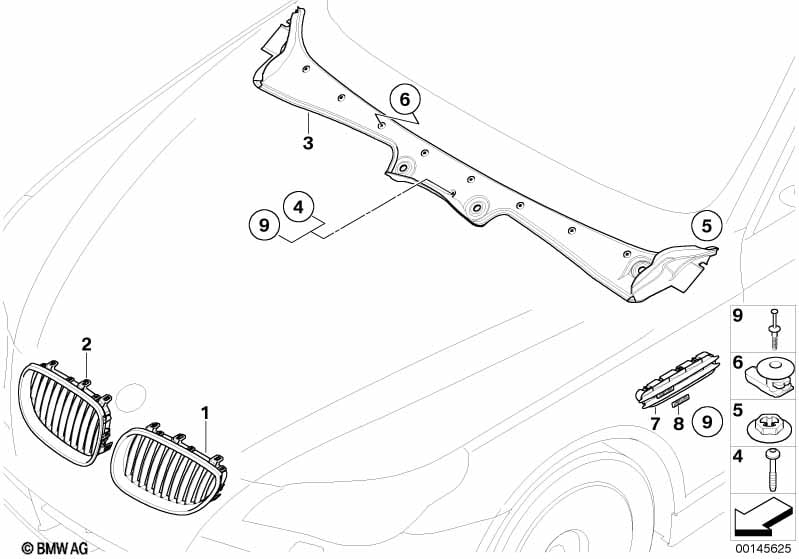

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | SCHWARZ | 1 | 09/2005 | 51137027061 | $61.64 | Shop at ECS Tuning | |||
| 02 | Grille right | SCHWARZ | 1 | 09/2005 | 51137027062 | $61.64 | Shop at ECS Tuning | |||
| 03 | Cover, windshield | 1 | 51717027083 | $46.49 | Shop at ECS Tuning | |||||
| 04 | Torx-bolt with washer | ISA M6X32 | 2 | 07147154225 | Shop at ECS Tuning | |||||
| 05 | Plastic nut | 2 | 51717110861 | $0.40 | Shop at ECS Tuning | |||||
| 06 | Clip | 8 | 51717064092 | $1.56 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 2 | 07147139402 | $0.49 | Shop at ECS Tuning |
