Cover door sill / wheel arch for BMW 5 Series E60 530xi (2007)

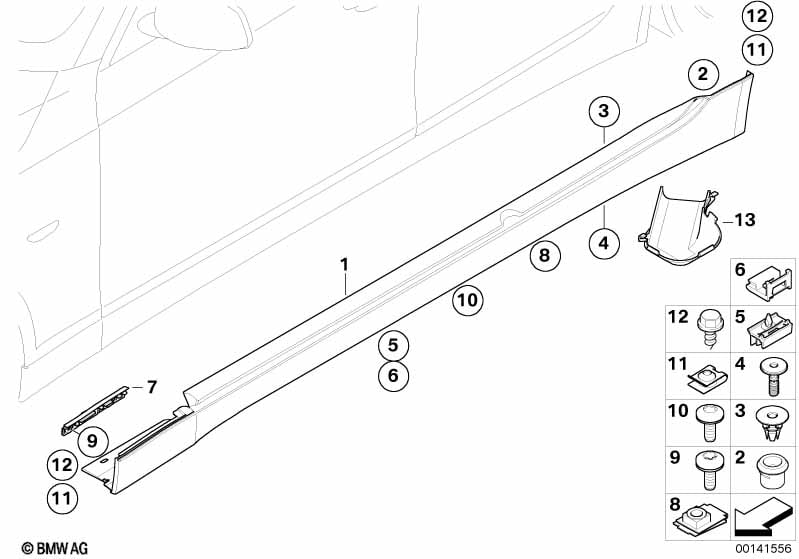

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door sill cover, primed left | 1 | 03/2007 | 51717066221 | $240.92 | Shop at ECS Tuning | ||||
| 01 | Door sill cover, primed right | 1 | 03/2007 | 51717066222 | $240.92 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Door sill cover, painted left | CODE - UNI/MET. | 1 | 03/2007 | 51130150277 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover, door sill, painted right | CODE - UNI/MET. | 1 | 03/2007 | 51710150278 | ENDED | Shop at ECS Tuning | |||
| 02 | Grommet, green | D=9,1MM | X | 03/2007 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
| 03 | Spacer clip | X | 03/2007 | 51717066226 | $0.61 | Shop at ECS Tuning | ||||
| 04 | Securing pin | X | 03/2007 | 51717066229 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Clip | X | 03/2007 | 51717066223 | $1.11 | Shop at ECS Tuning | ||||
| 06 | Clip | 2 | 03/2007 | 51717066220 | $1.11 | Shop at ECS Tuning | ||||
| 07 | Supporting ledge left | 1 | 03/2007 | 51717066227 | $12.23 | Shop at ECS Tuning | ||||
| 07 | Supporting ledge right | 1 | 03/2007 | 51717066228 | $12.23 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | M6 | 4 | 03/2007 | 07142452506 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | 4 | 03/2007 | 51247035802 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | ISA M6X18 SW | 4 | 03/2007 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 11 | Body nut | ST4,8-9-ZNS3 | 6 | 03/2007 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 12 | Sheet metal screw | ST 6,3 X 25 | 6 | 03/2007 | 07119904935 | $0.53 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530xi Cover door sill / wheel arch?
- This technical diagram illustrates the Cover door sill / wheel arch within the Vehicle trim group for the 5 Series E60 530xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Door sill cover, primed left (Part #51717066221).
- Which models use the hardware listed in this Cover door sill / wheel arch?
- The hardware and components featured in the Cover door sill / wheel arch are specific to the 5 Series E60 530xi produced during 2007. These technical specifications ensure that parts like the Door sill cover, primed left (51717066221) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover door sill / wheel arch assembly?
- Each item in the Cover door sill / wheel arch corresponds to the numbered list below the illustration. For the 5 Series E60 530xi, you can identify the Door sill cover, primed left by locating its position on the schematic, which then links to the official BMW part number 51717066221 for the Vehicle trim section.
