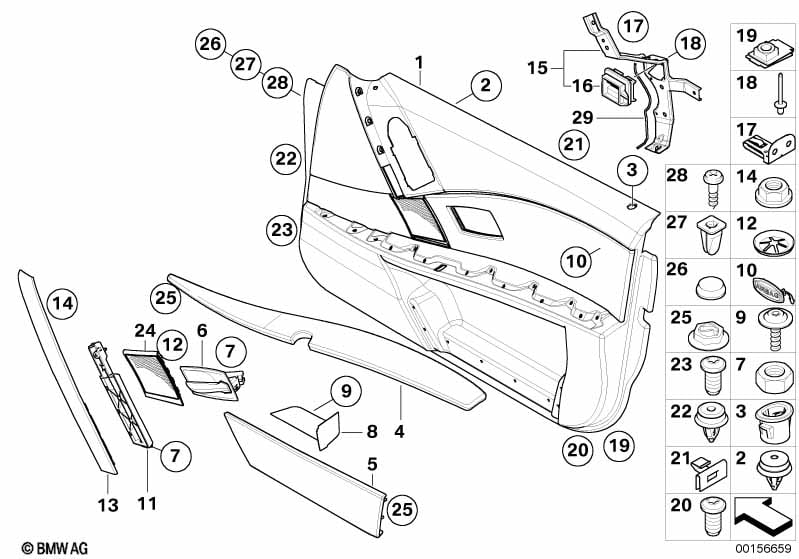

Door trim panel, front / side airbag for BMW 5 Series E60 535d (2007)
This Door trim panel, front / side airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | With option light package Door trim panel to be cut out at the places marked Caution! If item 1 is required, items 4, 5, 12, and 25 must also be ordered. |
|||||||||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 01 | Door trim panel, front left | BEIGE | 1 | 51417076193 | $816.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | BEIGE | 1 | 51417076194 | $816.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51417076763 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51417076764 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51417076185 | $1019.33 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51417076186 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 01 | Door trim panel, front left | AMETHYST | 1 | 51417076173 | $1019.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | AMETHYST | 1 | 51417076174 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 01 | Door trim panel, front left | TRÜFFELBRAUN | 1 | 51417076163 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | TRÜFFELBRAUN | 1 | 51417076164 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige |
ABBA=Yes |
|||||||||
| 01 | Door trim panel, front left | BEIGE | 1 | 51417076155 | $709.86 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | BEIGE | 1 | 51417076156 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather flashlight/anthracite |
GAAT=Yes |
|||||||||
| 01 | Door panel, leather, front left | ANTHRAZIT | 1 | 51417918791 | $1026.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | ANTHRAZIT | 1 | 51417918792 | $1026.72 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 01 | Door trim panel, front left | TRÜFFELBRAUN | 1 | 51417076171 | $1019.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | TRÜFFELBRAUN | 1 | 51417076172 | $856.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 01 | Door trim panel, front left | KASTANIENBRAUN | 1 | 51417076175 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | KASTANIENBRAUN | 1 | 51417076176 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Door trim panel, front left | GRAU | 1 | 51417076169 | $1019.33 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | GRAU | 1 | 51417076170 | $1019.33 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau |
ABAD=Yes |
|||||||||
| 01 | Door trim panel, front left | GRAU | 1 | 51417076157 | $664.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | GRAU | 1 | 51417076158 | $664.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/anthrazit |
ABAT=Yes |
|||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 51417076153 | $664.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 51417076154 | $664.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 51417076191 | $816.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 51417076192 | $816.33 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 01 | Door trim panel, front left | AMETHYST | 1 | 51417076187 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | AMETHYST | 1 | 51417076188 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51416970933 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51416970934 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | BEIGE | 1 | 51416970935 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | BEIGE | 1 | 51416970936 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 01 | Door trim panel, front left | BEIGE | 1 | 51417076167 | $1019.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | BEIGE | 1 | 51417076168 | $1019.33 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 51417076161 | $664.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 51417076162 | $709.86 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | GRAU | 1 | 51416970937 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | GRAU | 1 | 51416970938 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 09/2005 | 51417076763 | $1019.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 09/2005 | 51417076764 | $1019.33 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 01 | Door trim panel, front left | BEIGE | 1 | 09/2005 | 51417076167 | $1019.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | BEIGE | 1 | 09/2005 | 51417076168 | $1019.33 | Shop at ECS Tuning | |||
| 02 | Clip, red | 12 | 07146962771 | $0.28 | Shop at ECS Tuning | |||||
| 02 | Clip Natur | 12 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Locking sleeve | 2 | 51417066032 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 04 | Armrest, left | BEIGE | 1 | 51417134151 | $176.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | BEIGE | 1 | 51417134152 | $176.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 04 | Armrest, left | GRAU | 1 | 51417134153 | $176.35 | Shop at ECS Tuning | ||||
| 04 | Armrest, right | GRAU | 1 | 51417134154 | $176.35 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca" |
U6=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 10/2004 | 51417134149 | $176.35 | Shop at ECS Tuning | |||
| 04 | Armrest, right | SCHWARZ | 1 | 10/2004 | 51417134150 | $176.35 | Shop at ECS Tuning | |||
| 04 | Armrest, left | BEIGE | 1 | 10/2004 | 51417134151 | $176.35 | ENDED | Shop at ECS Tuning | ||
| 04 | Armrest, right | BEIGE | 1 | 10/2004 | 51417134152 | $176.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric "Edward" or Cloth "Fluid" |
AB=Yes AL=Yes |
|||||||||
| 04 | Armrest, left | GRAU | 1 | 51417133249 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | GRAU | 1 | 51417133250 | $58.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather flashlight/anthracite or Leather filled napa "Skin"/schwarz |
GAAT=Yes LDSW=Yes |
|||||||||
| 04 | Armrest, leather left | SCHWARZ | 1 | 51417066043 | $176.35 | Shop at ECS Tuning | ||||
| 04 | Armrest, leather right | SCHWARZ | 1 | 51417066044 | $176.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward" or Cloth "Fluid" or Imitation leather |
AB=Yes AL=Yes KB=Yes |
|||||||||
| 04 | Armrest, left | BEIGE | 1 | 51417133247 | $58.59 | Shop at ECS Tuning | ||||
| 04 | Armrest, right | BEIGE | 1 | 51417133248 | $58.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward" or Cloth "Fluid" or Fabric/leather "React/Oregon" or Imitation leather |
AB=Yes AL=Yes FB=Yes KB=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 72127076759 | $59.22 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | SCHWARZ | 1 | 72127076760 | $59.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst or Leather "Dakota"/kastanienbraun or Leather "Dakota"/schwarz or Leather "Dakota"/trüffel-braun |
LCRH=Yes LCRK=Yes LCSW=Yes LCTE=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 51417134149 | $176.35 | Shop at ECS Tuning | ||||
| 04 | Armrest, right | SCHWARZ | 1 | 51417134150 | $176.35 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 05 | Door pocket, front left | GRAU | 1 | 51417076793 | $46.92 | Shop at ECS Tuning | ||||
| 05 | Door pocket, front right | GRAU | 1 | 51417076794 | $46.92 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 05 | Door pocket, front left | TRÜFFELBRAUN | 1 | 51417076795 | $46.92 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Door pocket, front right | TRÜFFELBRAUN | 1 | 51417076796 | $46.31 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 05 | Door pocket, front left | BEIGE | 1 | 51417076791 | $46.92 | ENDED | Shop at ECS Tuning | |||
| 05 | Door pocket, front right | BEIGE | 1 | 51417076792 | $46.92 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 05 | Door pocket, front left | SCHWARZ | 1 | 51417076789 | $46.92 | ENDED | Shop at ECS Tuning | |||
| 05 | Door pocket, front right | SCHWARZ | 1 | 51417076790 | $46.92 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNS3 | X | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Coinbox, left | SCHWARZ | 1 | 51417076831 | $35.46 | Shop at ECS Tuning | ||||
| 08 | Coinbox, left | BEIGE | 1 | 51417076833 | $35.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Coinbox, left | GRAU | 1 | 51417076835 | $35.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Coinbox, left | TRÜFFELBRAUN | 1 | 51417076837 | $35.46 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head screw | 2 | 07147120341 | $2.25 | Shop at ECS Tuning | |||||
| 10 | Plaque Airbag | BEIGE | 2 | 51417076807 | $4.75 | Shop at ECS Tuning | ||||
| 10 | Plaque Airbag | GRAU | 2 | 51417076808 | $4.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Plaque Airbag | SCHWARZ | 2 | 51417076810 | $4.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Label "Side airbag" | AMETHYST | 2 | 51417076811 | $3.94 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 11 | Handle lower part, front left | GRAU | 1 | 51417076293 | $18.76 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | GRAU | 1 | 51417076294 | $18.76 | Shop at ECS Tuning | ||||
| For vehicles with grey ONLY APPLIES TO WOODEN COVER |
AD=Yes |
|||||||||
| 11 | Handle lower part, front left | GRAU | 1 | 51417076777 | $14.29 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | GRAU | 1 | 51417076778 | $14.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 11 | Handle lower part, front left | TRÜFFELBRAUN | 1 | 51417076295 | $18.76 | ENDED | Shop at ECS Tuning | |||
| 11 | Handle lower part, front right | TRÜFFELBRAUN | 1 | 51417076296 | $18.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun ONLY APPLIES TO WOODEN COVER |
TE=Yes |
|||||||||
| 11 | Handle lower part, front left | TRÜFFELBRAUN | 1 | 51417076779 | $14.29 | ENDED | Shop at ECS Tuning | |||
| 11 | Handle lower part, front right | TRÜFFELBRAUN | 1 | 51417076780 | $14.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 11 | Handle lower part, front left | BEIGE | 1 | 51417076291 | $18.76 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | BEIGE | 1 | 51417076292 | $18.76 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 ONLY APPLIES TO WOODEN COVER |
BA=Yes |
|||||||||

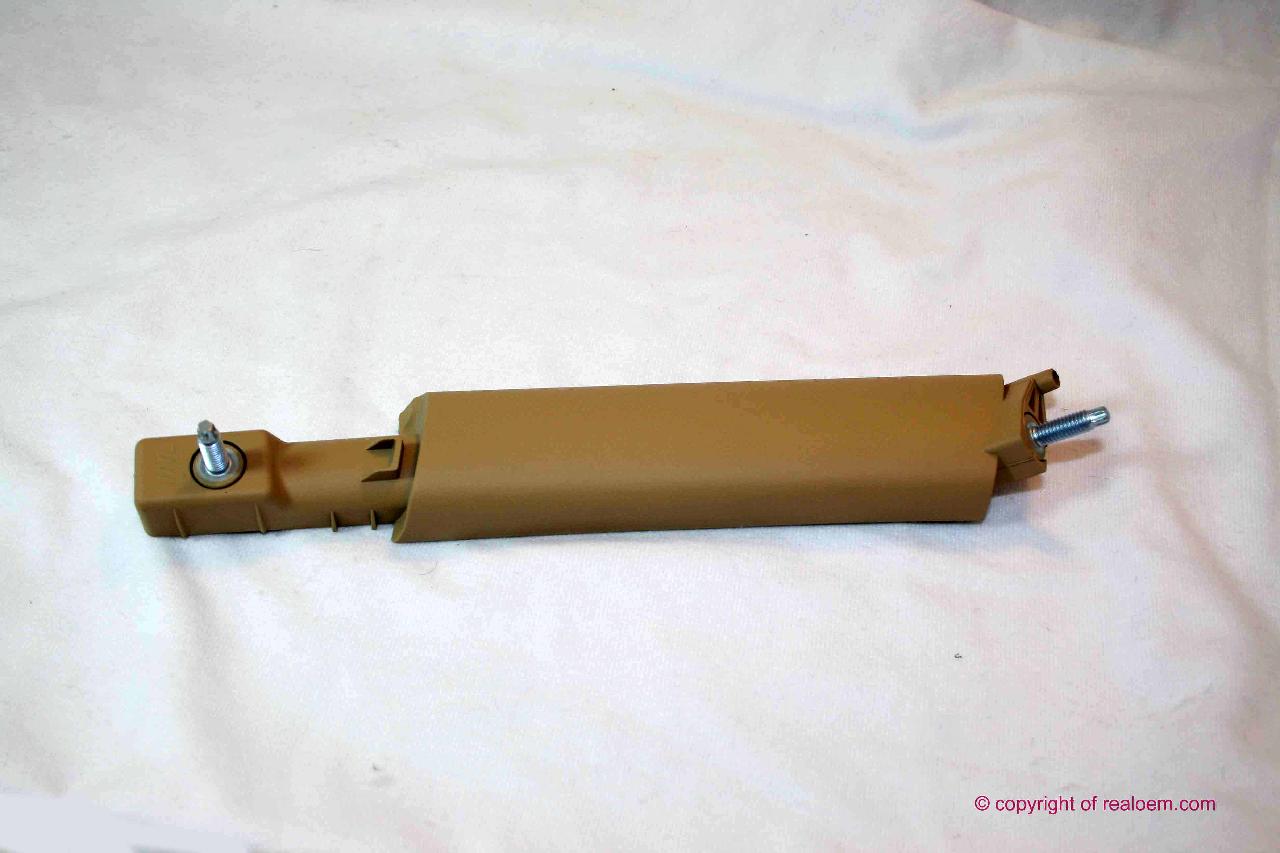

| 11 | Handle lower part, front left | BEIGE | 1 | 51417076775 | $14.29 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | BEIGE | 1 | 51417076776 | $14.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 11 | Handle lower part, front left | SCHWARZ | 1 | 51417076289 | $19.98 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | SCHWARZ | 1 | 51417076290 | $19.98 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black ONLY APPLIES TO WOODEN COVER |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 11 | Handle lower part, front left | SCHWARZ | 1 | 51417076773 | $13.49 | Shop at ECS Tuning | ||||
| 11 | Handle lower part, front right | SCHWARZ | 1 | 51417076774 | $13.49 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||

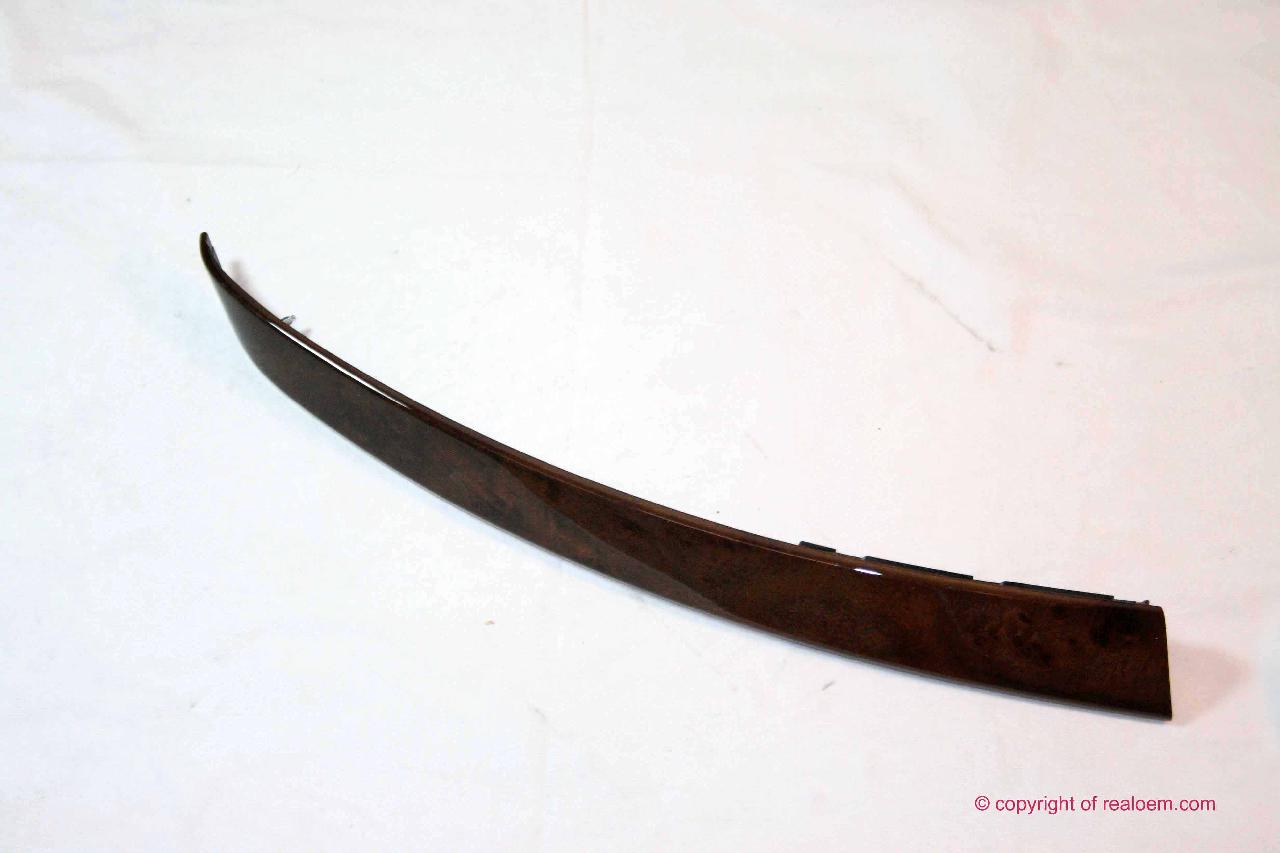

| 13 | Wood panel poplar woodgrain,front left | BRAUN | 1 | 51416959333 | $110.95 | Shop at ECS Tuning | ||||
| 13 | Wood panel poplar woodgrain,front right | BRAUN | 1 | 51416959334 | $110.95 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers, matt chrome |
S439A=Yes |
|||||||||
| 13 | Handle upper part, front left | RUTHENIUM | 1 | 51417076299 | $119.73 | Shop at ECS Tuning | ||||
| 13 | Handle upper part, front right | RUTHENIUM | 1 | 51417076300 | $119.73 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers Titanium dark |
S4ALA=Yes |
|||||||||
| 13 | Handle upper part, front left | TITAN II DUNKEL | 1 | 51417076297 | $54.11 | Shop at ECS Tuning | ||||
| 13 | Handle upper part, front right | TITAN II DUNKEL | 1 | 51417076298 | $54.11 | Shop at ECS Tuning | ||||
| For vehicles with Interior moldings Alu Cube Pure |
S4M3A=Yes |
|||||||||
| 13 | Handle upper part, front left | ALU CUBE PURE | 1 | 51417899399 | $113.22 | ENDED | Shop at ECS Tuning | |||
| 13 | Handle upper part, front right | ALU CUBE PURE | 1 | 51417899400 | $113.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 13 | Wood panel Maple Sycamore,front left | ANTHRAZIT | 1 | 51417076781 | $121.98 | Shop at ECS Tuning | ||||
| 13 | Wood panel Maple Sycamore,front right | ANTHRAZIT | 1 | 51417076782 | $121.98 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers and Fabric "Edward" or Fabric/leather "React/Oregon" or Imitation leather or Leather "Dakota" or Leather filled napa "Skin" |
S439A=Yes AB=Yes FB=Yes KB=Yes LC=Yes LD=Yes |
|||||||||
| 13 | Handle upper part, front left | ALU FEINSCHLIFF | 1 | 51416952711 | $108.32 | ENDED | Shop at ECS Tuning | |||
| 13 | Handle upper part, front right | ALU FEINSCHLIFF | 1 | 51416952712 | $108.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim and Fabric "Edward" or Fabric/leather "React/Oregon" or Imitation leather or Leather "Dakota" or Leather filled napa "Skin" or Leather "Nasca" or fawn-brown or lupus-grau or creme light & navy-blue |
S437A=Yes AB=Yes FB=Yes KB=Yes LC=Yes LD=Yes U6=Yes FB=Yes LD=Yes U6=Yes |
|||||||||
| 13 | Wood panel poplar woodgrain,front left | HELL | 1 | 51417076803 | $121.98 | Shop at ECS Tuning | ||||
| 13 | Wood panel poplar woodgrain,front right | HELL | 1 | 51417076804 | $121.98 | Shop at ECS Tuning | ||||
| 14 | Hex nut wiht flange | M4 | X | 11119127241 | Shop at ECS Tuning | |||||
| 15 | Bar left | 1 | 51417066041 | $13.14 | Shop at ECS Tuning | |||||
| 15 | Bar right | 1 | 51417066042 | $13.14 | ENDED | Shop at ECS Tuning | ||||
| 16 | Grip support | 2 | 51418156532 | $0.77 | Shop at ECS Tuning | |||||
| 17 | Grip bracket | 2 | 07147130674 | $1.00 | Shop at ECS Tuning | |||||
| 18 | Blind rivet | 5X10 | 4 | 11811139167 | $0.32 | Shop at ECS Tuning | ||||
| 19 | C-clip nut | M6 | 2 | 07142452506 | Shop at ECS Tuning | |||||
| 20 | Fillister head screw | 2 | 51417066337 | $0.47 | Shop at ECS Tuning | |||||
| 21 | Clamp | 0,8MM | 2 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 22 | Clip with seal ring | GRAU | 4 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 23 | Fillister head screw | 2 | 51417066337 | $0.47 | Shop at ECS Tuning | |||||
| 24 | Cover f left loudspeaker | BEIGE | 1 | 51417076739 | $16.05 | Shop at ECS Tuning | ||||
| 24 | Cover f right loudspeaker | BEIGE | 1 | 51417076740 | $16.05 | Shop at ECS Tuning | ||||
| 24 | Cover f left loudspeaker | GRAU | 1 | 51417076741 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 24 | Cover f right loudspeaker | GRAU | 1 | 51417076742 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 24 | Cover f left loudspeaker | SCHWARZ | 1 | 51417076745 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 24 | Cover f right loudspeaker | SCHWARZ | 1 | 51417076746 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 24 | Cover f left loudspeaker | AMETHYST | 1 | 51417076747 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 24 | Cover f right loudspeaker | AMETHYST | 1 | 51417076748 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 25 | Nut | 6 MM | X | 07147141004 | $0.73 | Shop at ECS Tuning | ||||
| 26 | Cap | SCHWARZ | 2 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 26 | Cap | BEIGE | 2 | 51167063873 | $0.41 | Shop at ECS Tuning | ||||
| 26 | Cap | TRUEFFELBRAUN | 2 | 51167076785 | $0.41 | ENDED | Shop at ECS Tuning | |||
| 26 | Cap | GRAU | 2 | 51167076786 | $0.41 | Shop at ECS Tuning | ||||
| 27 | Expanding nut | 7X7 MM | 2 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 28 | Sheet metal screw | ST4,2X19 | 2 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 29 | Edge protection | 1 | 51419123490 | $8.69 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 535d Door trim panel, front / side airbag?
- This technical diagram illustrates the Door trim panel, front / side airbag within the Vehicle trim group for the 5 Series E60 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, front left (Part #51417076193).
- Which models use the hardware listed in this Door trim panel, front / side airbag?
- The hardware and components featured in the Door trim panel, front / side airbag are specific to the 5 Series E60 535d produced during 2007. These technical specifications ensure that parts like the Door trim panel, front left (51417076193) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front / side airbag assembly?
- Each item in the Door trim panel, front / side airbag corresponds to the numbered list below the illustration. For the 5 Series E60 535d, you can identify the Door trim panel, front left by locating its position on the schematic, which then links to the official BMW part number 51417076193 for the Vehicle trim section.
