Roof moulding/Roof rail for BMW 5 Series E60 535d (2007)

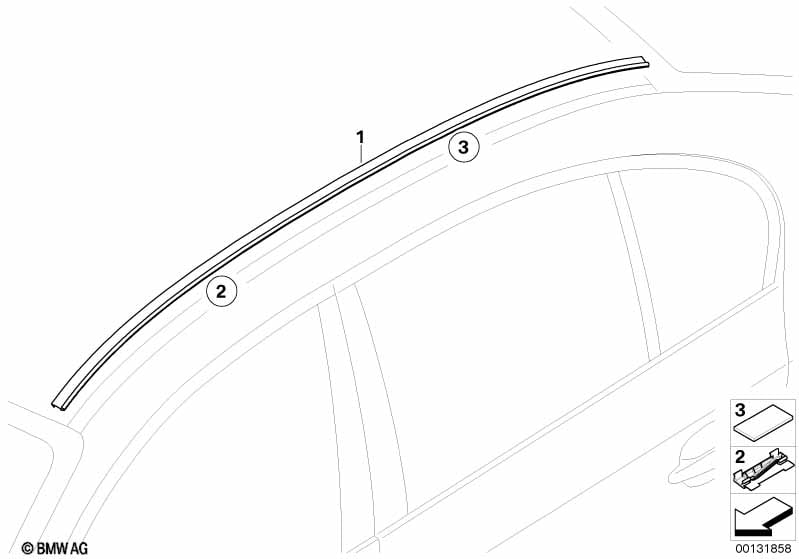

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof molding prime-coated left | 1 | 51137115191 | $94.92 | Shop at ECS Tuning | |||||
| 01 | Roof molding prime-coated right | 1 | 51137115192 | $94.92 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130031141 | $362.70 | ENDED | Shop at ECS Tuning | |||
| 01 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130031142 | $362.70 | ENDED | Shop at ECS Tuning | |||
| 02 | Clip | X | 51137064097 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Absorbing piece | 30X15X10 | 2 | 51138209642 | $1.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 535d Roof moulding/Roof rail?
- This technical diagram illustrates the Roof moulding/Roof rail within the Vehicle trim group for the 5 Series E60 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Roof molding prime-coated left (Part #51137115191).
- Which models use the hardware listed in this Roof moulding/Roof rail?
- The hardware and components featured in the Roof moulding/Roof rail are specific to the 5 Series E60 535d produced during 2007. These technical specifications ensure that parts like the Roof molding prime-coated left (51137115191) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof moulding/Roof rail assembly?
- Each item in the Roof moulding/Roof rail corresponds to the numbered list below the illustration. For the 5 Series E60 535d, you can identify the Roof molding prime-coated left by locating its position on the schematic, which then links to the official BMW part number 51137115191 for the Vehicle trim section.
