Door trim, rear for BMW 5 Series E60 530xi (2007)

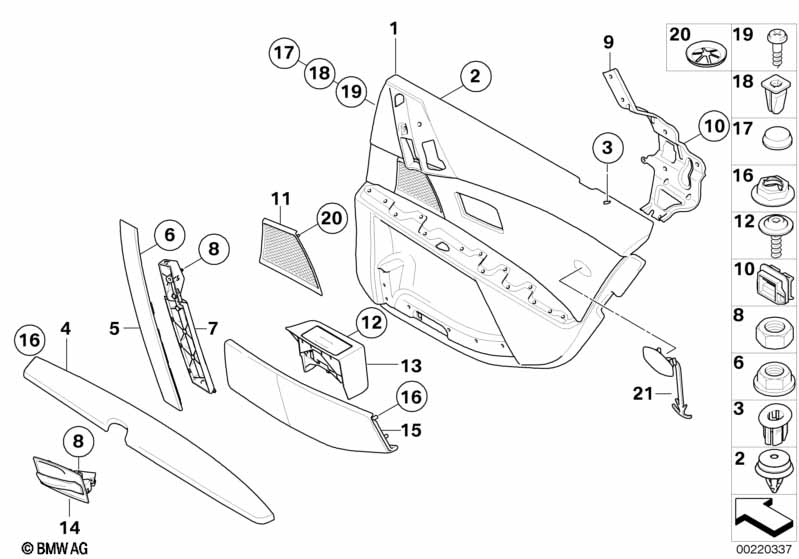

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! If Pos.1 is required, Pos. 4, 15, and 11 must also be ordered. For vehicles with Side airbags for rear passengers |
S261A=No |
||||||||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51426970973 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51426970974 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 01 | Door lining cloth rear left | TRÜFFELBRAUN | 1 | 51427078737 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | TRÜFFELBRAUN | 1 | 51427078738 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 01 | Door lining leather rear left | TRÜFFELBRAUN | 1 | 51427078747 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | TRÜFFELBRAUN | 1 | 51427078748 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Edward"/grau |
ABAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51427078731 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51427078732 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078749 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078750 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427078743 | $1008.56 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427078744 | $1008.56 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU | 1 | 51427078745 | $1008.56 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | GRAU | 1 | 51427078746 | $1008.56 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078741 | $1008.56 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078742 | $1008.56 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 51427078735 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 51427078736 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather flashlight/anthracite |
GAAT=Yes |
|||||||||
| 01 | Door lining leather rear left | ANTHRAZIT | 1 | 51427918807 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | ANTHRAZIT | 1 | 51427918808 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Edward"/beige |
ABBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51427078729 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51427078730 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 01 | Door lining leather rear left | KASTANIENBRAUN | 1 | 51427078751 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | KASTANIENBRAUN | 1 | 51427078752 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51426970971 | $807.70 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51426970972 | $807.70 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078761 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078762 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Edward"/anthrazit |
ABAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427078727 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427078728 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078763 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078764 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51426970975 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51426970976 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP and Cloth "Fluid" or "Linea"/beige |
S677A=Yes ALBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51426970989 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51426970990 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP and Cloth/leather flashlight/anthracite |
S677A=Yes GAAT=Yes |
|||||||||
| 01 | Door lining leather rear left | ANTHRAZIT | 1 | 51427918815 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | ANTHRAZIT | 1 | 51427918816 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP and Cloth "Fluid" or "Linea"/grey |
S677A=Yes ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51426970991 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51426970992 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP and Cloth "Fluid" or "Linea"/anthracite |
S677A=Yes ALAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51426970987 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51426970988 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 09/2005 | 51427078741 | $1008.56 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 09/2005 | 51427078742 | $1008.56 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 09/2005 | 51417277737 | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 09/2005 | 51427078605 | $915.67 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | BEIGE | 1 | 09/2005 | 51427078606 | $915.67 | ENDED | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/kastanienbraun |
S677A=Yes S752A=Yes LCRK=Yes |
|||||||||
| 01 | Door lining leather rear left | KASTANIENBRAUN | 1 | 51427078843 | $856.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | KASTANIENBRAUN | 1 | 51427078844 | $1008.56 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/grau |
S416A=Yes S417A=Yes LCAD=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU | 1 | 51427078883 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | GRAU | 1 | 51427078884 | $1101.41 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Fabric "Edward"/beige |
S416A=Yes S417A=Yes ABBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51427078867 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51427078868 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/trüffel-braun |
S416A=Yes S417A=Yes LCTE=Yes |
|||||||||
| 01 | Door lining leather rear left | TRÜFFELBRAUN | 1 | 51427078885 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | TRÜFFELBRAUN | 1 | 51427078886 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather filled napa "Skin"/amethyst |
S416A=Yes S417A=Yes LDRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078901 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078902 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather filled napa "Skin"/schwarz |
S677A=Yes S752A=Yes LDSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078853 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Fabric "Edward"/beige |
S677A=Yes S752A=Yes ABBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51427078821 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51427078822 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Fabr./leath."React/Oregon"/trüffel-braun |
S677A=Yes S752A=Yes FBTE=Yes |
|||||||||
| 01 | Door lining cloth rear left | TRÜFFELBRAUN | 1 | 51427078829 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | TRÜFFELBRAUN | 1 | 51427078830 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather filled napa "Skin"/schwarz |
S416A=Yes S417A=Yes LDSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078899 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078900 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Fabric "Edward"/anthrazit |
S416A=Yes S417A=Yes ABAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427078865 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427078866 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Fabric "Edward"/anthrazit |
S677A=Yes S752A=Yes ABAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427078819 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427078820 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/kastanienbraun |
S416A=Yes S417A=Yes LCRK=Yes |
|||||||||
| 01 | Door lining leather rear right | KASTANIENBRAUN | 1 | 51427078890 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear left | KASTANIENBRAUN | 1 | 51427078889 | $856.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/beige |
S677A=Yes S752A=Yes LCBA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427078835 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427078836 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/schwarz |
S677A=Yes S752A=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078833 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078834 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Imitation leather, beige |
S416A=Yes S417A=Yes KBBA=Yes |
|||||||||
| 01 | Door lining vynil rear left | BEIGE | 1 | 51427078907 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining vynil rear right | BEIGE | 1 | 51427078908 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Fabr./leath."React/Oregon"/trüffel-braun |
S416A=Yes S417A=Yes FBTE=Yes |
|||||||||
| 01 | Door lining cloth rear left | TRÜFFELBRAUN | 1 | 51427078875 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | TRÜFFELBRAUN | 1 | 51427078876 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Fabric/leather "React/Oregon"/anthrazit |
S416A=Yes S417A=Yes FBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 51427078873 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 51427078874 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Cloth/leather flashlight/anthracite |
S416A=Yes S417A=Yes GAAT=Yes |
|||||||||
| 01 | Door lining leather rear left | ANTHRAZIT | 1 | 51427918819 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | ANTHRAZIT | 1 | 51427918820 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/amethyst |
S416A=Yes S417A=Yes LCRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078887 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078888 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather filled napa "Skin"/amethyst |
S677A=Yes S752A=Yes LDRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078855 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078856 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/schwarz |
S416A=Yes S417A=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078879 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078880 | $1101.41 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Cloth "Fluid" or "Linea"/grey |
S416A=Yes S417A=Yes ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51426974891 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51426974892 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/grau |
S677A=Yes S752A=Yes LCAD=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU | 1 | 51427078837 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | GRAU | 1 | 51427078838 | $1008.56 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Fabric "Edward"/grau |
S677A=Yes S752A=Yes ABAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51427078823 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51427078824 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Fabric "Edward"/grau |
S416A=Yes S417A=Yes ABAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51427078869 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51427078870 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Imitation leather/black |
S416A=Yes S417A=Yes KBSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51427078905 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51427078906 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP and Leather "Dakota"/trüffel-braun |
S676A=Yes S677A=Yes LCTE=Yes |
|||||||||
| 01 | Door lining leather rear left | TRÜFFELBRAUN | 1 | 51427078839 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | TRÜFFELBRAUN | 1 | 51427078840 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Cloth "Fluid" or "Linea"/anthracite |
S416A=Yes S417A=Yes ALAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51426970995 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51426970996 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Leather "Dakota"/beige |
S416A=Yes S417A=Yes LCBA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427078881 | $1101.41 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427078882 | $1101.41 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Fabric/leather "React/Oregon"/anthrazit |
S677A=Yes S752A=Yes FBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 51427078827 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 51427078828 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Individual audio system and Leather "Dakota"/amethyst |
S677A=Yes S752A=Yes LCRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078841 | $856.53 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078842 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and HiFi System Professional DSP and Leather "Nasca"/beige |
S453A=Yes S677A=Yes U6BA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427078651 | $915.67 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427078652 | $915.67 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door and Cloth "Fluid" or "Linea"/beige |
S416A=Yes S417A=Yes ALBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51426970997 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51426970998 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Fabr./leath."React/Oregon"/trüffel-braun |
S416A=Yes S417A=Yes S677A=Yes FBTE=Yes |
|||||||||
| 01 | Door lining cloth rear left | TRÜFFELBRAUN | 1 | 51427078921 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | TRÜFFELBRAUN | 1 | 51427078922 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Fabric "Edward"/anthrazit |
S416A=Yes S417A=Yes S677A=Yes ABAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427078911 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427078912 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/beige |
S416A=Yes S417A=Yes S677A=Yes LCBA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427078927 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427078928 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Imitation leather, beige |
S416A=Yes S417A=Yes S677A=Yes KBBA=Yes |
|||||||||
| 01 | Door lining vynil rear left | BEIGE | 1 | 51427078953 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining vynil rear right | BEIGE | 1 | 51427078954 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather filled napa "Skin"/schwarz |
S416A=Yes S417A=Yes S677A=Yes LDSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078945 | $856.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078946 | $856.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Fabric "Edward"/beige |
S416A=Yes S417A=Yes S677A=Yes ABBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51427078913 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51427078914 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather filled napa "Skin"/amethyst |
S416A=Yes S417A=Yes S677A=Yes LDRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078947 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078948 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Cloth/leather flashlight/anthracite |
S416A=Yes S417A=Yes S677A=Yes GAAT=Yes |
|||||||||
| 01 | Door lining leather rear left | ANTHRAZIT | 1 | 51427918823 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | ANTHRAZIT | 1 | 51427918824 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Cloth "Fluid" or "Linea"/anthracite |
S416A=Yes S417A=Yes S677A=Yes ALAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51426974895 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51426974896 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/trüffel-braun |
S416A=Yes S417A=Yes S677A=Yes LCTE=Yes |
|||||||||
| 01 | Door lining leather rear left | TRÜFFELBRAUN | 1 | 51427078931 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | TRÜFFELBRAUN | 1 | 51427078932 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Fabric/leather "React/Oregon"/anthrazit |
S416A=Yes S417A=Yes S677A=Yes FBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 51427078919 | $664.02 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 51427078920 | $664.02 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Fabric "Edward"/grau |
S416A=Yes S417A=Yes S677A=Yes ABAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51427078915 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51427078916 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/amethyst |
S416A=Yes S417A=Yes S677A=Yes LCRH=Yes |
|||||||||
| 01 | Door lining leather rear left | AMETHYST | 1 | 51427078933 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | AMETHYST | 1 | 51427078934 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and HiFi speaker system and HiFi System Professional DSP and Leather "Nasca"/black |
S453A=Yes S676A=Yes S677A=Yes U6SW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 09/2005 | 51427078649 | $915.67 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 09/2005 | 51427078650 | $915.67 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/kastanienbraun |
S416A=Yes S417A=Yes S677A=Yes LCRK=Yes |
|||||||||
| 01 | Door lining leather rear left | KASTANIENBRAUN | 1 | 51427078935 | $1101.41 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | KASTANIENBRAUN | 1 | 51427078936 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/grau |
S416A=Yes S417A=Yes S677A=Yes LCAD=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU | 1 | 51427078929 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | GRAU | 1 | 51427078930 | $1101.41 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Leather "Dakota"/schwarz |
S416A=Yes S417A=Yes S677A=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427078925 | $1101.41 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427078926 | $1101.41 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Cloth "Fluid" or "Linea"/grey |
S416A=Yes S417A=Yes S677A=Yes ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51426974899 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | GRAU | 1 | 51426974900 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Cloth "Fluid" or "Linea"/beige |
S416A=Yes S417A=Yes S677A=Yes ALBA=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51426974897 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51426974898 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and HiFi System Professional DSP and Imitation leather/black |
S416A=Yes S417A=Yes S677A=Yes KBSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51427078951 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51427078952 | $664.02 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Climate-controlled seats, front and Leather "Dakota"/beige or Leather "Nasca"/beige |
S416A=Yes S417A=Yes S453A=Yes LCBA=Yes U6BA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 09/2005 | 51427078881 | $1101.41 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 09/2005 | 51427078882 | $1101.41 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 09/2005 | 51417277735 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Climate-controlled seats, front and HiFi System Professional DSP and Leather "Nasca"/beige |
S416A=Yes S417A=Yes S453A=Yes S677A=Yes U6BA=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 09/2005 | 51427078927 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | BEIGE | 1 | 09/2005 | 51427078928 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Badge | BEIGE | 1 | 09/2005 | 51417277735 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Climate-controlled seats, front and Leather "Dakota"/schwarz or Leather "Nasca"/black |
S416A=Yes S417A=Yes S453A=Yes LCSW=Yes U6SW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 09/2005 | 51427078879 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 09/2005 | 51427078880 | $1101.41 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 09/2005 | 51417277737 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Roller sun vizor, rear door and Climate-controlled seats, front and HiFi System Professional DSP and Leather "Nasca"/black |
S416A=Yes S417A=Yes S453A=Yes S677A=Yes U6SW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 09/2005 | 51427078925 | $1101.41 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 09/2005 | 51427078926 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Badge | SCHWARZ | 1 | 09/2005 | 51417277737 | Shop at ECS Tuning | ||||
| 02 | Clip Natur | 14 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Locking sleeve | 2 | 51417066032 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" |
AL=Yes |
|||||||||
| 04 | Armrest, left | GRAU | 1 | 51427133253 | $67.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | GRAU | 1 | 51427133254 | $65.84 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" |
LC=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 51427134157 | $168.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | SCHWARZ | 1 | 51427134158 | $168.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, left | BEIGE | 1 | 51427134159 | $168.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | BEIGE | 1 | 51427134160 | $168.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, left | GRAU | 1 | 51427134161 | $168.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | GRAU | 1 | 51427134162 | $168.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca" |
U6=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 10/2004 | 51427134157 | $168.76 | ENDED | Shop at ECS Tuning | ||
| 04 | Armrest, right | SCHWARZ | 1 | 10/2004 | 51427134158 | $168.76 | ENDED | Shop at ECS Tuning | ||
| 04 | Armrest, left | BEIGE | 1 | 10/2004 | 51427134159 | $168.76 | ENDED | Shop at ECS Tuning | ||
| 04 | Armrest, right | BEIGE | 1 | 10/2004 | 51427134160 | $168.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather flashlight or Leather filled napa "Skin" |
GA=Yes LD=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 51427079337 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | SCHWARZ | 1 | 51427079338 | $148.43 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or Imitation leather |
AL=Yes KB=Yes |
|||||||||
| 04 | Armrest, left | BEIGE | 1 | 51427133251 | $67.43 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Armrest, right | BEIGE | 1 | 51427133252 | $67.43 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward" or Cloth "Fluid" or Fabric/leather "React/Oregon" or Imitation leather |
AB=Yes AL=Yes FB=Yes KB=Yes |
|||||||||
| 04 | Armrest, left | SCHWARZ | 1 | 51427079341 | $67.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest, right | SCHWARZ | 1 | 51427079342 | $67.43 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 05 | Wood panel in poplar woodgrain,rear left | BRAUN | 1 | 51426959335 | $118.78 | Shop at ECS Tuning | ||||
| 05 | Wood panel poplar woodgrain,rear right | BRAUN | 1 | 51426959336 | $118.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 05 | Wood panel Maple Sycamore,rear left | ANTHRAZIT | 1 | 51427079461 | $121.98 | Shop at ECS Tuning | ||||
| 05 | Wood panel Maple Sycamore,rear right | ANTHRAZIT | 1 | 51427079462 | $121.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, matt chrome |
S439A=Yes |
|||||||||
| 05 | Handle upper part, rear left | RUTHENIUM | 1 | 51427079443 | $76.19 | ENDED | Shop at ECS Tuning | |||
| 05 | Handle upper part, rear right | RUTHENIUM | 1 | 51427079444 | $76.19 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Cube Pure |
S4M3A=Yes |
|||||||||
| 05 | Handle upper part, rear left | ALU CUBE PURE | 1 | 51427899401 | $68.31 | Shop at ECS Tuning | ||||
| 05 | Handle upper part, rear right | ALU CUBE PURE | 1 | 51427899402 | $68.31 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers Titanium dark |
S4ALA=Yes |
|||||||||
| 05 | Handle upper part, rear left | TITAN II DUNKEL | 1 | 51427079441 | $76.19 | Shop at ECS Tuning | ||||
| 05 | Handle upper part, rear right | TITAN II DUNKEL | 1 | 51427079442 | $76.19 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers and Fabric "Edward" or Fabric/leather "React/Oregon" or Imitation leather or Leather "Dakota" or Leather filled napa "Skin" |
S439A=Yes AB=Yes FB=Yes KB=Yes LC=Yes LD=Yes |
|||||||||
| 05 | Handle upper part, rear left | ALU FEINSCHLIFF | 1 | 51426952713 | $113.22 | Shop at ECS Tuning | ||||
| 05 | Handle upper part, rear right | ALU FEINSCHLIFF | 1 | 51426952714 | $113.22 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim and Fabric "Edward" or Fabric/leather "React/Oregon" or Imitation leather or Leather "Dakota" or Leather filled napa "Skin" |
S437A=Yes AB=Yes FB=Yes KB=Yes LC=Yes LD=Yes |
|||||||||
| 05 | Wood panel in poplar woodgrain,rear left | HELL | 1 | 51427079445 | $121.98 | ENDED | Shop at ECS Tuning | |||
| 05 | Wood panel poplar woodgrain,rear right | HELL | 1 | 51427079446 | $121.98 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut wiht flange | M4 | 2 | 11119127241 | Shop at ECS Tuning | |||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 07 | Handle lower part, rear left | BEIGE | 1 | 51427079435 | $18.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | BEIGE | 1 | 51427079436 | $18.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 ONLY APPLIES TO WOODEN COVER |
BA=Yes |
|||||||||
| 07 | Handle lower part, rear left | BEIGE | 1 | 51427079455 | $14.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | BEIGE | 1 | 51427079456 | $14.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 07 | Handle lower part, rear left | TRÜFFELBRAUN | 1 | 51427079439 | $18.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | TRÜFFELBRAUN | 1 | 51427079440 | $17.86 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun ONLY APPLIES TO WOODEN COVER |
TE=Yes |
|||||||||
| 07 | Handle lower part, rear left | TRÜFFELBRAUN | 1 | 51427079459 | $13.50 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | TRÜFFELBRAUN | 1 | 51427079460 | $13.50 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 07 | Handle lower part, rear left | GRAU | 1 | 51427079437 | $18.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | GRAU | 1 | 51427079438 | $18.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey ONLY APPLIES TO WOODEN COVER |
AD=Yes |
|||||||||
| 07 | Handle lower part, rear left | GRAU | 1 | 51427079457 | $14.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | GRAU | 1 | 51427079458 | $14.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 07 | Handle lower part, rear left | SCHWARZ | 1 | 51427079433 | $19.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle lower part, rear right | SCHWARZ | 1 | 51427079434 | $19.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black ONLY APPLIES TO WOODEN COVER |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 07 | Handle lower part, rear left | SCHWARZ | 1 | 51427079453 | $13.49 | Shop at ECS Tuning | ||||
| 07 | Handle lower part, rear right | SCHWARZ | 1 | 51427079454 | $13.49 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Bar left | 1 | 51427079365 | $17.14 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bar right | 1 | 51427079366 | $17.14 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grip support | 2 | 51418156532 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Cover f left loudspeaker | BEIGE | 1 | 51417079369 | $16.05 | Shop at ECS Tuning | ||||
| 11 | Cover f right loudspeaker | BEIGE | 1 | 51417079370 | $16.05 | Shop at ECS Tuning | ||||
| 11 | Cover f left loudspeaker | GRAU | 1 | 51417079371 | $16.05 | Shop at ECS Tuning | ||||
| 11 | Cover f right loudspeaker | GRAU | 1 | 51417079372 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover f left loudspeaker | SCHWARZ | 1 | 51417079375 | $16.05 | Shop at ECS Tuning | ||||
| 11 | Cover f right loudspeaker | SCHWARZ | 1 | 51417079376 | $16.05 | Shop at ECS Tuning | ||||
| 11 | Cover f left loudspeaker | AMETHYST | 1 | 51417079377 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover f right loudspeaker | AMETHYST | 1 | 51417079378 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister head screw | 6 | 07147120341 | $2.25 | Shop at ECS Tuning | |||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 13 | Ash tray, left | BEIGE | 1 | 51417079401 | $47.61 | ENDED, +core | Shop at ECS Tuning | |||
| 13 | Ash tray, right | BEIGE | 1 | 51417079402 | $47.61 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 13 | Ash tray, left | TRÜFFELBRAUN | 1 | 51417079405 | $42.13 | +core | Shop at ECS Tuning | |||
| 13 | Ash tray, right | TRÜFFELBRAUN | 1 | 51417079406 | $42.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 13 | Ash tray, left | GRAU | 1 | 51417079403 | $47.61 | ENDED | Shop at ECS Tuning | |||
| 13 | Ash tray, right | GRAU | 1 | 51417079404 | $47.61 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 13 | Ash tray, left | SCHWARZ | 1 | 51417079399 | $47.61 | ENDED | Shop at ECS Tuning | |||
| 13 | Ash tray, right | SCHWARZ | 1 | 51417079400 | $47.61 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau or Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ABAD=Yes ALAD=Yes LCAD=Yes |
|||||||||
| 14 | Door handle, inside left, titanium | GRAU | 1 | 51217076251 | $54.60 | ENDED | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, titanium | GRAU | 1 | 51217076252 | $54.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige or Cloth "Fluid" or "Linea"/beige or Imitation leather, beige or Leather "Dakota"/beige or Leather "Nasca"/beige |
ABBA=Yes ALBA=Yes KBBA=Yes LCBA=Yes U6BA=Yes |
|||||||||
| 14 | Door handle, inside left, titanium | BEIGE | 1 | 51217076249 | $54.60 | +core | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, titanium | BEIGE | 1 | 51217076250 | $54.60 | +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim or Fine wood trim or Interior trim finishers and Leather "Dakota"/amethyst or Leather filled napa "Skin"/amethyst |
S435A=Yes S438A=Yes S439A=Yes LCRH=Yes LDRH=Yes |
|||||||||
| 14 | Door handle, inside left, ruthenium | AMETHYST | 1 | 51217076265 | $56.55 | ENDED | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, ruthenium | AMETHYST | 1 | 51217076266 | $61.10 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim or Fine wood trim or Interior trim finishers and Fabric "Edward"/grau or Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
S435A=Yes S438A=Yes S439A=Yes ABAD=Yes ALAD=Yes LCAD=Yes |
|||||||||
| 14 | Door handle, inside left, ruthenium | GRAU | 1 | 51217076261 | $56.55 | Shop at ECS Tuning | ||||
| 14 | Door handle, inside right, ruthenium | GRAU | 1 | 51217076262 | $56.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim or Fine wood trim or Interior trim finishers and Fabric "Edward"/beige or Cloth "Fluid" or "Linea"/beige or Imitation leather, beige or Leather "Dakota"/beige or Leather "Nasca"/beige |
S435A=Yes S438A=Yes S439A=Yes ABBA=Yes ALBA=Yes KBBA=Yes LCBA=Yes U6BA=Yes |
|||||||||
| 14 | Door handle, inside left, ruthenium | BEIGE | 1 | 51217076259 | $56.55 | ENDED | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, ruthenium | BEIGE | 1 | 51217076260 | $56.55 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/anthrazit or Cloth "Fluid" or "Linea"/anthracite or Fabric/leather "React/Oregon"/anthrazit or Fabr./leath."React/Oregon"/trüffel-braun or Imitation leather/black or Leather "Dakota"/kastanienbraun or Leather "Dakota"/schwarz or Leather "Dakota"/trüffel-braun or Leather filled napa "Skin"/schwarz or Leather "Nasca"/black |
ABAT=Yes ALAT=Yes FBAT=Yes FBTE=Yes KBSW=Yes LCRK=Yes LCSW=Yes LCTE=Yes LDSW=Yes U6SW=Yes |
|||||||||
| 14 | Door handle, inside left, titanium | SCHWARZ | 1 | 51217076247 | $54.60 | ENDED | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, titanium | SCHWARZ | 1 | 51217076248 | $54.60 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim or Fine wood trim or Interior trim finishers and Fabric "Edward"/anthrazit or Cloth "Fluid" or "Linea"/anthracite or Fabric/leather "React/Oregon"/anthrazit or Fabr./leath."React/Oregon"/trüffel-braun or Cloth/leather flashlight/anthracite or Imitation leather/black or Leather "Dakota"/kastanienbraun or Leather "Dakota"/schwarz or Leather "Dakota"/trüffel-braun or Leather filled napa "Skin"/schwarz or Leather "Nasca"/black |
S435A=Yes S438A=Yes S439A=Yes ABAT=Yes ALAT=Yes FBAT=Yes FBTE=Yes GAAT=Yes KBSW=Yes LCRK=Yes LCSW=Yes LCTE=Yes LDSW=Yes U6SW=Yes |
|||||||||
| 14 | Door handle, inside left, ruthenium | SCHWARZ | 1 | 51217076257 | $56.55 | ENDED | Shop at ECS Tuning | |||
| 14 | Door handle, inside right, ruthenium | SCHWARZ | 1 | 51217076258 | $56.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 15 | Door pocket, rear left | BEIGE | 1 | 51427079469 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | BEIGE | 1 | 51427079470 | $56.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 15 | Door pocket, rear left | TRÜFFELBRAUN | 1 | 51427079473 | $49.38 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | TRÜFFELBRAUN | 1 | 51427079474 | $59.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 15 | Door pocket, rear left | GRAU | 1 | 51427079471 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | GRAU | 1 | 51427079472 | $56.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Light package and beige 3 |
S563A=Yes BA=Yes |
|||||||||
| 15 | Door pocket, rear left | BEIGE | 1 | 51427079479 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | BEIGE | 1 | 51427079480 | $56.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Light package and grey |
S563A=Yes AD=Yes |
|||||||||
| 15 | Door pocket, rear left | GRAU | 1 | 51427079481 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | GRAU | 1 | 51427079482 | $56.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Light package and trüffel-braun |
S563A=Yes TE=Yes |
|||||||||
| 15 | Door pocket, rear left | TRÜFFELBRAUN | 1 | 51427079483 | $49.38 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | TRÜFFELBRAUN | 1 | 51427079484 | $49.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 15 | Door pocket, rear left | SCHWARZ | 1 | 51427079467 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | SCHWARZ | 1 | 51427079468 | $56.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Light package and anthracite or amethyst or kastanienbraun or Black |
S563A=Yes AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 15 | Door pocket, rear left | SCHWARZ | 1 | 51427079477 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Door pocket, rear right | SCHWARZ | 1 | 51427079478 | $56.68 | Shop at ECS Tuning | ||||
| 16 | Nut | 6 MM | X | 07147141004 | $0.73 | Shop at ECS Tuning | ||||
| 17 | Cap | SCHWARZ | 2 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 17 | Cap | BEIGE | 2 | 51167063873 | $0.41 | Shop at ECS Tuning | ||||
| 17 | Cap | TRUEFFELBRAUN | 2 | 51167076785 | $0.41 | ENDED | Shop at ECS Tuning | |||
| 17 | Cap | GRAU | 2 | 51167076786 | $0.41 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | 7X7 MM | 2 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Sheet metal screw | ST4,2X19 | 2 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 21 | Badge | CREMEBEIGE | 1 | 51417277738 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 21 | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 21 | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with amethyst |
RH=Yes |
|||||||||
| 21 | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or kastanienbraun or Black or trüffel-braun |
A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 21 | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530xi Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 5 Series E60 530xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Door lining cloth rear left (Part #51426970973).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 5 Series E60 530xi produced during 2007. These technical specifications ensure that parts like the Door lining cloth rear left (51426970973) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 5 Series E60 530xi, you can identify the Door lining cloth rear left by locating its position on the schematic, which then links to the official BMW part number 51426970973 for the Vehicle trim section.
