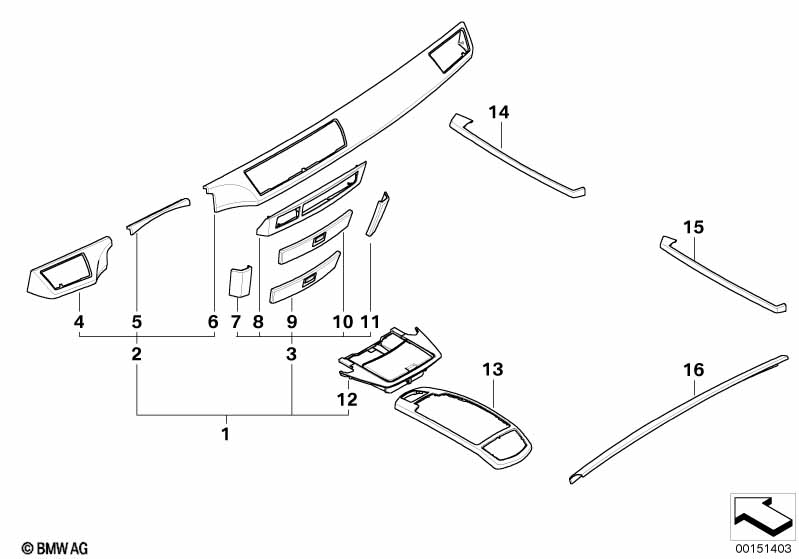

Real wood version, Vavona grau matt for BMW 7 Series E66 745Li (2005)
This Real wood version, Vavona grau matt technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 745Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Leather, Pearl |
V7=Yes |
||||||||
| 01 | Set of wood covers | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117552 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |
| 02 | Set of wood panels, instrument panel | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117554 | $633.33 | ENDED, +core | Shop at ECS Tuning | |
| 03 | Set of wood panels, module carrier | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117556 | $401.76 | ENDED, +core | Shop at ECS Tuning | |
| 04 | Wood panel, instrument panel, left | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117557 | $313.66 | ENDED | Shop at ECS Tuning | |
| 05 | Wood panel, instrument panel, center | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117559 | $133.42 | ENDED | Shop at ECS Tuning | |
| 06 | Wood panel, instrument panel, right | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117561 | $538.48 | ENDED | Shop at ECS Tuning | |
| 07 | Wood panel, module carrier, left | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117566 | $97.31 | ENDED | Shop at ECS Tuning | |
| 08 | Wood panel, radio | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117563 | $161.94 | ENDED | Shop at ECS Tuning | |
| 09 | Wood panel, drawer | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117565 | $140.37 | ENDED, +core | Shop at ECS Tuning | |
| 10 | Wood trim, draw, telephone | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117564 | $140.37 | ENDED, +core | Shop at ECS Tuning | |
| 11 | Wood panel, module carrier, right | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117567 | $97.31 | ENDED | Shop at ECS Tuning | |
| 12 | Module carrier, center console, wood | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51457117568 | $398.27 | ENDED | Shop at ECS Tuning | |
| 13 | Wood panel, center armrest, front | VAVONA GRAU | 1 | 10/2003 | 03/2005 | 51167137433 | $430.50 | Shop at ECS Tuning | ||
| 14 | Wooden strip, door front left | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51417113395 | $342.92 | ENDED | Shop at ECS Tuning | |
| 14 | Wooden strip, door front right | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51417113396 | $342.92 | ENDED | Shop at ECS Tuning | |
| 15 | Wooden strip, door rear left | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51427113399 | $299.54 | ENDED, +core | Shop at ECS Tuning | |
| 15 | Wooden strip, door rear right | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51427113400 | $299.54 | ENDED, +core | Shop at ECS Tuning | |
| 16 | Wood strip, rear window shelf | VAVONA GRAU | 1 | 03/2003 | 03/2005 | 51467123481 | $436.90 | ENDED, +core | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
