Single parts, power wind. emergency use for BMW 7 Series E67 745LiS (2008)

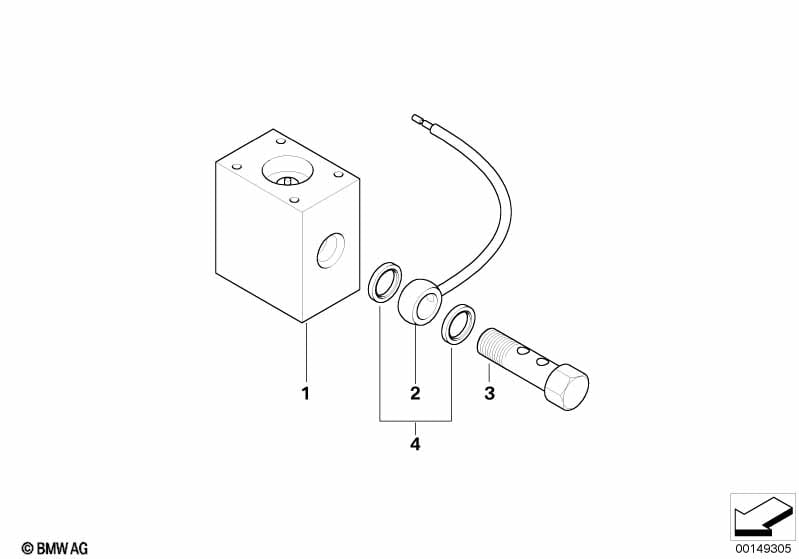

This Single parts, power wind. emergency use technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 745LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve, emergency operation, front left | 1 | 67806920423 | Shop at ECS Tuning | ||||||
| 01 | Valve, emergency operation, front right | 1 | 67806920424 | Shop at ECS Tuning | ||||||
| 01 | Valve, emergency operation, rear left | 1 | 67806921610 | Shop at ECS Tuning | ||||||
| 01 | Valve, emergency operation, rear right | 1 | 67806921611 | Shop at ECS Tuning | ||||||
| 02 | Press. line,front,emrgncy actu.unit open | L= 470MM | 1 | 67876912231 | Shop at ECS Tuning | |||||
| 02 | Press.line,frnt,emrgncy actu.unit closed | L= 470MM | 1 | 67876912232 | Shop at ECS Tuning | |||||
| 02 | Press.line,rear,emrgncy actu. unit open | 1 | 67876912235 | +core | Shop at ECS Tuning | |||||
| 02 | Press.line,rear,emrgncy actu.unit closed | 1 | 67876912236 | +core | Shop at ECS Tuning | |||||
| 03 | Hollow bolt | 1 | 67876927732 | Shop at ECS Tuning | ||||||
| 04 | Gasket set, hydraulic pipe | 1 | 67800409973 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
