Trim cover, front for BMW 6 Series E63 645Ci (2005)

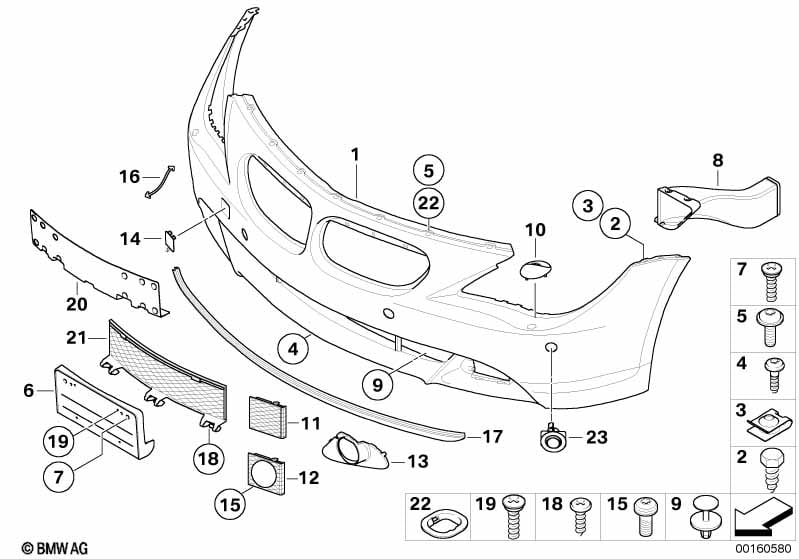

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 09/2007 | 51117115709 | $583.47 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PDC | 1 | 09/2007 | 51117115710 | $613.45 | +core | Shop at ECS Tuning | ||
| 02 | Sheet metal screw | ST 6,3 X 25 | 2 | 09/2007 | 07119904935 | $0.53 | Shop at ECS Tuning | |||
| 03 | Body nut | ST 6,3 | 2 | 09/2007 | 07146974736 | $0.38 | Shop at ECS Tuning | |||
| 03 | Body nut | ST6,3-4 ZNS3 | 2 | 09/2007 | 07147144276 | $0.47 | Shop at ECS Tuning | |||
| 04 | Fillister head screw | 4 | 09/2007 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | ISA M6X18 SW | 7 | 09/2007 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 06 | Licence plate base primed | 1 | 09/2007 | 51117115711 | $39.42 | +core | Shop at ECS Tuning | |||
| 07 | Fillister head screw | TS5X20 | 2 | 09/2007 | 07146986938 | $0.45 | Shop at ECS Tuning | |||
| 08 | Front left brake air duct | 1 | 09/2007 | 51117051485 | $28.30 | Shop at ECS Tuning | ||||
| 08 | Front right brake air duct | 1 | 09/2007 | 51117051486 | $28.30 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | BASALTGRAU HELL | 6 | 09/2007 | 51497054361 | $0.57 | Shop at ECS Tuning | |||
| 10 | Cover, primed, left | 1 | 09/2007 | 51117115707 | $12.35 | Shop at ECS Tuning | ||||
| 10 | Cover, primed, right | 1 | 09/2007 | 51117115708 | $12.35 | Shop at ECS Tuning | ||||
| 11 | Grid lateral, bottom | 2 | 09/2007 | 51117008823 | $34.75 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control or BMW Night Vision |
S541A=Yes S611A=Yes |
|||||||||
| 11 | Grid lateral, bottom | 1 | 09/2007 | 51117008823 | $34.75 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 12 | Grid lateral, bottom right | ACC | 1 | 09/2007 | 51117069506 | $14.60 | Shop at ECS Tuning | |||
| 13 | Cover, fog lamp, left | 1 | 09/2007 | 51117055525 | $14.42 | Shop at ECS Tuning | ||||
| 13 | Cover, fog lamp, right | 1 | 09/2007 | 51117055526 | $14.42 | Shop at ECS Tuning | ||||
| 14 | Flap, towing eye, primed | 1 | 09/2007 | 51117115705 | $12.39 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 15 | Torx-bolt with washer | M6X12 | 6 | 09/2007 | 07146985055 | $0.38 | Shop at ECS Tuning | |||
| For vehicles with Active cruise control |
S541A=No |
|||||||||
| 15 | Torx-bolt with washer | M6X12 | 8 | 09/2007 | 07146985055 | $0.38 | Shop at ECS Tuning | |||
| 16 | Holding strap | 1 | 09/2007 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 17 | Spoiler front | 1 | 09/2007 | 51117061355 | $23.18 | Shop at ECS Tuning | ||||
| 18 | Screw | 3 | 09/2007 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 19 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 2 | 09/2007 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| 20 | Drilling template | 1 | 09/2007 | 51117061365 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 21 | Grid, center | 1 | 09/2007 | 51117008820 | $34.75 | Shop at ECS Tuning | ||||
| 22 | Adjusting washer | 7 | 09/2007 | 51117163964 | $0.50 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 23 | Set of mounts for PDC sensor, front | PDC | 1 | 09/2007 | 51110007409 | $35.09 | +core | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 645Ci Trim cover, front?
- This technical diagram illustrates the Trim cover, front within the Vehicle trim group for the 6 Series E63 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Trim cover, bumper, primed, front (Part #51117115709).
- Which models use the hardware listed in this Trim cover, front?
- The hardware and components featured in the Trim cover, front are specific to the 6 Series E63 645Ci produced during 2005. These technical specifications ensure that parts like the Trim cover, bumper, primed, front (51117115709) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim cover, front assembly?
- Each item in the Trim cover, front corresponds to the numbered list below the illustration. For the 6 Series E63 645Ci, you can identify the Trim cover, bumper, primed, front by locating its position on the schematic, which then links to the official BMW part number 51117115709 for the Vehicle trim section.
