Trim cover, rear for BMW 6 Series E63 645Ci (2005)

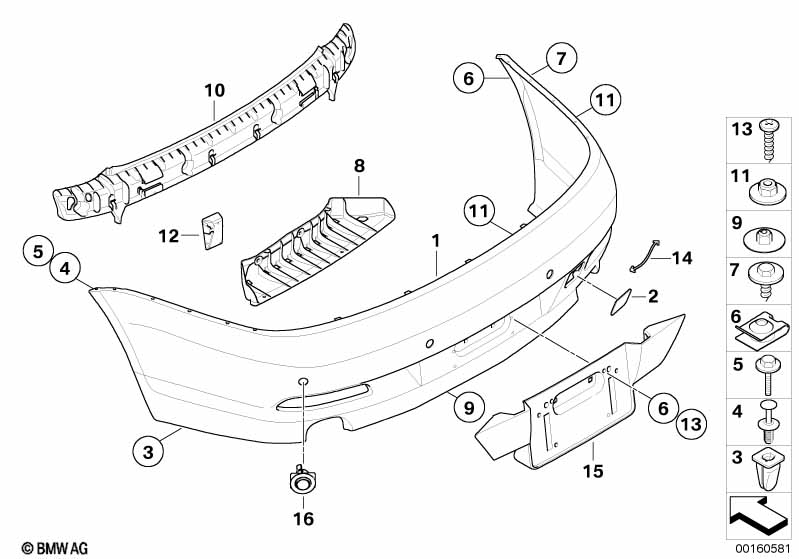

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 09/2007 | 51127078428 | $674.80 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 09/2007 | 51127078441 | $708.88 | +core | Shop at ECS Tuning | ||
| 02 | Flap, towing eye, primed | 1 | 09/2007 | 51127117899 | $12.39 | Shop at ECS Tuning | ||||
| 03 | Expanding nut | ST 4.8 | 2 | 09/2007 | 63121374075 | $0.23 | Shop at ECS Tuning | |||
| 04 | Expanding rivet | 6 | 09/2007 | 51127004445 | $0.33 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw for plastic | 2 | 09/2007 | 07149110670 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-9-ZNS3 | 8 | 09/2007 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 07 | Hex head screw | ST 4,8X18 SW8 | 4 | 09/2007 | 07147129161 | $0.25 | Shop at ECS Tuning | |||
| 08 | Guide, bottom center | 1 | 09/2007 | 51127056388 | $17.92 | Shop at ECS Tuning | ||||
| 09 | Body nut | D=18MM, ZNS-3 | 3 | 09/2007 | 07146949379 | $0.20 | Shop at ECS Tuning | |||
| 10 | Mount, bumper, rear center | 1 | 09/2007 | 51127038195 | $35.79 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 | 4 | 09/2007 | 51128400432 | $0.79 | Shop at ECS Tuning | |||
| 12 | Shock absorber, rear left | 1 | 09/2007 | 51127065357 | $2.37 | Shop at ECS Tuning | ||||
| 12 | Shock absorber, rear right | 1 | 09/2007 | 51127065358 | $2.37 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST4,8X20MM | 4 | 09/2007 | 07149144231 | $0.32 | Shop at ECS Tuning | |||
| 14 | Holding strap | 1 | 09/2007 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Licence plate adaptor, primed | 1 | 09/2007 | 51127133626 | $48.32 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 16 | Set of mounts for PDC sensor, rear | PDC | 1 | 09/2007 | 51120007410 | $33.21 | +core | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
