Roller sun vizor, rear door for BMW 5 Series E60 523i (2007)

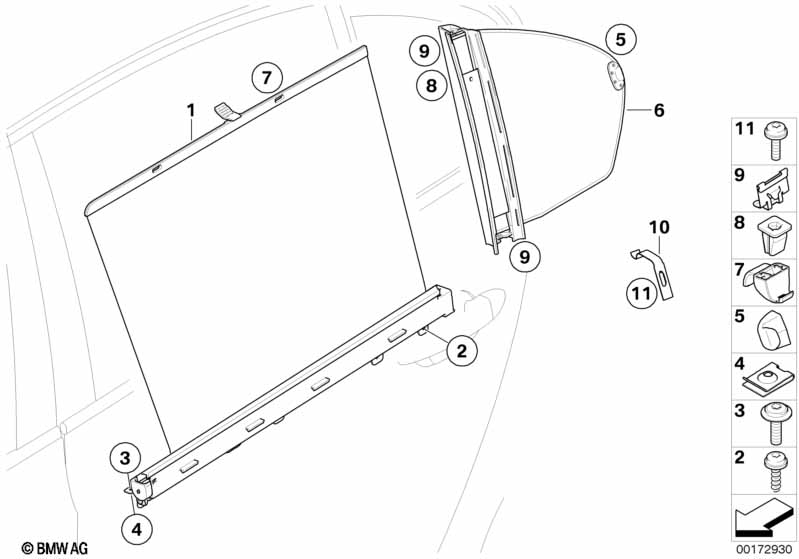

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door |
S416A=Yes S417A=Yes |
||||||||
| 01 | Left rear door sun blind | SCHWARZ | 1 | 05/2006 | 51359122637 | $219.79 | Shop at ECS Tuning | |||
| 01 | Right rear door sun blind | SCHWARZ | 1 | 05/2006 | 51359122638 | $219.79 | Shop at ECS Tuning | |||
| 02 | Fillister head screw | 5 | 07147120341 | $2.25 | Shop at ECS Tuning | |||||
| 03 | Screw | ST 4.8X13 | 2 | 07149156623 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-5 | 2 | 07129901652 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Fixed sun blind hook | SCHWARZ | 1 | 51167110585 | $4.51 | Shop at ECS Tuning | ||||
| 06 | Roller sun screen,triangular window left | SCHWARZ | 1 | 05/2006 | 51359122635 | $117.84 | ENDED | Shop at ECS Tuning | ||
| 06 | Sun blind, triangular window right | SCHWARZ | 1 | 05/2006 | 51359122636 | $117.84 | Shop at ECS Tuning | |||
| 07 | Side window sun blind hook | SCHWARZ | 6 | 51168193949 | $2.78 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | 2 | 51161943152 | $0.50 | Shop at ECS Tuning | |||||
| 09 | Clamp | 8 | 51427071120 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Left sun blind support | 1 | 51354335957 | $8.38 | Shop at ECS Tuning | |||||
| 10 | Right sun blind support | 1 | 51354335958 | $8.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
