Edge protector / Trim for entry for BMW 5 Series E60 525i (2007)

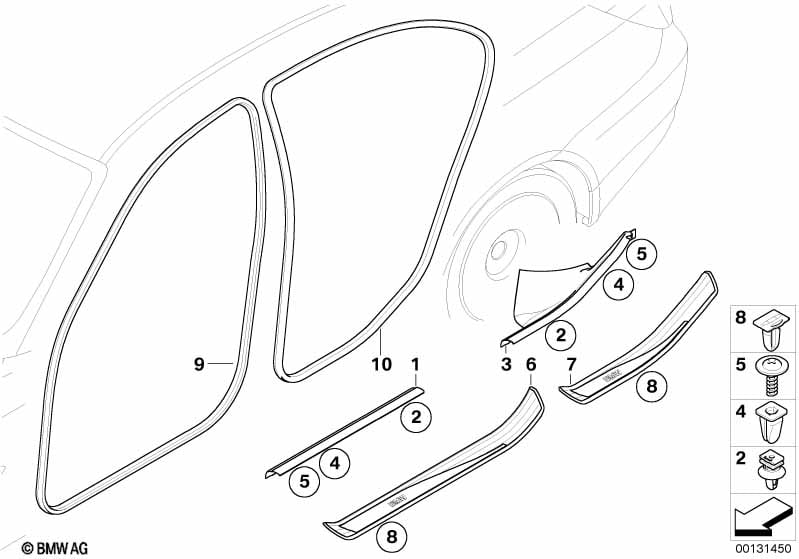

This Edge protector / Trim for entry technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Cover plate, entry sill, inner front | TRÜFFELBRAUN | 2 | 51477111195 | $10.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Cover plate, entry sill, inner front | BEIGE | 2 | 51477069515 | $10.70 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Cover plate, entry sill, inner front | GRAU | 2 | 51477110877 | $10.70 | Shop at ECS Tuning | ||||
| For vehicles with Stoff corner or Dinamica/leather or FULL LEATHER SPHERIC PERFORATED or indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or Dark blue or Tobacco or amethyst or kastanienbraun or Black |
CC=Yes GS=Yes NG=Yes A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes CU=Yes F1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 01 | Cover plate, entry sill, inner front | SCHWARZ | 2 | 51477066627 | $10.70 | Shop at ECS Tuning | ||||
| 02 | Clip with seal ring, beige | 8 | 51477117532 | $0.69 | Shop at ECS Tuning | |||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 03 | Cover molding, sill, inner rear left | CREMEBEIGE | 1 | 51476987021 | $12.13 | Shop at ECS Tuning | ||||
| 03 | Door sill cover strip inner rear right | CREMEBEIGE | 1 | 51476987022 | $12.13 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 03 | Cover molding, sill, inner rear left | TRÜFFELBRAUN | 1 | 51477111193 | $10.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Door sill cover strip inner rear right | TRÜFFELBRAUN | 1 | 51477111194 | $10.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 03 | Cover molding, sill, inner rear left | BEIGE | 1 | 51477069519 | $10.70 | Shop at ECS Tuning | ||||
| 03 | Door sill cover strip inner rear right | BEIGE | 1 | 51477069520 | $10.70 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 03 | Cover molding, sill, inner rear left | GRAU | 1 | 51477110871 | $10.70 | Shop at ECS Tuning | ||||
| 03 | Door sill cover strip inner rear right | GRAU | 1 | 51477110872 | $10.70 | Shop at ECS Tuning | ||||
| For vehicles with Stoff corner or Dinamica/leather or FULL LEATHER SPHERIC PERFORATED or indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or Dark blue or Tobacco or amethyst or kastanienbraun or Black |
CC=Yes GS=Yes NG=Yes A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes CU=Yes F1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 03 | Cover molding, sill, inner rear left | SCHWARZ | 1 | 51477066629 | $10.70 | Shop at ECS Tuning | ||||
| 03 | Door sill cover strip inner rear right | SCHWARZ | 1 | 51477066630 | $10.70 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | 2 | 52109143824 | $0.33 | Shop at ECS Tuning | |||||
| 06 | Front left entrance cover | SCHWARZ | 1 | 51477034303 | $32.08 | Shop at ECS Tuning | ||||
| 06 | Front right entrance cover | SCHWARZ | 1 | 51477034304 | $32.08 | Shop at ECS Tuning | ||||
| For vehicles with Entrance strips "BMW Individual" |
S778A=Yes |
|||||||||
| 06 | Front left entrance cover | INDIVIDUAL | 1 | 51477897229 | $68.21 | Shop at ECS Tuning | ||||
| 06 | Front right entrance cover | INDIVIDUAL | 1 | 51477897230 | $68.21 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 06 | M trim piece, front left entry | M | 1 | 51477898821 | $70.62 | ENDED | Shop at ECS Tuning | |||
| 06 | M trim piece, front right entry | M | 1 | 51477898822 | $70.62 | Shop at ECS Tuning | ||||
| 07 | Rear left entrance cover | SCHWARZ | 1 | 51477034305 | $25.62 | Shop at ECS Tuning | ||||
| 07 | Rear right entrance cover | SCHWARZ | 1 | 51477034306 | $25.62 | Shop at ECS Tuning | ||||
| 07 | M trim piece, rear left entry | M5 | 1 | 51477898819 | $74.51 | Shop at ECS Tuning | ||||
| 07 | M trim piece, rear right entry | M5 | 1 | 51477898820 | $74.51 | Shop at ECS Tuning | ||||
| For vehicles with Entrance strips "BMW Individual" |
S778A=Yes |
|||||||||
| 07 | Rear left entrance cover | INDIVIDUAL | 1 | 51477897243 | $57.51 | ENDED | Shop at ECS Tuning | |||
| 07 | Rear right entrance cover | INDIVIDUAL | 1 | 51477897244 | $57.51 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 07 | M trim piece, rear left entry | M | 1 | 51477898823 | $59.40 | Shop at ECS Tuning | ||||
| 07 | M trim piece, rear right entry | M | 1 | 51477898824 | $59.40 | Shop at ECS Tuning | ||||
| 08 | Clip Natur | L=13,2MM | 1 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Clip, yellow | L=11,2MM | X | 51478244458 | $0.35 | Shop at ECS Tuning | ||||
| 09 | Edge protection, door, front | 2 | 51727122433 | $53.08 | Shop at ECS Tuning | |||||
| 10 | Edge protection, door, rear | 2 | 51727122434 | $53.08 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
