Trim panel dashboard for BMW 6 Series E64 650i (2007)

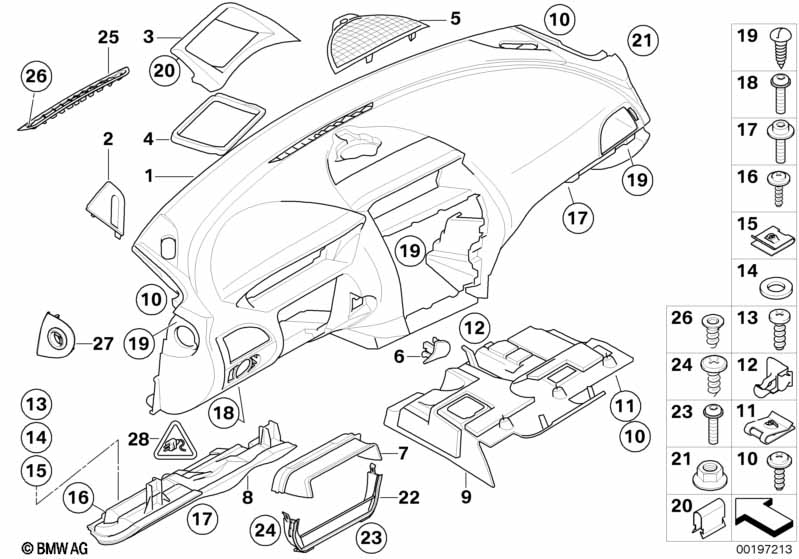

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 01 | Trim panel dashboard | SCHILF | 1 | 09/2005 | 51456967276 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau |
FCCH=Yes LCCH=Yes |
|||||||||
| 01 | Trim panel dashboard | CHATEAU | 1 | 09/2005 | 51456967274 | $1459.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/creambeige or Leather "Pearl/Precision"/creambeige |
LCGE=Yes LEGE=Yes |
|||||||||
| 01 | Trim panel dashboard | CREAMBEIGE | 1 | 09/2005 | 51456967275 | $1459.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Head-up display and Leather "Pearl/Precision"/schilf |
S610A=Yes LELF=Yes |
|||||||||
| 01 | Trim panel dashboard | SCHILF | 1 | 09/2005 | 51456967317 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Head-up display and Leather "Dakota"/creambeige or Leather "Pearl/Precision"/creambeige |
S610A=Yes LCGE=Yes LEGE=Yes |
|||||||||
| 01 | Trim panel dashboard | CREAMBEIGE | 1 | 09/2005 | 51456967316 | $1459.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Head-up display and Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau |
S610A=Yes FCCH=Yes LCCH=Yes |
|||||||||
| 01 | Trim panel dashboard | CHATEAU | 1 | 09/2005 | 51456967315 | $1459.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota" or Leather "Dakota" or Leather "Pearl/Precision" or Leather "Merino" |
FC=Yes LC=Yes LE=Yes LK=Yes |
|||||||||
| 01 | Trim panel dashboard | SCHWARZ | 1 | 09/2005 | 51459140615 | $1459.94 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover, warm air duct, left | SCHWARZ | 1 | 51457130449 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover, warm air duct, right | SCHWARZ | 1 | 51457130450 | $16.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover, warm air duct, left | CHATEAU 63 | 1 | 51457130451 | $16.05 | Shop at ECS Tuning | ||||
| 02 | Cover, warm air duct, right | CHATEAU 63 | 1 | 51457130452 | $16.05 | Shop at ECS Tuning | ||||
| 02 | Cover, warm air duct, left | SCHILF | 1 | 51457130453 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover, warm air duct, right | SCHILF | 1 | 51457130454 | $16.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 03 | Trim piece for head-up display | SCHWARZ | 1 | 09/2005 | 62307899729 | $85.04 | +core | Shop at ECS Tuning | ||
| For vehicles with Individual leather-covered dashboard and Head-up display |
S4M5A=Yes S610A=Yes |
|||||||||
| 03 | Trim piece for head-up display, leather | SCHWARZ | 1 | 09/2005 | 62307891192 | $291.40 | Shop at ECS Tuning | |||
| 04 | Gasket | 1 | 62306937959 | $26.57 | Shop at ECS Tuning | |||||
| 05 | Loudspeaker cover | SCHWARZ | 1 | 09/2005 | 51457899714 | $63.12 | +core | Shop at ECS Tuning | ||
| 06 | Decor cover for instrument panel, center | SCHWARZ | 1 | 09/2005 | 51457899710 | $21.40 | Shop at ECS Tuning | |||
| For vehicles with Individual leather-covered dashboard |
S4M5A=Yes |
|||||||||
| 06 | Decor cover for instrument panel, center | SCHWARZ | 1 | 51457892613 | $110.05 | Shop at ECS Tuning | ||||
| 07 | Steering column cover | SCHWARZ | 1 | 51457009281 | $56.87 | Shop at ECS Tuning | ||||
| 08 | Trim panel, active knee protector | SCHWARZ | 1 | 09/2005 | 51458040865 | $836.05 | +core | Shop at ECS Tuning | ||
| For vehicles with Individual leather-covered dashboard and Leather "Pearl/Precision"/creambeige or Leather "Pearl/Precision"/schilf or Leather "Pearl/Precision"/schwarz |
S4M5A=Yes LEGE=Yes LELF=Yes LESW=Yes |
|||||||||
| 08 | Trim panel, active knee protector | SCHWARZ | 1 | 09/2005 | 51458038502 | $1037.71 | ENDED | Shop at ECS Tuning | ||
| 09 | Trim panel foot controls | SCHWARZ | 1 | 09/2005 | 51457899719 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Trim panel foot controls | SCHWARZ | 1 | 09/2005 | 51457899721 | $195.89 | +core | Shop at ECS Tuning | ||
| For vehicles with Preparation f mobile phone cpl. USA/CDN |
S639A=Yes |
|||||||||
| 09 | Trim panel foot controls | SCHWARZ | 1 | 09/2005 | 51457899720 | $195.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Automatic transmission or Preparation f mobile phone cpl. USA/CDN |
S205A=Yes S639A=Yes |
|||||||||
| 09 | Trim panel foot controls | SCHWARZ | 1 | 09/2005 | 51457899722 | $195.89 | ENDED | Shop at ECS Tuning | ||
| 10 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 51457127921 | $1.29 | Shop at ECS Tuning | |||||
| 13 | Sheet metal screw | ST4,2X16MM | 8 | 07119904172 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8 | 51457146495 | $0.50 | Shop at ECS Tuning | |||||
| 15 | C-clip sheet metal nut | X | 07149128047 | $0.36 | Shop at ECS Tuning | |||||
| 16 | Torx bolt | ISA M6X14 | 8 | 07147130406 | $1.05 | Shop at ECS Tuning | ||||
| 17 | ISA screw | M6X18MM | 6 | 07129903977 | $1.54 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw with collar | 2,5X10MM | 4 | 07149110286 | $0.20 | Shop at ECS Tuning | ||||
| 19 | Fillister head self-tapping screw | ST4,2X17 | 6 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 20 | Clamp | 2 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 21 | Self-locking hex nut | M6 | 6 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 22 | Steering column cover, bottom | SCHWARZ | 1 | 51457125312 | $21.16 | Shop at ECS Tuning | ||||
| 23 | Fillister head self-tapping screw | ISA ST4.2X13 | 2 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Sheet metal screw | ST4,2X13 SW | 2 | 07119904186 | $0.18 | Shop at ECS Tuning | ||||
| 27 | Nozzle for door ventilation, left | SCHWARZ | 1 | 09/2005 | 51457899711 | $30.97 | +core | Shop at ECS Tuning | ||
| 27 | Nozzle for door ventilation, right | SCHWARZ | 1 | 09/2005 | 64227899712 | $30.97 | Shop at ECS Tuning | |||
| For vehicles with Passenger airbag deactivation Observe instructions in repair manual REP-RAE9161-6131038! |
S5DAA=Yes |
|||||||||
| 27 | Nozzle for door ventilation, right | SCHWARZ | 1 | 09/2005 | 51168040338 | Shop at ECS Tuning | ||||
| 28 | Socket housing | 1 | 61138380706 | $2.43 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Covering cap | 4 POL. SCHWARZ | 1 | 61136906533 | $0.88 | Shop at ECS Tuning | ||||
