Mounting parts, instr. panel for BMW 6 Series E64 650i (2007)

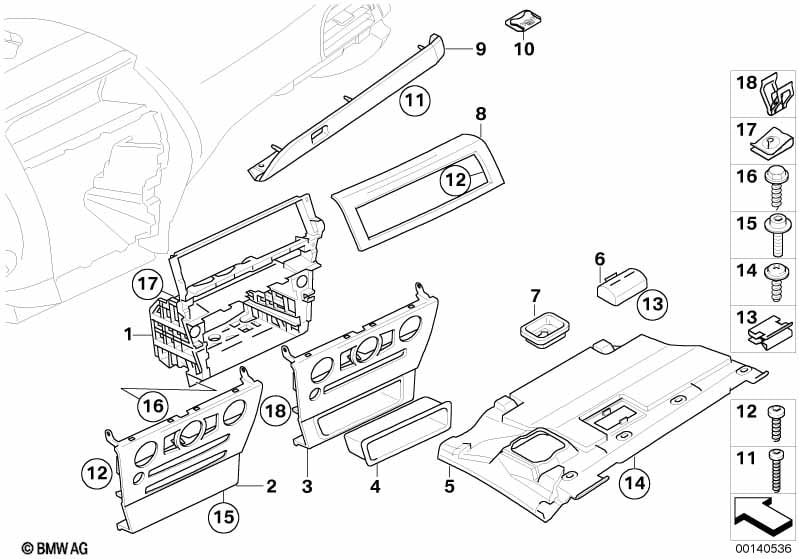

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instrument carrier, instrument panel | 1 | 09/2007 | 51457009284 | $62.27 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim and Navigation system Professional |
S437A=Yes S609A=Yes |
|||||||||
| 02 | Decor cover for instrument panel, center | BIRKE BEIGE | 1 | 51457073999 | $213.43 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers and Navigation system Professional |
S434A=Yes S609A=Yes |
|||||||||
| 02 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 51457073721 | $121.91 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim and Navigation system Professional |
S436A=Yes S609A=Yes |
|||||||||
| 02 | Decor cover for instrument panel, center | BIRKE GRAU | 1 | 51457073998 | $213.43 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 03 | Decor cover for instrument panel, center | BIRKE BEIGE | 1 | 51167120830 | $213.43 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 03 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 51457073722 | $121.91 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S436A=Yes |
|||||||||
| 03 | Decor cover for instrument panel, center | BIRKE GRAU | 1 | 51167120829 | $213.43 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Oddments tray | 2 | 51457072881 | $16.85 | +core | Shop at ECS Tuning | ||||
| 05 | Trim panel door entrance right | SCHWARZ | 1 | 09/2005 | 51457905234 | $84.24 | +core | Shop at ECS Tuning | ||
| 06 | Floor lamp cover | 2 | 51458166683 | $4.60 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 08 | Decor panel, fresh air grille, center | BIRKE BEIGE | 1 | 64227076028 | $219.01 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 08 | Decor panel, fresh air grille, center | RUTHENIUM | 1 | 09/2007 | 64227076023 | $115.99 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S436A=Yes |
|||||||||
| 08 | Decor panel, fresh air grille, center | BIRKE GRAU | 1 | 64227076027 | $219.01 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 09 | Decorative strip, dashboard right | BIRKE BEIGE | 1 | 51457074009 | $153.97 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 09 | Decorative strip, dashboard right | RUTHENIUM | 1 | 51457073723 | $130.67 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim |
S436A=Yes |
|||||||||
| 09 | Decorative strip, dashboard right | BIRKE GRAU | 1 | 51457074008 | $153.97 | ENDED | Shop at ECS Tuning | |||
| 10 | Slide rail-bracket bulkhead | 4 | 51457075910 | $2.17 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | 3 | 07147119497 | Shop at ECS Tuning | ||||||
| 12 | Fillister head self-tapping screw | ST4,2X12MM | 6 | 07149128048 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Clamp | 1 | 07149143792 | $0.57 | Shop at ECS Tuning | |||||
| 14 | Fillister head self-tapping screw | ST4,2X13-Z2 | 4 | 07119904171 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 15 | ISA screw | M6X18MM | 2 | 07129903977 | $1.54 | Shop at ECS Tuning | ||||
| 16 | ISA screw | M6X18MM | 2 | 07129903977 | $1.54 | Shop at ECS Tuning | ||||
| 17 | C-clip nut | 7 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 18 | Clamp | 4 | 07147132720 | $0.26 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
