Glove box with airbag for BMW 6 Series E63 645Ci (2005)

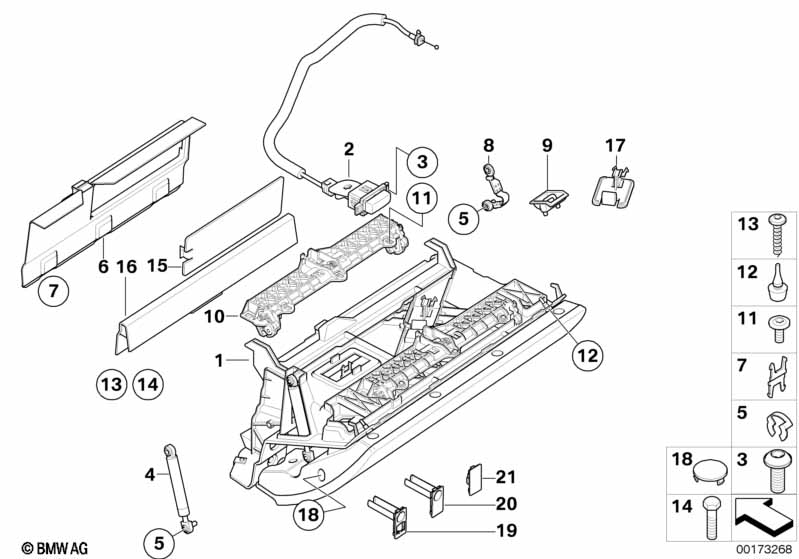

This Glove box with airbag technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit or Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau or Leather "Dakota"/creambeige or Leather "Dakota"/schwarz or Leather "Pearl/Precision"/creambeige or Leather "Pearl/Precision"/schilf or Leather "Pearl/Precision"/schwarz |
FCAT=Yes FCCH=Yes LCCH=Yes LCGE=Yes LCSW=Yes LEGE=Yes LELF=Yes LESW=Yes |
|||||||||
| 01 | Glove box vinyl | BASALTGRAU | 1 | 09/2005 | 51167131747 | $734.67 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Key button f glove box | RUTHENIUM | 1 | 02/2005 | 09/2007 | 51166958193 | $86.29 | ENDED | Shop at ECS Tuning | |
| 03 | Screw for thermoplastic plastics | 4X10 T20 | 1 | 07147118899 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Glove box damper | 1 | 51167002385 | $21.72 | Shop at ECS Tuning | |||||
| 05 | Axial securing clip | 4 | 07129905714 | $1.03 | Shop at ECS Tuning | |||||
| 06 | Cover, power distribution box | 1 | 51167009310 | $5.20 | Shop at ECS Tuning | |||||
| 07 | Hinge, glove box | 3 | 51431945178 | $1.95 | Shop at ECS Tuning | |||||
| 08 | Catch strap, glove box | 1 | 51167002386 | $4.23 | Shop at ECS Tuning | |||||
| 09 | Cover, catch bracket | 2 | 51167029754 | $2.25 | Shop at ECS Tuning | |||||
| 10 | Glove box locking mechanism | 1 | 51166958222 | $48.56 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt with washer | ISA M5X10 | 5 | 07149128051 | $0.63 | Shop at ECS Tuning | ||||
| 12 | Rubber buffer | 2 | 51168244385 | $1.13 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST4,2X17 | 4 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 14 | ISA screw | M6X18MM | 2 | 07129903977 | $1.54 | Shop at ECS Tuning | ||||
| 15 | Cover, fuse carrier | 1 | 51167114806 | $7.00 | Shop at ECS Tuning | |||||
| 16 | Covering glove box | 1 | 51167130884 | $8.79 | Shop at ECS Tuning | |||||
| 17 | Cover | 1 | 51167131248 | $8.79 | Shop at ECS Tuning | |||||
| 18 | Covering cap | 6 | 51167012812 | $0.54 | Shop at ECS Tuning | |||||
| 21 | Blind plate, hand lamp | 1 | 51168161589 | $0.85 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 645Ci Glove box with airbag?
- This technical diagram illustrates the Glove box with airbag within the Vehicle trim group for the 6 Series E63 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Glove box vinyl (Part #51167131747).
- Which models use the hardware listed in this Glove box with airbag?
- The hardware and components featured in the Glove box with airbag are specific to the 6 Series E63 645Ci produced during 2005. These technical specifications ensure that parts like the Glove box vinyl (51167131747) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box with airbag assembly?
- Each item in the Glove box with airbag corresponds to the numbered list below the illustration. For the 6 Series E63 645Ci, you can identify the Glove box vinyl by locating its position on the schematic, which then links to the official BMW part number 51167131747 for the Vehicle trim section.
