Trunk trim panel for BMW 5 Series E60 530i (2007)
This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| with dividing net | ||||||||||
| 01 | Panel wheel housing part.trunk right | 1 | 51477024858 | $43.81 | Shop at ECS Tuning | |||||
| without dividing net | ||||||||||
| 01 | Panel wheel housing part.trunk left | 1 | 51477024857 | $43.81 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 01 | Panel wheel housing part.trunk left | 1 | 51479165747 | $43.81 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Unmasked official vehicle and Patrol vehicle, camouflaged Official vehicle |
S185A=Yes S186A=Yes |
|||||||||
| 01 | Panel wheel housing part.trunk left | 1 | 51477134643 | $48.09 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Bracket, trunk trim panel, left | 1 | 51477128895 | $22.60 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Floor carpet, luggage compartment | 1 | 51477024879 | $64.44 | Shop at ECS Tuning | |||||
| 05 | Holding strap | 1 | 51478256162 | $5.60 | Shop at ECS Tuning | |||||
| 06 | Insert velour | 1 | 51477024886 | $54.75 | Shop at ECS Tuning | |||||
| 07 | Left base | 1 | 51477057386 | $17.14 | Shop at ECS Tuning | |||||
| 08 | Pad floor carpet, luggage compartment | 1 | 02/2004 | 51477151493 | $22.60 | Shop at ECS Tuning | ||||
| 09 | Push-button | SCHWARZ | 2 | 51477119118 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Right TRUNK TRIM | 1 | 51477057382 | $87.79 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 10 | Right TRUNK TRIM | 1 | 51477134634 | $137.35 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with TV function and Navigation system Professional and HiFi System Professional DSP and Individual audio system and Country-specific equipment Taiwan 04825 and Vehicle without TV function |
S601A=No S609A=Yes S677A=No S752A=No S8LTA=No S8S7A=No |
|||||||||
| 10 | Left trunk trim | 1 | 51477058153 | $87.79 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version China and TV function and Navigation system Professional and HiFi System Professional DSP and Individual audio system with oddments tray |
L802A=Yes L807A=Yes L8AAA=Yes S601A=Yes S609A=Yes S677A=Yes S752A=Yes |
|||||||||
| 10 | Left trunk trim | 1 | 51477122193 | $87.79 | ENDED, +core | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 51477074480 | $32.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Oddments tray | 1 | 51477074479 | $11.30 | Shop at ECS Tuning | |||||
| For vehicles with TV function or Rear display screen or HiFi System Professional DSP or DVD changer |
S601A=Yes S603A=Yes S677A=Yes S696A=Yes |
|||||||||
| 13 | Slide-in compartment, left | 1 | 51477136229 | $11.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function or Rear display screen or Navigation system Professional or HiFi System Professional DSP or DVD changer |
S601A=Yes S603A=Yes S609A=Yes S677A=Yes S696A=Yes |
|||||||||
| 13 | Left oddments tray | 1 | 51478230573 | $11.20 | Shop at ECS Tuning | |||||
| 14 | Push-button | 4 | 51471945266 | $0.55 | Shop at ECS Tuning | |||||
| 15 | Lock insert | 4 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 16 | Pad, trunk floor, left | 1 | 51477060045 | $6.73 | Shop at ECS Tuning | |||||
| 16 | Pad, trunk floor, right | 1 | 51477060046 | $6.73 | Shop at ECS Tuning | |||||
| 17 | Luggage comp.indentation trim panel | 1 | 51477071698 | $54.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 18 | Pad | H=28MM D=65MM | 1 | 51471930956 | $3.37 | Shop at ECS Tuning | ||||
| 19 | Partition support,luggage comp.indentat. | 1 | 51477132300 | $5.60 | ENDED | Shop at ECS Tuning | ||||
| 20 | Luggage comp.indentation partition | 4 | 51477076688 | $5.60 | Shop at ECS Tuning | |||||
| 21 | Hex nut | 8X8MM | 1 | 07129905185 | $0.53 | Shop at ECS Tuning | ||||
| 22 | Tie-down ring | 2 | 51477068930 | $7.87 | Shop at ECS Tuning | |||||
| 23 | Cover, fastening loop | 2 | 51477068931 | $1.25 | Shop at ECS Tuning | |||||
| 24 | Torx bolt | ISA M8X19 | 2 | 52108161962 | $0.46 | Shop at ECS Tuning | ||||
| 25 | Loading sill cover | 1 | 51477024863 | $32.08 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading system or Plug-in socket 12V |
S465A=Yes |
|||||||||
| 25 | Loading sill cover | 1 | 51477077792 | $32.08 | Shop at ECS Tuning | |||||
| 26 | Sheet metal screw | ST3,5X13 SW | 3 | 07119904309 | $0.73 | Shop at ECS Tuning | ||||
| 27 | Grommet | 12X6,3 | 3 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 28 | Cover lid | 1 | 51478232583 | $1.67 | Shop at ECS Tuning | |||||
| 29 | Plug | SCHWARZ | 2 | 51718208355 | $0.26 | Shop at ECS Tuning | ||||
| 30 | Cap | SCHWARZ | 2 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 31 | Trunk lid trim panel | 1 | 51497034263 | $54.75 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 31 | Trunk lid trim panel | 1 | 51497072070 | $54.75 | +core | Shop at ECS Tuning | ||||
| 32 | Expanding rivet | 14 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 33 | First-aid kit, case, black | 1 | 51498270015 | Shop at ECS Tuning | ||||||
| 34 | Pad floor carpet, luggage compartment | 2 | 02/2004 | 51477151493 | $22.60 | Shop at ECS Tuning | ||||
| 35 | Fillister head screw | 2 | 52109143824 | $0.33 | Shop at ECS Tuning | |||||
| 36 | Expanding nut | 7X7 MM | 2 | 02/2004 | 65138387414 | $0.47 | Shop at ECS Tuning | |||
| 37 | Parcel net | 1 | 51476951788 | $20.56 | Shop at ECS Tuning | |||||
| 38 | Clip | 2 | 51476951789 | $4.92 | ENDED | Shop at ECS Tuning | ||||
| 39 | Circlip | 2 | 72161858017 | $0.10 | Shop at ECS Tuning | |||||
| 40 | Fixing clamp | 2 | 51477133423 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 41 | Luggage compartment tensioning straps | 1 | 71108045545 | $61.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530i Trunk trim panel?

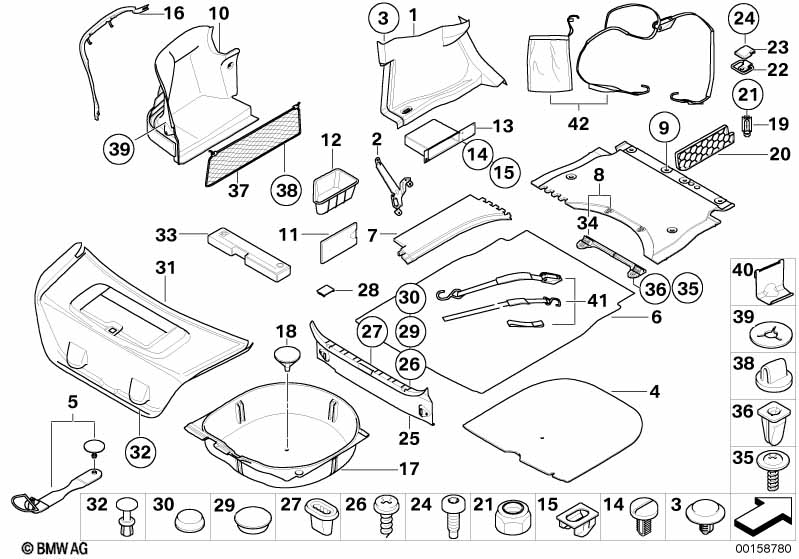

- This technical diagram illustrates the Trunk trim panel within the Vehicle trim group for the 5 Series E60 530i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Panel wheel housing part.trunk right (Part #51477024858).
