Cup holder for BMW 5 Series E60 525i (2005)

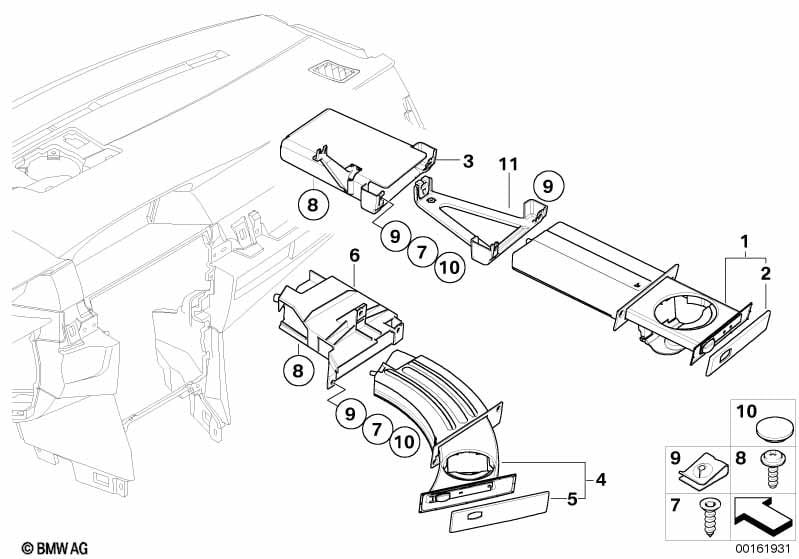

This Cup holder technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Cup holder |
S442A=Yes |
||||||||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or grey or anthracite or Portland natural brown or beige 3 or cream-beige/schwarz or Dark blue or Tobacco or cream-beige or gray/black or natur-braun or nepal-silber or tabak/schwarz or amethyst or kastanienbraun or Black or trüffel-braun |
A7=Yes A8=Yes A9=Yes AD=Yes AT=Yes B1=Yes BA=Yes CC=Yes CU=Yes F1=Yes GE=Yes GS=Yes NG=Yes NS=Yes NT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 01 | Cup holder, outer | SCHWARZ | 1 | 51459125626 | $85.63 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | Cup holder, outer | BASALTGRAU | 1 | 51457063181 | $85.63 | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or grey or anthracite or Portland natural brown or beige 3 or cream-beige/schwarz or Dark blue or Tobacco or cream-beige or gray/black or natur-braun or nepal-silber or tabak/schwarz or amethyst or kastanienbraun or Black or trüffel-braun |
A7=Yes A8=Yes A9=Yes AD=Yes AT=Yes B1=Yes BA=Yes CC=Yes CU=Yes F1=Yes GE=Yes GS=Yes NG=Yes NS=Yes NT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 02 | Cup holder, outer | SCHWARZ | 1 | 51459125626 | $85.63 | Shop at ECS Tuning | ||||
| 03 | Carrier, cup holder, interior | SCHWARZ | 1 | 51459123492 | $16.40 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 04 | Cup holder, inner | BASALTGRAU | 1 | 51457063167 | $85.63 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Amaretta Reflex" or indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or beige 3 or Dark blue or Tobacco or cream-beige or tabak/schwarz or amethyst or kastanienbraun or Black or trüffel-braun |
AD=Yes A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes BA=Yes CU=Yes F1=Yes GE=Yes NT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 04 | Cup holder, inner | SCHWARZ | 1 | 51459125622 | $85.63 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 05 | Cup holder, inner | BASALTGRAU | 1 | 03/2007 | 51457063167 | $85.63 | Shop at ECS Tuning | |||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or beige 3 or amethyst or kastanienbraun or Black or trüffel-braun |
A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes BA=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 05 | Cup holder, inner | SCHWARZ | 1 | 03/2007 | 51459125622 | $85.63 | Shop at ECS Tuning | |||
| 06 | Carrier, cup holder, interior | 1 | 51459185140 | Shop at ECS Tuning | ||||||
| 07 | Csk.lenshead screw | ISA | X | 07147116375 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 08 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 09 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 10 | Cover, threaded fastener f cupholder | 4 | 51457139726 | $0.22 | Shop at ECS Tuning | |||||
| 11 | Carrier, cup holder, interior | SCHWARZ | 1 | 51459123492 | $16.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
