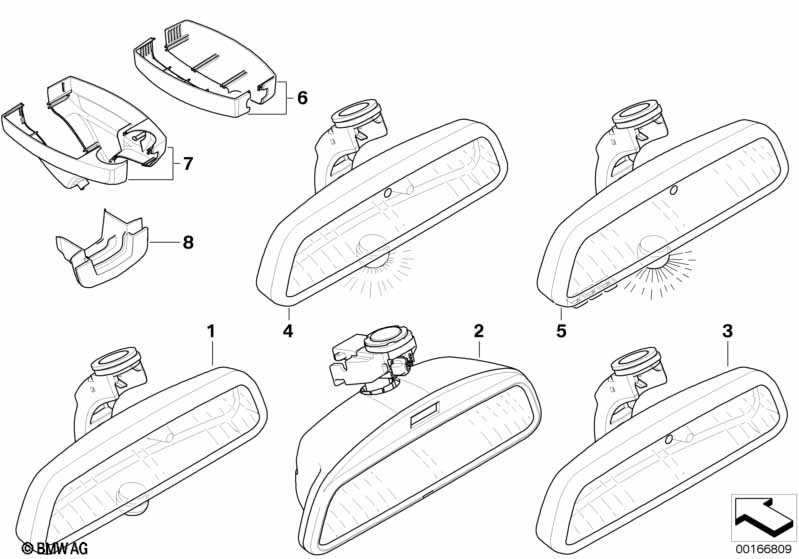

Interior mirror for BMW 5 Series E61 525d (2007)
This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| For vehicles with Integrated universal remote control and Interior mirror with automatic-dip |
S319A=No S431A=No |
|||||||||
| 01 | Rearview mirror, manual / LED | 1 | 51169218046 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=Yes S123A=No S302A=Yes S319A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=Yes S123A=No S302A=Yes S319A=No S431A=No S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=Yes S123A=No S302A=No S319A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=Yes S123A=No S302A=No S319A=No S431A=No S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=No S123A=No S302A=Yes S319A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=No S123A=No S302A=Yes S319A=No S431A=No S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior mirror with automatic-dip and High-beam assistant |
L8AAA=No S123A=No S302A=No S319A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with High-beam assistant and Lane departure warning |
S5ACA=Yes S5ADA=Yes |
|||||||||
| 04 | Rearview mirror EC / LED / FLA / TLC | 1 | 51169159094 | $844.23 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Interior mirror with automatic-dip and Interior/outside mirror with auto dip |
S302A=Yes S431A=Yes S430A=Yes |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 51169134416 | $253.27 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior mirror with automatic-dip and Interior/outside mirror with auto dip |
S302A=Yes S431A=Yes S430A=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 51169134416 | $253.27 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=Yes S431A=Yes S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=Yes S431A=Yes S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=Yes S431A=No S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=Yes S431A=No S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=No S431A=Yes S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=No S431A=Yes S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=Yes S319A=No S430A=No S431A=No S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=Yes S431A=Yes S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=Yes S431A=Yes S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=Yes S431A=No S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=Yes S431A=No S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=No S431A=Yes S5ACA=Yes S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Lane departure warning |
S123A=No S302A=No S319A=No S430A=No S431A=Yes S5ACA=No S5ADA=No |
|||||||||
| 04 | Rearview mirror EC / LED / FLA | 1 | 51169159089 | $390.15 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S430A=Yes S431A=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S430A=Yes S431A=No |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S430A=No S431A=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Alarm system |
S319A=Yes S430A=Yes S431A=Yes S302A=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Alarm system |
S319A=Yes S430A=Yes S431A=No S302A=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Alarm system |
S319A=Yes S430A=No S431A=Yes S302A=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO / remote | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S319A=Yes S430A=Yes S431A=Yes S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S319A=Yes S430A=Yes S431A=No S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S319A=Yes S430A=No S431A=Yes S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Alarm system |
S319A=Yes S430A=Yes S431A=Yes S5ACA=Yes S302A=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Alarm system |
S319A=Yes S430A=Yes S431A=No S5ACA=Yes S302A=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant and Alarm system |
S319A=Yes S430A=No S431A=Yes S5ACA=Yes S302A=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and High-beam assistant and Lane departure warning and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S5ACA=Yes S5ADA=Yes S430A=Yes S431A=Yes |
|||||||||
| 05 | Rearview mirror EC/LED /GTO/FLA/TLC | 1 | 51169159092 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and High-beam assistant and Lane departure warning and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S5ACA=Yes S5ADA=Yes S430A=Yes S431A=No |
|||||||||
| 05 | Rearview mirror EC/LED /GTO/FLA/TLC | 1 | 51169159092 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and High-beam assistant and Lane departure warning and Interior/outside mirror with auto dip and Interior mirror with automatic-dip |
S319A=Yes S5ACA=Yes S5ADA=Yes S430A=No S431A=Yes |
|||||||||
| 05 | Rearview mirror EC/LED /GTO/FLA/TLC | 1 | 51169159092 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S319A=Yes S430A=Yes S431A=Yes S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S319A=Yes S430A=Yes S431A=No S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S319A=Yes S430A=No S431A=Yes S5ACA=Yes |
|||||||||
| 05 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169159121 | Shop at ECS Tuning | |||||
| 07 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167076129 | $13.17 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary inside mirror and High-beam assistant and Lane departure warning and Head-up display |
S123A=No S5ACA=Yes S5ADA=No S610A=Yes |
|||||||||
| 07 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167161083 | $3.94 | Shop at ECS Tuning | ||||
| For vehicles with Lane departure warning |
S5ADA=Yes |
|||||||||
| 08 | Cable duct | 1 | 51169133468 | $6.82 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
