Trim panel leg room for BMW 5 Series E60 LCI 523i (2008)

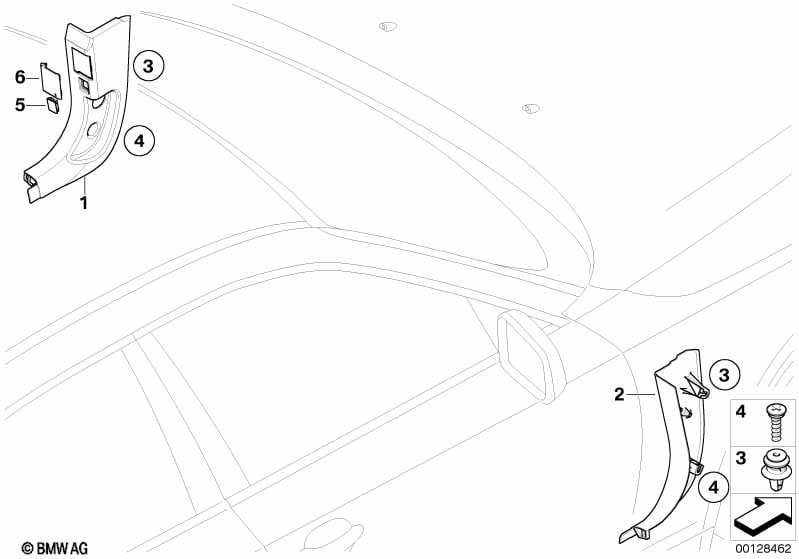

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front right | CREMEBEIGE | 1 | 51476987058 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Lateral trim panel front right | BEIGE | 1 | 51437077518 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Lateral trim panel front right | GRAU | 1 | 51437110876 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Lateral trim panel front right | TRÜFFELBRAUN | 1 | 51437111188 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 01 | Lateral trim panel front right | SCHWARZ | 1 | 51437077516 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 02 | Lateral trim panel front left | BEIGE | 1 | 51437077517 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 02 | Lateral trim panel front left | CREMEBEIGE | 1 | 51476987057 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | Lateral trim panel front left | GRAU | 1 | 51437110875 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 02 | Lateral trim panel front left | TRÜFFELBRAUN | 1 | 51437111187 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 02 | Lateral trim panel front left | SCHWARZ | 1 | 51437077515 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip Natur | X | 51437048911 | $0.55 | Shop at ECS Tuning | |||||
| 04 | Phillips screw f plastic material | TS 5X13 | X | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Cover | CREAMBEIGE | 1 | 51436957133 | $1.13 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 05 | Cover | BEIGE | 1 | 51437110833 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 05 | Cover | GRAU | 1 | 51437110878 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 05 | Cover | TRÜFFELBRAUN | 1 | 51437111196 | $1.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or indianapolis-rot or sepang-bronze hell or silverstone 2 or Portland natural brown or amethyst or kastanienbraun or Black |
AT=Yes A7=Yes A8=Yes A9=Yes B1=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 05 | Trim cover for button | SCHWARZ | 1 | 51437110827 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 06 | OBD plug cover | BEIGE | 1 | 51437135120 | $3.44 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 06 | OBD plug cover | CREAMBEIGE | 1 | 51476987060 | Shop at ECS Tuning | |||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 06 | OBD plug cover | GRAU | 1 | 51437135121 | $3.44 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 06 | OBD plug cover | TRUEFFELBRAUN | 1 | 51437135122 | $3.44 | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or Dark blue or Tobacco or natur-braun or amethyst or kastanienbraun or Black |
A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes CU=Yes F1=Yes NG=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 06 | OBD plug cover | SCHWARZ | 1 | 51437135119 | $3.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
