Sound insulating front for BMW 5 Series E60 530xi (2007)

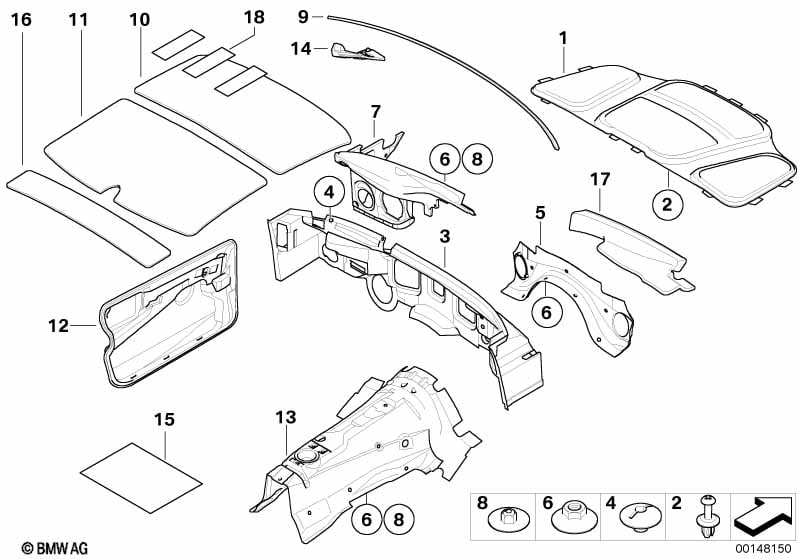

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51487148208 | $114.23 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D=7,5MM | 8 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Upper sound insulating dash panel | 1 | 51487009020 | ENDED | Shop at ECS Tuning | |||||
| 04 | Push-button, gray | 8 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 05 | Sound insulat.dash panel engine room ce. | 1 | 51487050667 | Shop at ECS Tuning | ||||||
| 06 | Push-button | D=30MM;H=13MM | X | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Nut | 1 | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 09 | Sound insulation f apron | L=1471MM | 1 | 51487009037 | $25.05 | Shop at ECS Tuning | ||||
| 10 | Sound insulating roof front | 1 | 51487066741 | $22.95 | Shop at ECS Tuning | |||||
| 11 | Sound insulating roof rear | 1 | 51487066742 | $22.95 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 11 | Sound insulating roof rear | 1 | 51487066743 | $8.02 | Shop at ECS Tuning | |||||
| 12 | Sound insulating door front left | 1 | 51487173981 | $28.67 | Shop at ECS Tuning | |||||
| 12 | Sound insulating door front right | 1 | 51487173982 | $28.67 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sound insulating tunnel front | 1 | 51487059593 | $152.88 | Shop at ECS Tuning | |||||
| 14 | Sealing windscreen-column A, bottom left | 1 | 51717136159 | $3.35 | Shop at ECS Tuning | |||||
| 14 | Sealing windscreen-column A,bottom right | 1 | 51717136160 | $3.35 | Shop at ECS Tuning | |||||
| 15 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 17 | Soundproofing | 1 | 51457130977 | $9.13 | ENDED | Shop at ECS Tuning | ||||
| 17 | Soundproofing | 1 | 51457130978 | $6.85 | ENDED | Shop at ECS Tuning | ||||
| 18 | Sound absorber | 3 | 51487042897 | $6.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
