Sound insulating rear for BMW 5 Series E61 LCI M5 (2010)

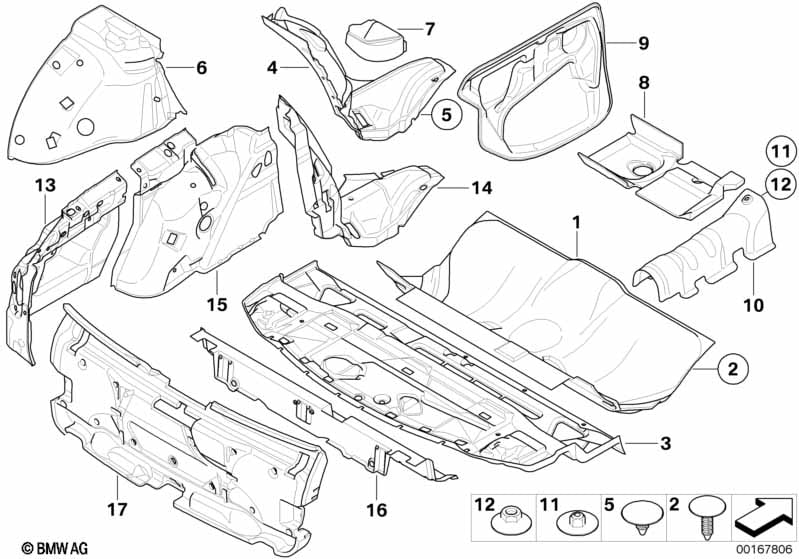

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation floor rear | 1 | 51487039405 | $78.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Plug-in retainer | SCHWARZ | 4 | 51487117545 | $0.61 | Shop at ECS Tuning | ||||
| 03 | Sound insulation for upper partit.trunk | 1 | 51487039413 | $69.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Front left sound insulatng wheel housing | 1 | 51487039411 | $45.65 | ENDED | Shop at ECS Tuning | ||||
| 04 | Front rght sound insulatng wheel housing | 1 | 51487039412 | $45.65 | Shop at ECS Tuning | |||||
| 06 | Sound insulation trunk left | 1 | 51487024897 | $33.91 | Shop at ECS Tuning | |||||
| 06 | Sound insulation trunk right | 1 | 51487024898 | $33.91 | Shop at ECS Tuning | |||||
| 07 | Sound insulation, spring strut, left | 1 | 51487074481 | $11.47 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulation, spring strut, right | 1 | 51487074482 | $11.47 | Shop at ECS Tuning | |||||
| 08 | Sound insulation, subwoofer, left | 1 | 51487039407 | $17.20 | Shop at ECS Tuning | |||||
| 08 | Sound insulation, subwoofer, right | 1 | 51487039408 | $17.20 | Shop at ECS Tuning | |||||
| 09 | Sound insulating door rear left | 1 | 51487033653 | $29.52 | Shop at ECS Tuning | |||||
| 09 | Sound insulating door rear right | 1 | 51487033654 | $29.52 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sound insulation, tunnel | 1 | 51487033724 | $46.27 | Shop at ECS Tuning | |||||
| 11 | Nut | 4 | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 12 | Push-button | D=30MM;H=13MM | 10 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 13 | Sound insulation, side panel, rear left | 1 | 51487050385 | $22.10 | Shop at ECS Tuning | |||||
| 13 | Sound insulation, side panel, rear right | 1 | 51487050386 | $21.32 | Shop at ECS Tuning | |||||
| 14 | Front left sound insulatng wheel housing | 1 | 51487050381 | $30.13 | Shop at ECS Tuning | |||||
| 14 | Front rght sound insulatng wheel housing | 1 | 51487050382 | $30.13 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound insulating wheel housing rear left | 1 | 51487050383 | $35.68 | Shop at ECS Tuning | |||||
| 15 | Sound insulating wheel housing rear rig. | 1 | 51487050384 | $35.68 | Shop at ECS Tuning | |||||
| 16 | Trunk cross member sound insulation | 1 | 51487050379 | $24.27 | Shop at ECS Tuning | |||||
| 17 | Sound insulating for trunk lid | 1 | 51487061431 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI M5 Sound insulating rear?
- This technical diagram illustrates the Sound insulating rear within the Vehicle trim group for the 5 Series E61 LCI M5 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation floor rear (Part #51487039405).
- Which models use the hardware listed in this Sound insulating rear?
- The hardware and components featured in the Sound insulating rear are specific to the 5 Series E61 LCI M5 produced during 2010. These technical specifications ensure that parts like the Sound insulation floor rear (51487039405) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating rear assembly?
- Each item in the Sound insulating rear corresponds to the numbered list below the illustration. For the 5 Series E61 LCI M5, you can identify the Sound insulation floor rear by locating its position on the schematic, which then links to the official BMW part number 51487039405 for the Vehicle trim section.
