Carrier instrument panel for BMW 5 Series E61 525i (2005)

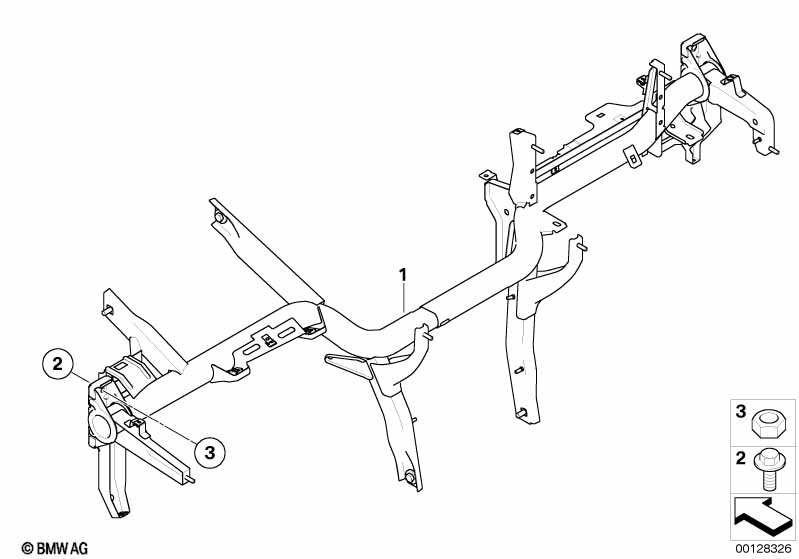

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting tube | 1 | 51717077124 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X20MM | 4 | 51717056831 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525i Carrier instrument panel?
- This technical diagram illustrates the Carrier instrument panel within the Vehicle trim group for the 5 Series E61 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Supporting tube (Part #51717077124).
- Which models use the hardware listed in this Carrier instrument panel?
- The hardware and components featured in the Carrier instrument panel are specific to the 5 Series E61 525i produced during 2005. These technical specifications ensure that parts like the Supporting tube (51717077124) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier instrument panel assembly?
- Each item in the Carrier instrument panel corresponds to the numbered list below the illustration. For the 5 Series E61 525i, you can identify the Supporting tube by locating its position on the schematic, which then links to the official BMW part number 51717077124 for the Vehicle trim section.
