Decorative strips for BMW 6 Series E64 630i (2007)

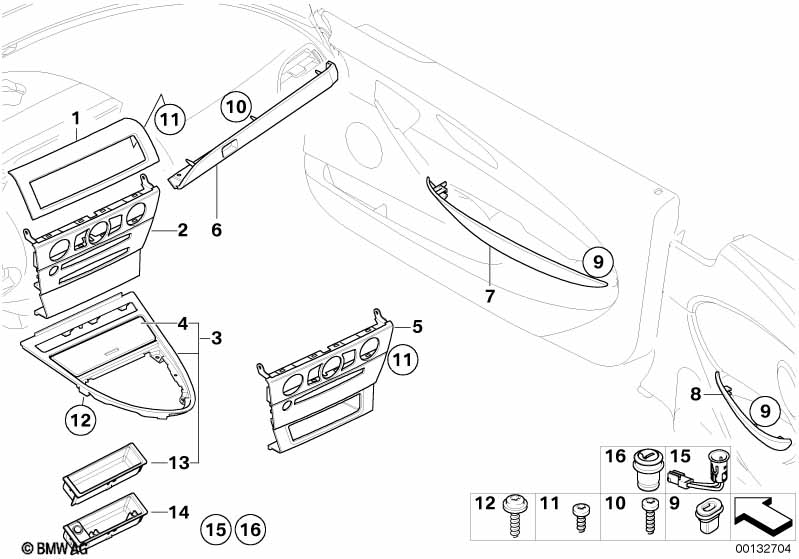

This Decorative strips technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 01 | Decor panel, fresh air grille, center | RUTHENIUM | 1 | 64227076023 | $115.99 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers and Navigation system Professional |
S434A=Yes S609A=Yes |
|||||||||
| 02 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 51457073721 | $121.91 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers |
S434A=Yes |
|||||||||
| 03 | Decor panel for centre console | RUTHENIUM | 1 | 51167076018 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Decor panel for ashtray | RUTHENIUM | 1 | 51167073645 | $30.14 | Shop at ECS Tuning | ||||
| 05 | Decor cover for instrument panel, center | RUTHENIUM | 1 | 51457073722 | $121.91 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Decorative strip, dashboard left | RUTHENIUM | 1 | 51457073724 | +core | Shop at ECS Tuning | ||||
| 07 | Decorative strip, door front left | RUTHENIUM | 1 | 51417116049 | $69.74 | Shop at ECS Tuning | ||||
| 07 | Decorative strip, door front right | RUTHENIUM | 1 | 51417116050 | $70.76 | Shop at ECS Tuning | ||||
| 08 | Decorative strip trim panel, rear left | RUTHENIUM | 1 | 51437115479 | $47.77 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Decorative strip trim panel, rear right | RUTHENIUM | 1 | 51437115480 | $47.77 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Plug-in retainer | X | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | 3 | 07147119497 | Shop at ECS Tuning | ||||||
| 11 | Fillister head self-tapping screw | ST4,2X12MM | 6 | 07149128048 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ISA ST4.2X13 | 6 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Storing partition front | 1 | 51168208369 | $18.21 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 14 | Front ashtray insert | 1 | 51168208722 | $18.21 | Shop at ECS Tuning | |||||
| 15 | Cigarette lighter socket | 2 POL. | 1 | 61346977681 | $12.75 | Shop at ECS Tuning | ||||
| 16 | Lighter element | 1 | 61349308246 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
